Wholesale TH-UV-0255 Strip-light Uv Led Water Purifier Tianhui Brand

UV Wavelength:

UVC270-280nm / UVA390-400nm

UV radiation flux:

10~ 15mW (Single lamp bead ) / 90~ 135mW ( One Strip light )

Rated voltage:

DC 24V

Wavelength:

270~280nm

Model:

TH-UV-0255 Strip-light

Inquiry

Product details of the uv led water purifier

Quick Detail

The whole design of Tianhui uv led water purifier is conducted by our professional and experienced team. The product has various quality attributes and high performance. uv led water purifier developed and produced by our company can be widely used in various industries and professional fields. Striving to improve and enhance the quality of uv led water purifier helps Tianhui win more clients.

Product Description

Our uv led water purifier are processed by the latest technology in the industry, and they perform better in the following details.

Description

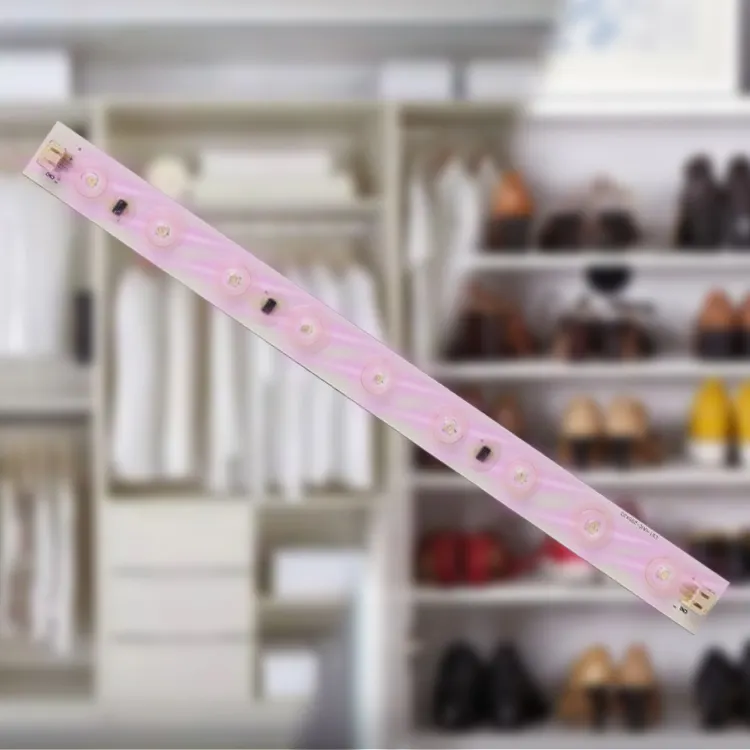

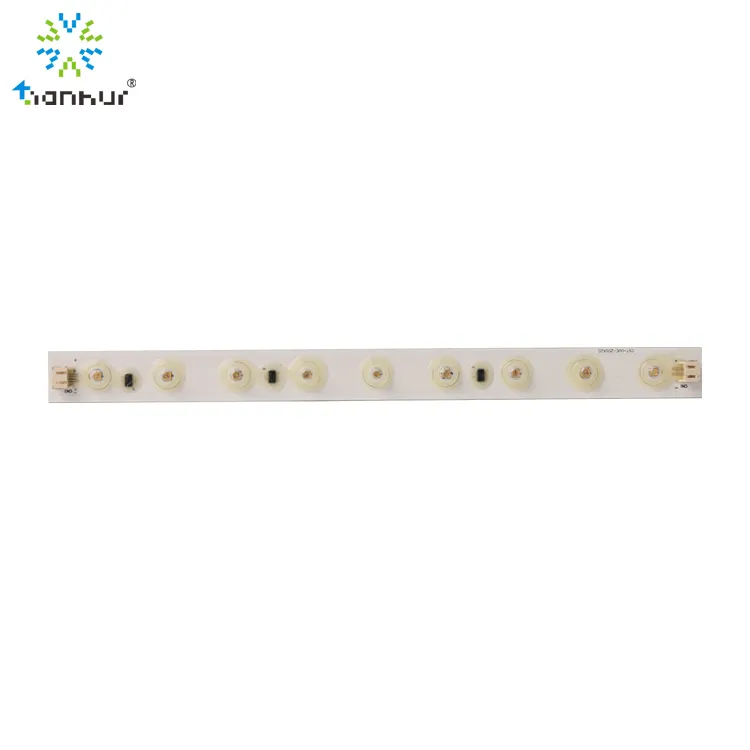

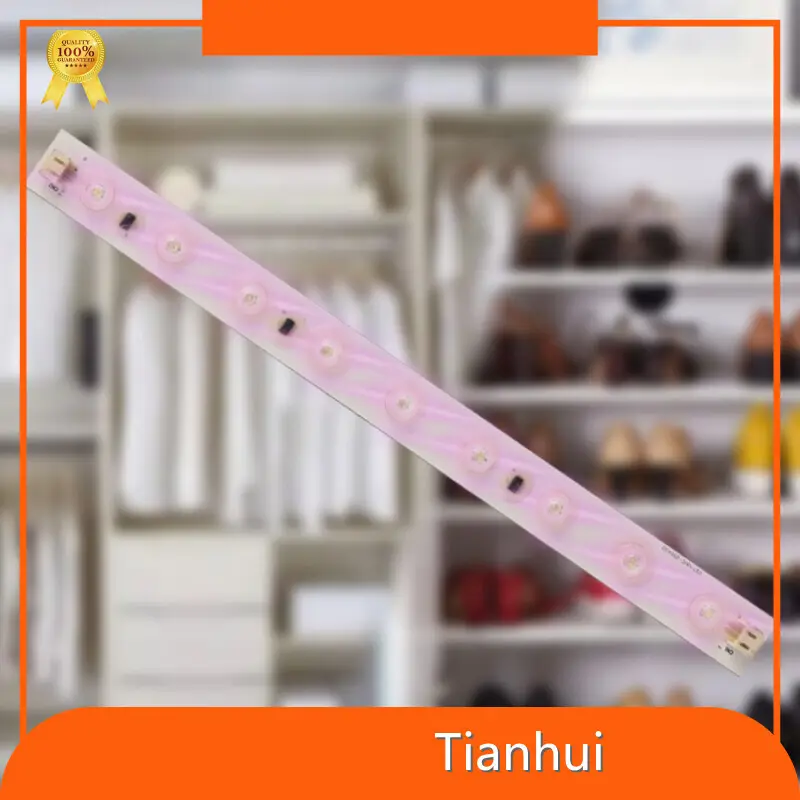

TH-UV-0255 strip- light is a light strip composed of 9 UVC light beads. Multiple light strips can be spliced.

The wavelength range of the UVC LED used is 270-280nm, which has excellent and efficient sterilization effect.

UV high permeable quartz lens is used on the surface to improve the effective utilization of UVC, which can significantly improve the bactericidal effect. All materials meet the environmental requirements of RoHS and Reach.

Application

Air conditioning

Air purifier

Parameters

Item	Specifications	Remark
Model	TH-UV-0255 Strip-light	-
Opening Hole size	-	-
Rated voltage	DC 24V	Customizable
UVC radiation flux	10~ 15mW (Single lamp bead )	90~ 135mW ( One Strip light )
UVC Wavelength	270~280nm	-
Input current	DC 300mA (On Strip light )	-
Input power	7.2W	-
Waterproof grade	IP65	-
Lamp bead life	8,000 Hours	L85
Dielectric Strength	DC500 V, 1min@10mA, leak current
Size
Net weight
Applicable water temperature	-25℃~40℃	-
Storage temperature	-40℃~85℃	-

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Advantages

As a company, Zhuhai Tianhui Electronic Co., Ltd. specializes in the production and processing of UV LED Module, UV LED System, UV LED Diode. Tianhui provides customers with professional, diversified and international service solutions, which allows customers to enjoy the superior service. Welcome customers to cooperate with us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
