Description
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Product details of the vehicle mounted uvc led air purifier
Product Overview
High quality material and independent design immensely raise the reputation for Tianhui. Our commitment to quality and performance is stressed in each phase of creating this product. Tianhui's vehicle mounted uvc led air purifier is widely used in the industry. The fame of Tianhui is widely increasing for its high quality vehicle mounted uvc led air purifier.
Product Introduction
Compared with other similar products, the outstanding advantages of our company's vehicle mounted uvc led air purifier is mainly reflected in the following points.
Description

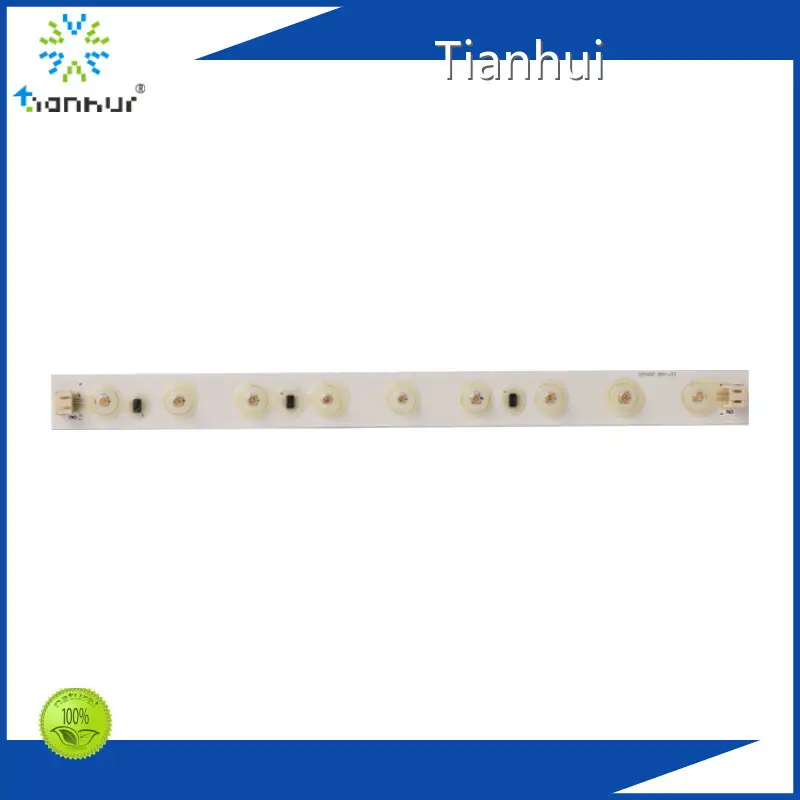

TH-UV-0255 strip- light is a light strip composed of 9 UVC light beads. Multiple light strips can be spliced.
The wavelength range of the UVC LED used is 270-280nm, which has excellent and efficient sterilization effect.
UV high permeable quartz lens is used on the surface to improve the effective utilization of UVC, which can significantly improve the bactericidal effect. All materials meet the environmental requirements of RoHS and Reach.
Application
Air conditioning | Air purifier |
Parameters
Item |
Specifications |
Remark |
Model |
TH-UV-0255 Strip-light |
- |
Opening Hole size |
- |
- |
Rated voltage |
DC 24V |
Customizable |
UVC radiation flux |
10~ 15mW (Single lamp bead ) |
90~ 135mW ( One Strip light ) |
UVC Wavelength |
270~280nm |
- |
Input current |
DC 300mA (On Strip light ) |
- |
Input power |
7.2W |
- |
Waterproof grade |
IP65 |
- |
Lamp bead life |
8,000 Hours |
L85 |
Dielectric Strength |
DC500 V, 1min@10mA, leak current |
|
Size |
|
|
Net weight |
|
|
Applicable water temperature |
-25℃~40℃ |
- |
Storage temperature |
-40℃~85℃ |
- |
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Introduction
Zhuhai Tianhui Electronic Co., Ltd. has been considered as a competitive manufacturer of vehicle mounted uvc led air purifier, with years of expertise in design and production. Our exquisite and quality products including vehicle mounted uvc led air purifier are well received by domestic and foreign customers. They are sold to many countries around the world, such as the USA, Australia, and Japan. We take environmental and energy-related problems into our consideration as early as the planning and development phases. In terms of water consumption, waste management, and energy conservation, we are working hard to achieve progress.
We have many years of experience in production and sales. And if you are interested in our products, feel free to contact us.
