Product details of the uvc module for bottle

Product Description

It is necessary for Tianhui to change with the fashions to design uvc module for bottle. We provide a stringent quality check of our products before delivery. The comprehensive properties make it can be used in wide applications.

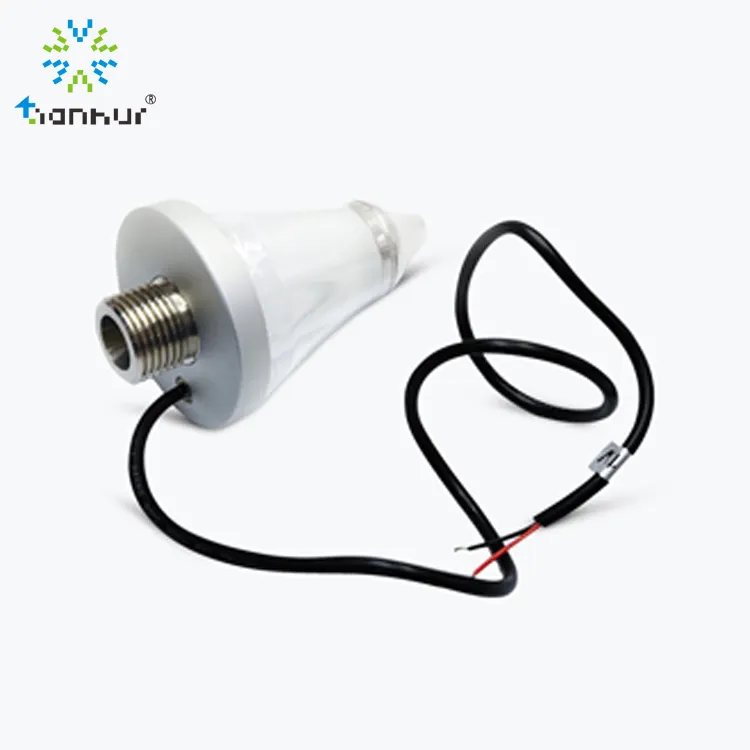

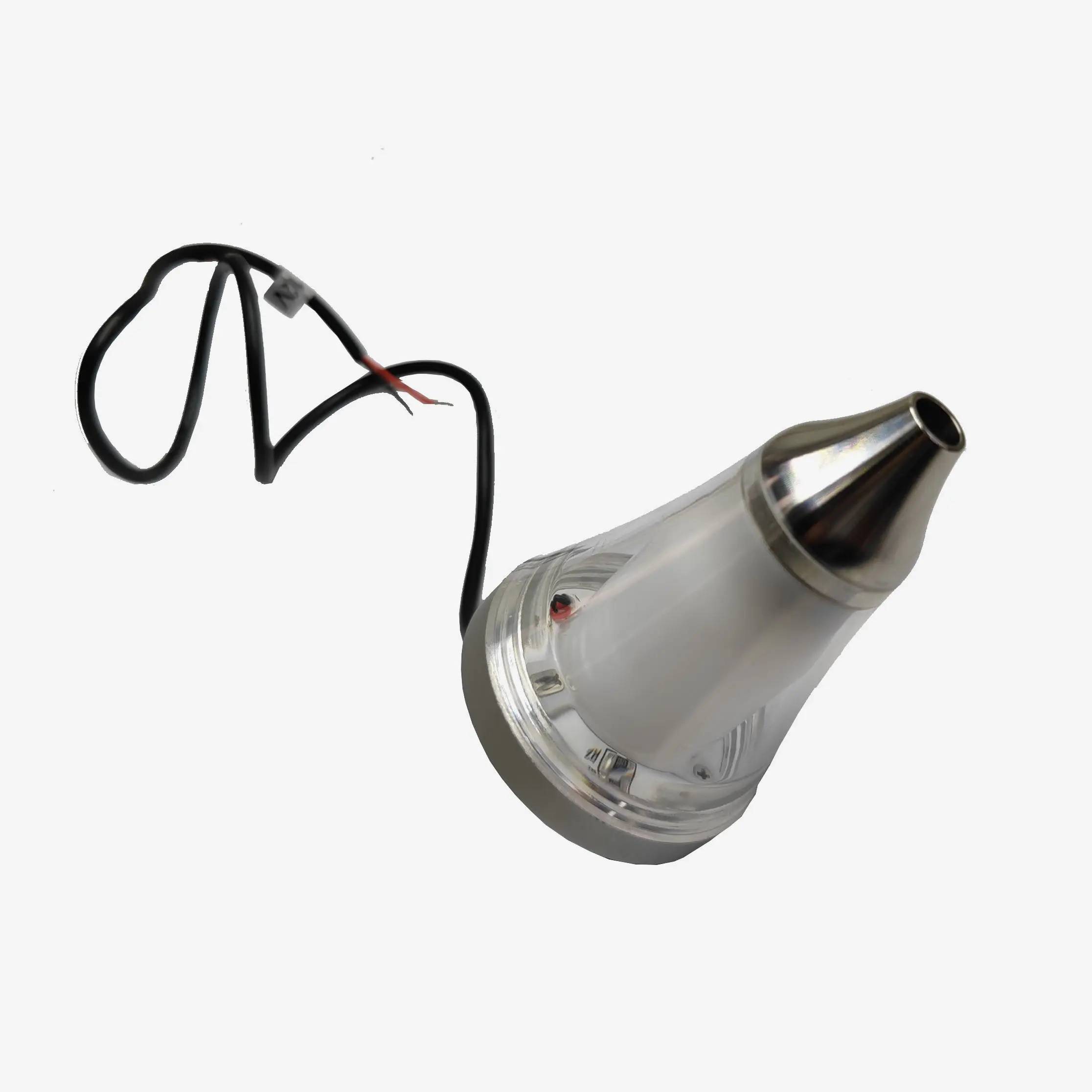

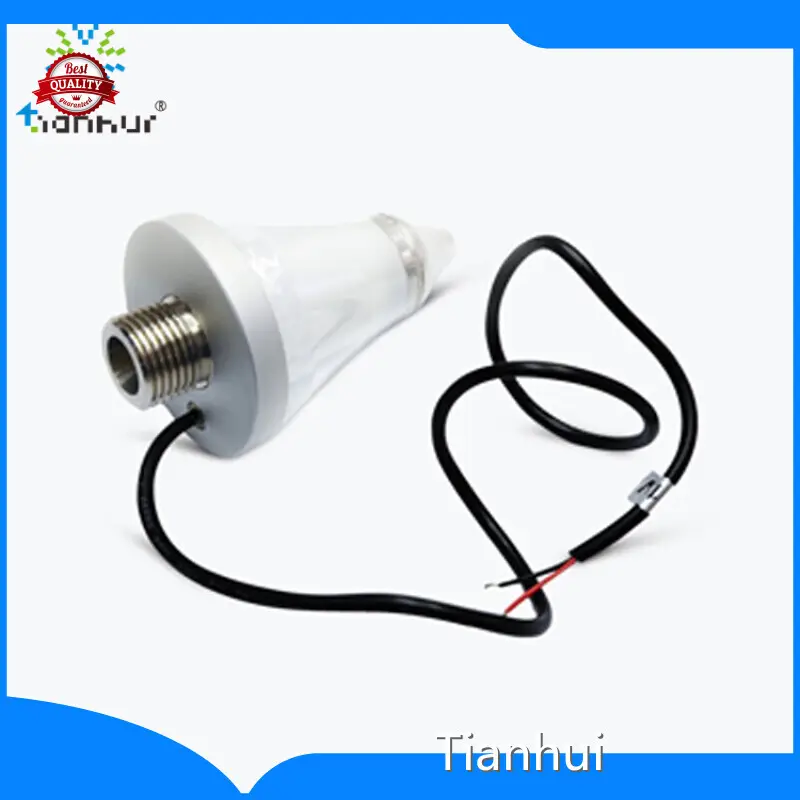

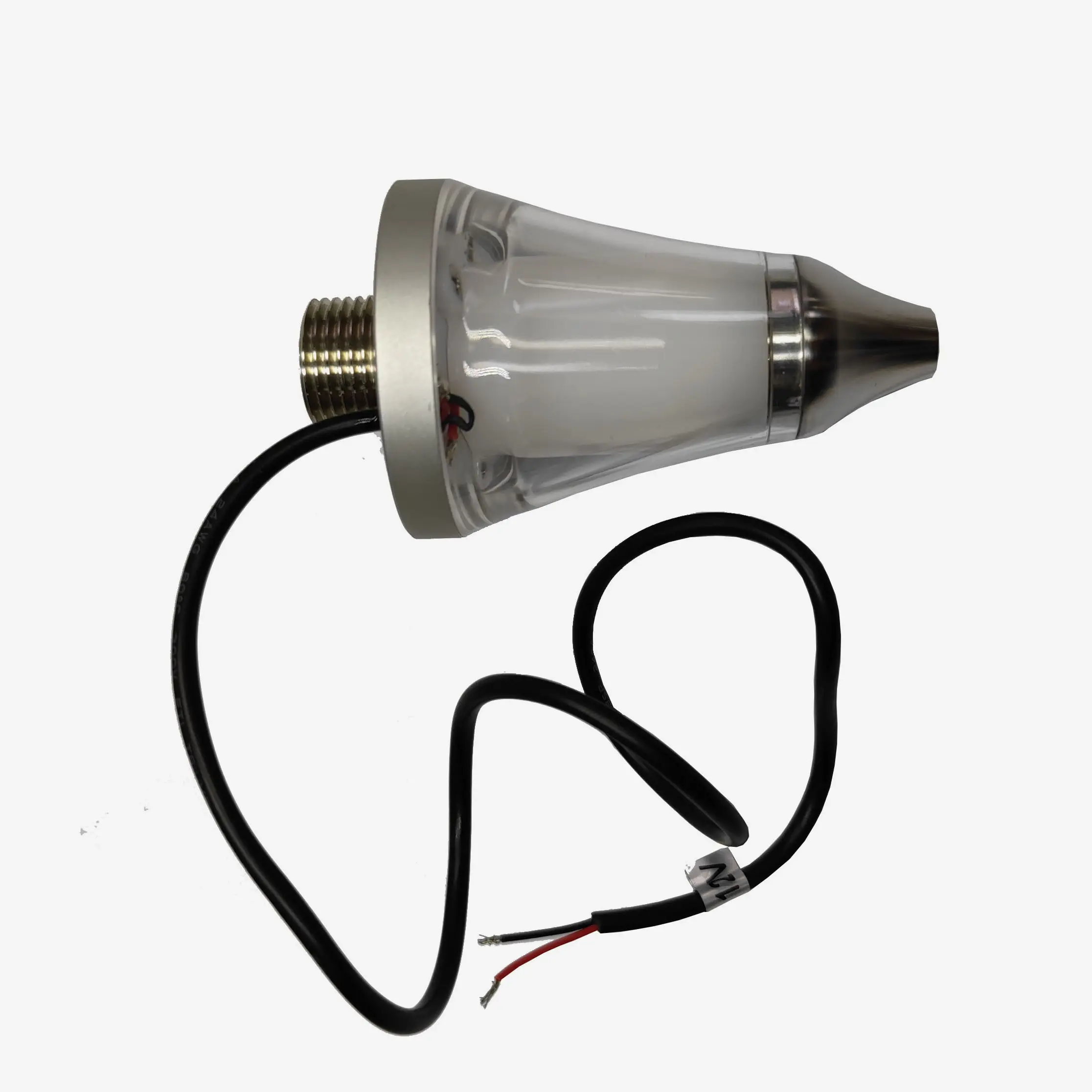

UV-C LED Flowing Water Sterilization Module

TH-UVC-SW01

Description

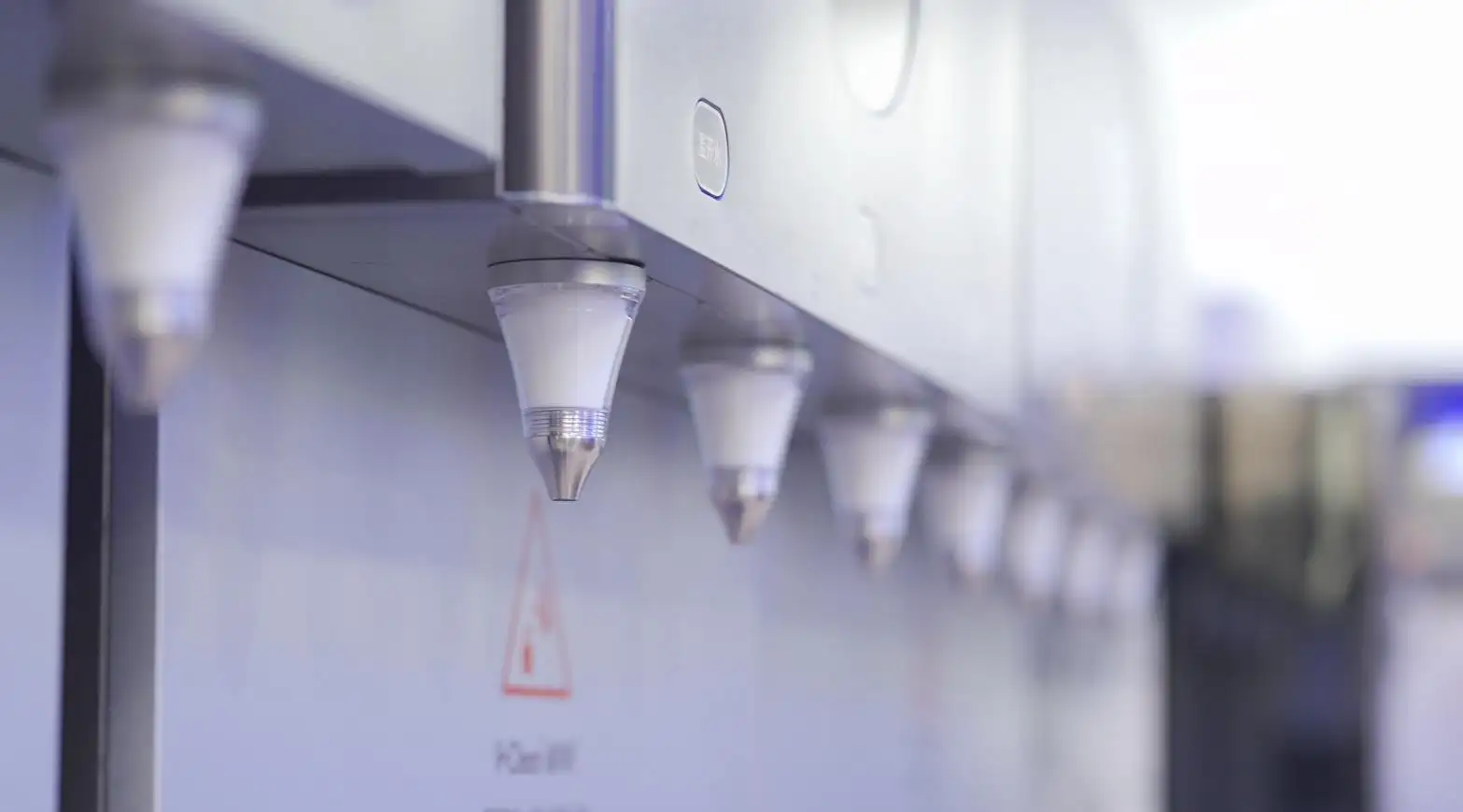

TH-UVC-SW01 is a UVC LED flowing water disinfection module(Faucet) applied for the water outlet of commercial water dispenser with self luminous effect.

Its UVC LED light source's wavelength range 270~280nm has excellent and efficient sterilization effect. The internal chamber is designed by high UVC refelectivity to increase the utilization of UV light and improve the sterilization effect.

In order to ensure the safety of drinking water, there is a special construction design of this UVC module which is able to prevent the plastic aging in maximum extent where the parts contact with water directly.

Feature

• Reference standard: QB/T 4827-
2015

• UVC LED (270-280nm)

• Gorgeous Lighting

- Built-in visible LED matched with transparent shell to enhance the awareness of users.

• Environmental friendly

- Compliant with RoHS and Reach

Application

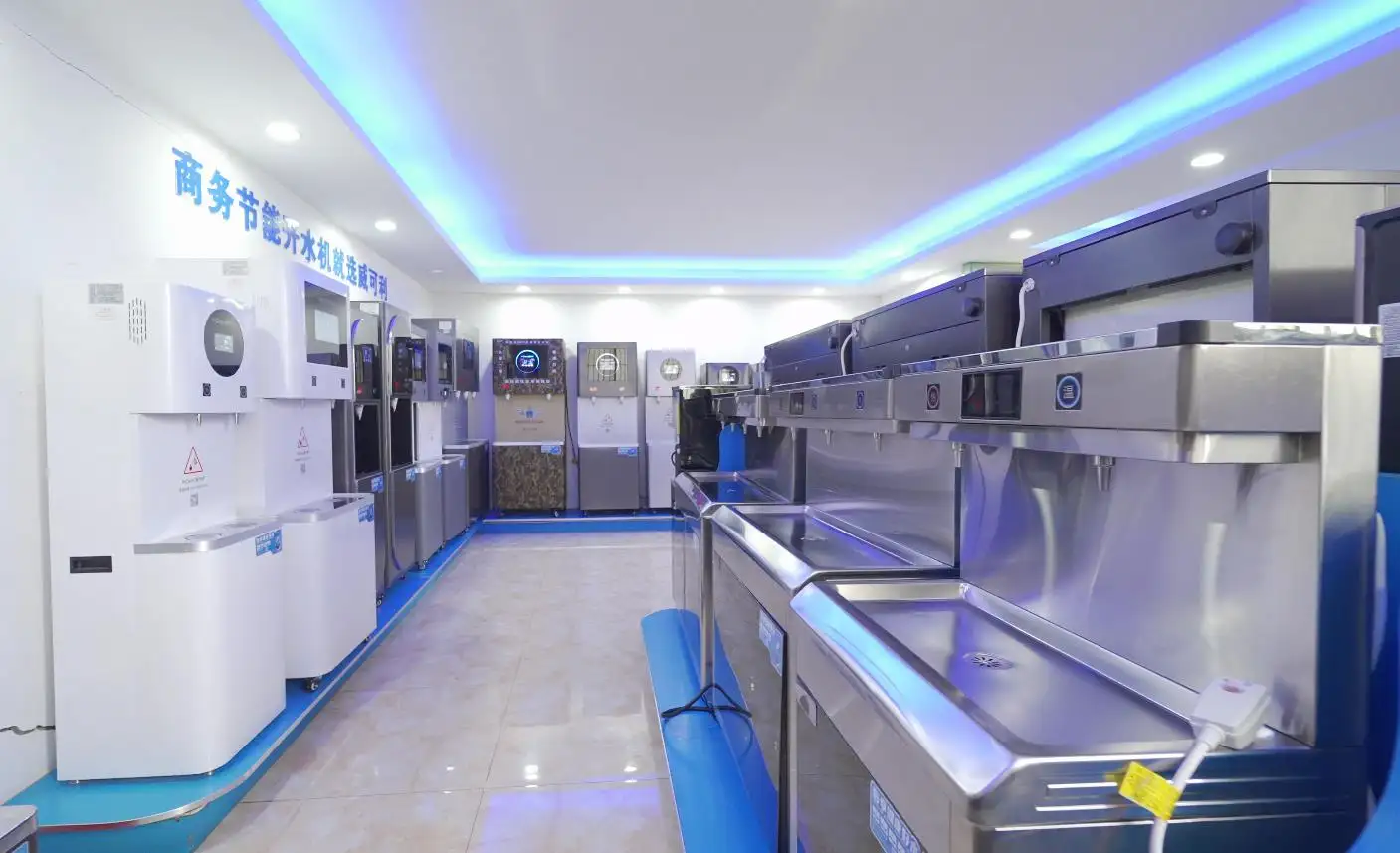

• Commercial Water Dispenser

• Drinking Machine

• Under the Kitchen Water Purifier

• Tea Bar Machine

Item	Specifications	Note
Part Number	TH-UVC-SW01
Connector of Water Inlet	G1/2 External Thread
Rated Voltage	DC 12V
UVC Radiant Power	≥90mW
UVC Wavelength	270~280nm
Sterilization Rate	≥99.9% (Escherichia Coli)	Under 2L/MIN
Input Current	340mA
Input Power	4W
Waterproof Level of Outer Shell	IP60
Appropriate Water Pressure	≤0.2MPa	Unconfined Module
Cables	UL2464#24AWG-2C
Connector	Customization	Customizable
LED Lifespan	10,000-25,000 hours	According to the LED model
Insulation and Voltage Resistance	DC500 V,1min@10mA, leakage current

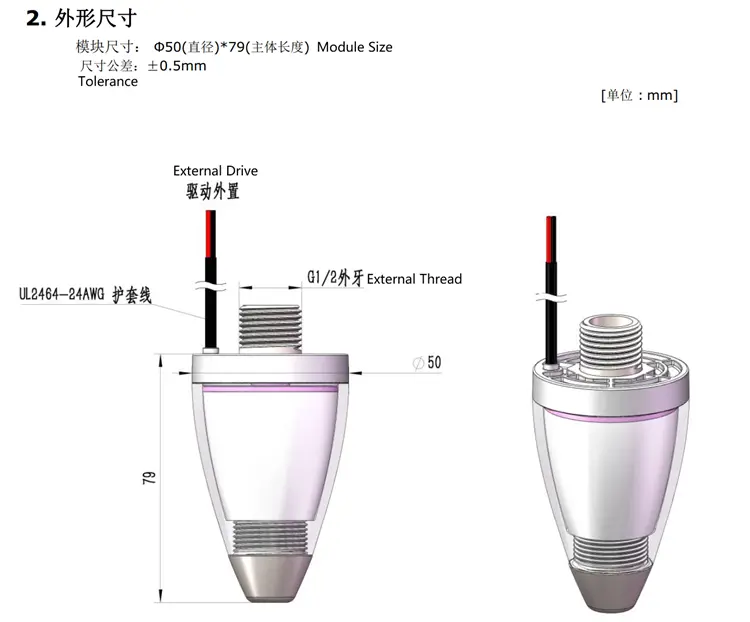

	Φ50(Diameter)*79(Body Length)
Net Weight	200±5g
Working Water Flow Rate	1.0~2.5L/min	The sterilization effect will be decreased when water flow rate is beyond 2L/MIN.
Appropriate Water Temperature	4℃-45℃
Storage Temperature	-40℃-85℃

Remarks
• The peak wavelength (λp) measurement tolerance is ±3nm.
• The measurement tolerance of radiant flux (Φe) is ±10%.
• The measurement tolerance of forward voltage (Vf) is ±3%.
