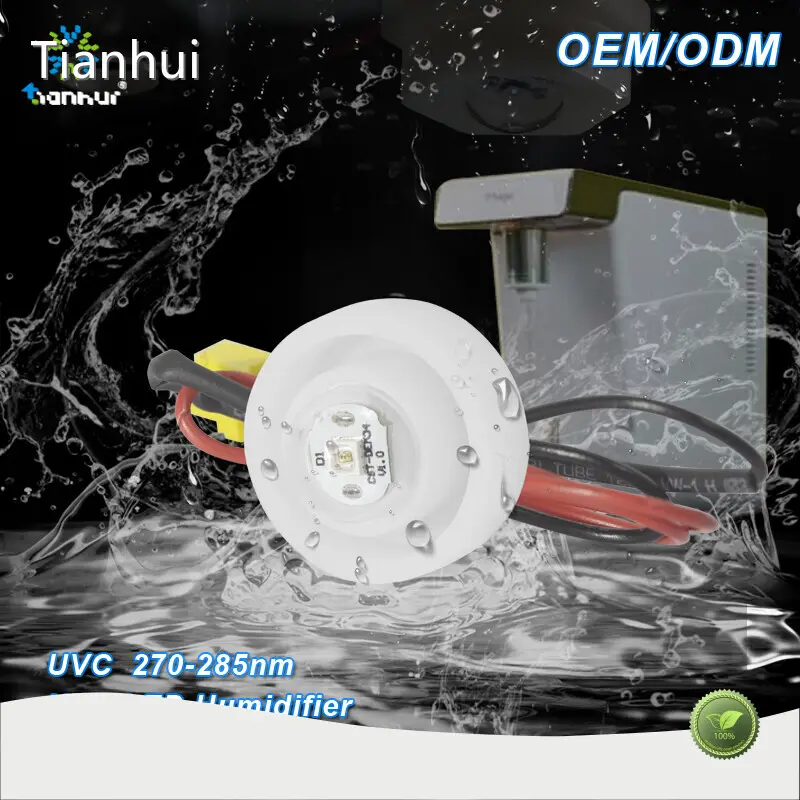

Uvc Led Wasser Dessinfection Module Tianhui ≥5mW 270-285nm Tianhui Brand

TH-UVC-DEM04 is a static UVC LED sterilization module for air and liquid. Applicable to sealed cavity structure with water tank. The UVC light emitting surface shall meet the waterproof requirements of IP67.

The UVC LED used had a wavelength range of 270- 285nm, It has excellent and efficient sterilization and disinfection effect.

The surface is a UV high permeable quartzlens, Improving the effective utilization rate of UVC, can significantly improve the sterilization effect.

All materials meet the environmental protection requirements of RoHS and Reach.

Application

这是一段描述

Drinking machine	Ice machine	Air humidifier
Air purifier	Pet water dispenser	Dishwasher

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UVC-DEM04	-
Rated voltage	DC 12V	Customizable
UVC radiation flux	≥5mW	-
UVC Wavelength	270-285nm	-
Input current	50±10mA	According to the lamp bead selection
Input power	0.6W	-
Waterproof grade	IP67	-
Wire rod	200±10mm	Customizable
Terminals	XHB2.54，2Pin，yellow	Customizable
Lamp bead life	>10,000 hours	-
Dielectric Strength	DC500 V,1min@10mA, Leakage current
Working temperature	-25℃-40℃	-
Storage temperature	-40℃-85℃	-

Remarks

这是一段描述

Peak wavelength（ λ p) The measurement tolerance is ±3nm.

Radiant flux（ Φ e) Measurement tolerance±10%.

The measurement tolerance of forward voltage (Vf) is±3%.

Overall dimension

这是一段描述

Packaging method (reference standard data)

这是一段描述

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Advantages

· The design of Tianhui uvc led wasser dessinfection module is original and appealing.

· It is of great commercial value. It can be used for covering huge open spaces with minimal intervention and minimal construction time.

· Zhuhai Tianhui Electronic Co., Ltd. helps customers choose the right uvc led wasser dessinfection module products and good solutions.

Company Features

· Tianhui concentrates on producing uvc led wasser dessinfection module and satisfying customers.

· Zhuhai Tianhui Electronic Co., Ltd. has created a modern production line with rigorous, serious and sincere attitude.

· The goal of our company is to become an innovative and distinctive manufacturing company. We will invest more in introducing advanced and high-tech manufacturing and developing facilities which can help us to broaden our product range.

Application of the Product

Tianhui's uvc led wasser dessinfection module is widely applicable in the industry.

Tianhui always adheres to the service concept of 'meeting customer needs'. And we are committed to providing customers with a one-stop solution that is timely, efficient and economical.

UV-C LED Wasser Desinfektion Module and Its Applications

UV-C LED Wasser Desinfektion Module is a water disinfection system that uses ultraviolet-C (UV-C) LED technology to kill bacteria, viruses, and other pathogens present in water. This module is a small, lightweight, and efficient device that can easily integrate into existing water treatment systems to provide clean and safe drinking water.

The module consists of a UV-C LED lamp and a quartz sleeve that surrounds it. When water passes through the quartz sleeve, the UV-C radiation emitted by the LED lamp disinfects the water by damaging the DNA of microorganisms, thus preventing them from reproducing and causing diseases.

The module is widely used in various applications, including residential and commercial water treatment systems, aquariums, and swimming pools. It is a cost-effective and environmentally friendly alternative to traditional water treatment methods that use chemicals like chlorine or ozone.

In residential applications, UV-C LED Wasser Desinfektion Module can be used to treat drinking water, well water, and other sources of water supplied to households. It provides an additional layer of protection against waterborne diseases and reduces the need for frequent maintenance and replacement of filters.

In commercial applications, the module is widely used in hotels, restaurants, and hospitals to ensure high-quality water supply and prevent the spread of infections.

In conclusion, UV-C LED Wasser Desinfektion Module is a cutting-edge technology that provides safe and effective water treatment solutions for both residential and commercial applications. Its cost-effectiveness, low-maintenance, and efficiency make it an ideal choice for anyone looking for a reliable water disinfection system.
