Uvc Led Air Purifier TH-UV-05 Uvc Led Air Purifier DC 9V~15V Company

Company Advantages

· The production of Tianhui uvc led air purifier is paid continuous and in-depth attention to meet customers' needs.

· It has good breathable performance. It has passed breathability testing by a full range of testing methods such as BS 7209, GB/T 12704.1, ASTM E96, and CNS 12222 L3223.

· The product has become a necessity for many industries. It brings enormous economic benefits by improving productivity and cutting costs.

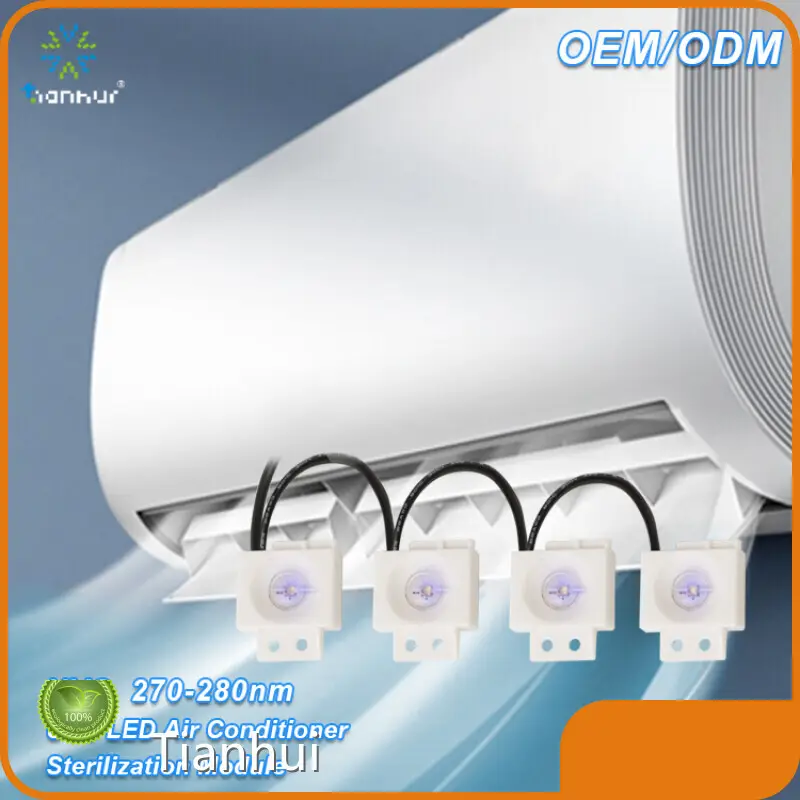

TH-UV-05(UVC) has two mounting holes on the side for screw mounting fixation, and multiple of this module can be connected in parallel, which is suitable for air inhibition of static UVC LED inhibition module.

The modules are compounded with IP68 waterproof requirements.

Use of UVC LED wavelength range of 270 ~ 280nm, with excellent and efficient sterilization disinfection effect, the surface is UV high-transmission quartz lens to improve the effective utilization of UVC, can significantly enhance the sterilization effect.

All materials are compounded with RoHS and Reach environmental requirements.

Application

这是一段描述

Air conditioning

Air purifier

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UV-05	-
Opening Hole size	-	-
Rated voltage	DC 12V±5％V	Customizable
UVC radiation flux	＞15mW (single module)	＞60mW (4 modules)
UVC Wavelength	270~280nm	-
Input current	80mA±10 (single module)	320mA±40 (4 modules)
Input power	0.96W	3.84W
Waterproof grade	-	-
Lamp bead life	-	-
Dielectric Strength
Size
Net weight
Applicable water temperature	-25℃~40℃	-
Storage temperature	-40℃~85℃	-

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Features

· In the uvc led air purifier industry, Zhuhai Tianhui Electronic Co., Ltd. is a pioneer thanks to the intimate after-sales service and premium goods.

· Mastering the technology of producing uvc led air purifier has created more benefits for Tianhui.

· Tianhui creates an environment for the long-term development of customers. Get price!

Product Details

The uvc led air purifier we produce are able to stand up to the details.

Application of the Product

The uvc led air purifier managed by Tianhui is widely used in industry.

Our company will modify and adjust the original solution according to the customer's needs. By doing so, we can provide solutions that best meet the customer's needs.

Product Comparison

Supported by advanced technology, Tianhui has a great breakthrough in the comprehensive competitiveness of uvc led air purifier, as shown in the following aspects.

Enterprise Advantages

With a focus on talent cultivation, Tianhui firmly believes that a professional team is a treasure for our enterprise. That's why we establish an elite team with integrity, dedication and innovative ability. It is the motivation for our company to develop rapidly.

We have set up a powerful, complete and effective marketing and serving system. And the most convenient and fastest pre-sales, sales, after-sales service would be provided to satisfy customers' user experience.

Adhering to the mission of 'providing high-quality products for the people', our company strives to make joint innovation and development of technology, quality and service. We believe our company will continuously lead the development of the industry in the future.

Tianhui was founded in and has been in the industry for years. We have never forgotten the initial intentions and dreams, and marched forward bravely in the development journey. We actively face the crisis and seize the opportunity. Finally, we achieve success through unremitting efforts and hard work.

Tianhui's high-quality UV LED Module, UV LED System, UV LED Diode are an attraction to domestic and foreign customers.
