Uvc Led Air Purifier Best Supplier for SterilizationTH-UV-05

Product details of the uvc led air purifier

Product Information

Tianhui uvc led air purifier is widely used and known for offering maximum satisfaction to the customers. The product is highly praised and has a long service life. With the further development and growth of Zhuhai Tianhui Electronic Co., Ltd., it's social recognition, popularity and reputation will continue to increase.

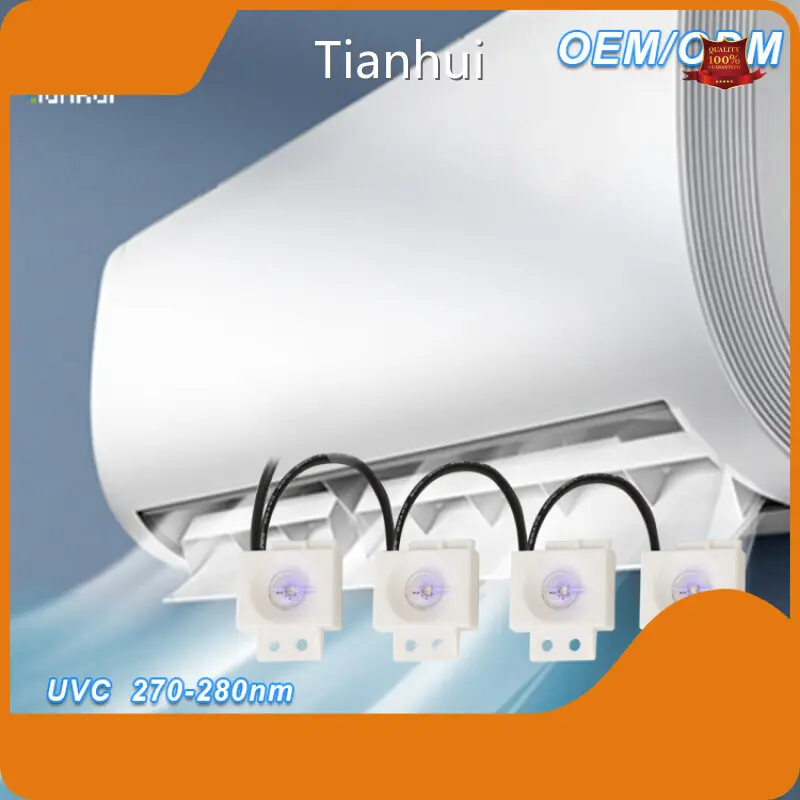

TH-UV-05(UVC) has two mounting holes on the side for screw mounting fixation, and multiple of this module can be connected in parallel, which is suitable for air inhibition of static UVC LED inhibition module.

The modules are compounded with IP68 waterproof requirements.

Use of UVC LED wavelength range of 270 ~ 280nm, with excellent and efficient sterilization disinfection effect, the surface is UV high-transmission quartz lens to improve the effective utilization of UVC, can significantly enhance the sterilization effect.

All materials are compounded with RoHS and Reach environmental requirements.

Application

这是一段描述

Air conditioning

Air purifier

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UV-05	-
Opening Hole size	-	-
Rated voltage	DC 12V±5％V	Customizable
UVC radiation flux	＞15mW (single module)	＞60mW (4 modules)
UVC Wavelength	270~280nm	-
Input current	80mA±10 (single module)	320mA±40 (4 modules)
Input power	0.96W	3.84W
Waterproof grade	-	-
Lamp bead life	-	-
Dielectric Strength
Size
Net weight
Applicable water temperature	-25℃~40℃	-
Storage temperature	-40℃~85℃	-

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
