Description
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Tianhui | Newly Uv Led Air Purifier New Arrival
Waterproof grade:
IP60
Rated voltage:
DC 12V
Size:
Φ15.5 x 147.4mm
Input current:
63mA~125mA
Model:
TH-UVC-T5
Product details of the uv led air purifier
Product Overview
The well-designed Tianhui uv led air purifier makes it more special than other similar products. Strict quality control ensures that the quality and performance of the product meets industry specifications. It is the ideal choice to meet the specific requirements.
Product Description
Supported by advanced technology, our uv led air purifier has a greater breakthrough in the comprehensive competitiveness of the products, as shown in the following aspects.

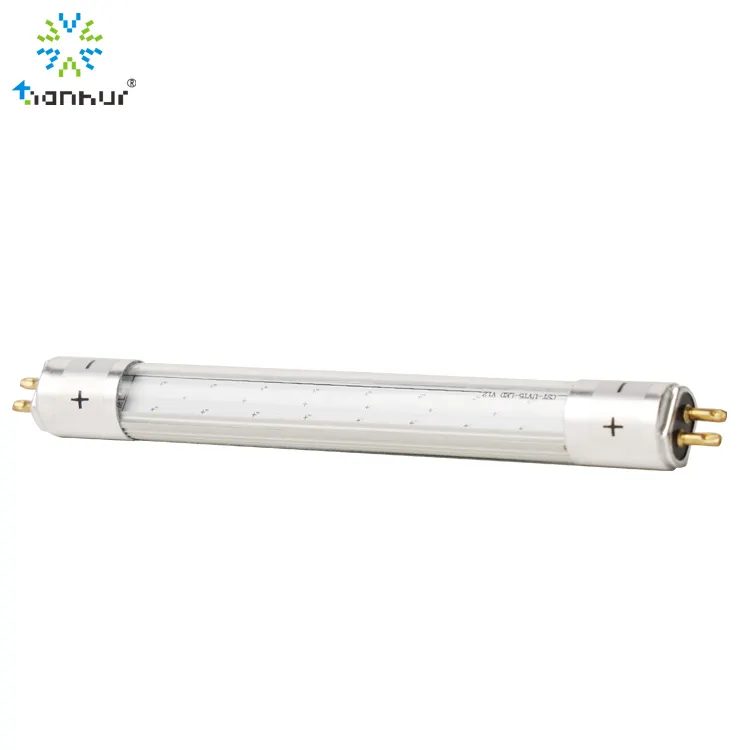

TH-UVC-T5 is a double-sided light tube, respectively front and back, low-voltage DC drive, constant current chip turn to constant current drive to ensure stable light output and service life of lamp beads long.
The product can be instantly started at nanosecond level without delay. After starting, the stable working state can be achieved.

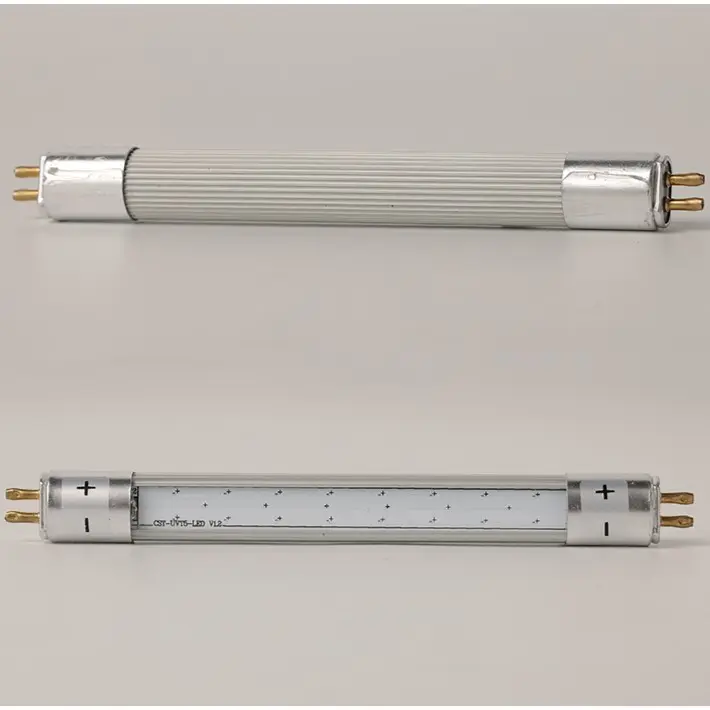

The lamp body is made of high-purity aluminum it is made by anodizing after construction, with simple and fashionable appearance and no color change. The wavelength range of UVC LED used is 270-280nm, with excellent and efficient sterilization and disinfection. Surface UV high transmittance quartz lens is used to improve the effectiveness of UVC
The use rate can significantly improve the sterilization effect. All materials meet the environmental protection requirements of ROHS and Reach
Application
| Sterilization of object surface | Internal sterilization in limited space | Air and water purification |
Parameters
|
Item |
Specifications |
Remark |
|
Model |
TH-UVC -T5 Sterilization lamp tube |
- |
|
Opening Hole size |
- |
- |
|
Rated voltage |
DC 12V |
- |
|
UVC radiation flux |
80- 100mW |
- |
|
UVC Wavelength |
UVC270-280nm / UVA390-400nm |
- |
|
Input current |
DC400±40mA |
- |
|
Input power |
1.2W |
- |
|
Waterproof grade |
|
- |
|
Lamp bead life |
5,000 Hours |
L50 (DC 12V) |
|
Dielectric Strength |
DC500 V, 1min@10mA,Leakage current |
|
|

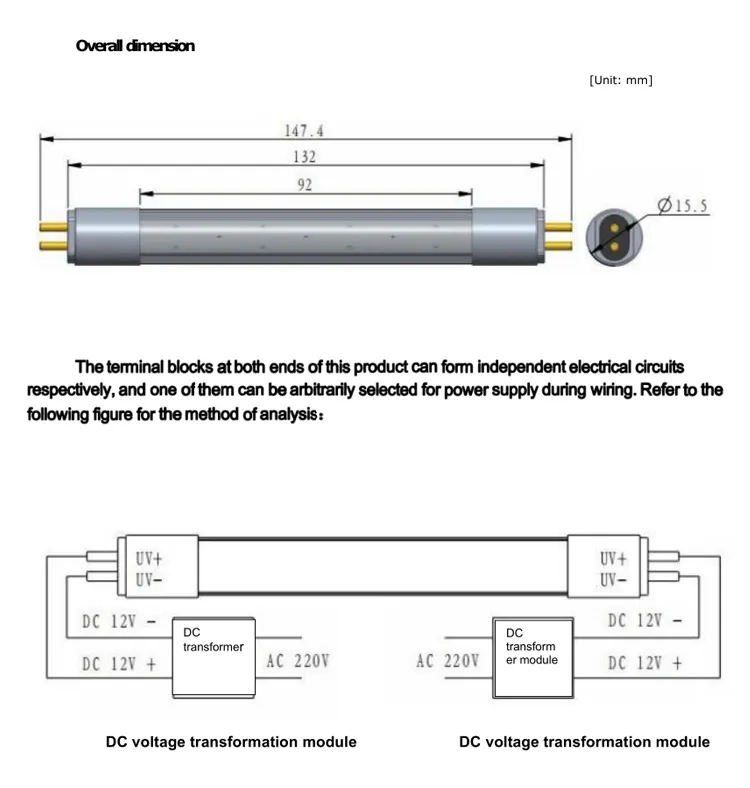

Size |
Φ15.5 x 147.4mm |
|
|
Net weight |
30g |
|
|
Applicable water temperature |
-25℃~40℃ |
- |
|
Storage temperature |
-40℃~85℃ |
- |
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
