Tianhui New Led Uv Light Water Purification with Custom Services Sterilization

Product details of the led uv light water purification

Product Description

The improved process of Tianhui led uv light water purification reduces existing errors. The product meets with the industrial safety and quality standards. The company culture Zhuhai Tianhui Electronic Co., Ltd. sticks to is to make qualified led uv light water purification products, and provide qualified services.

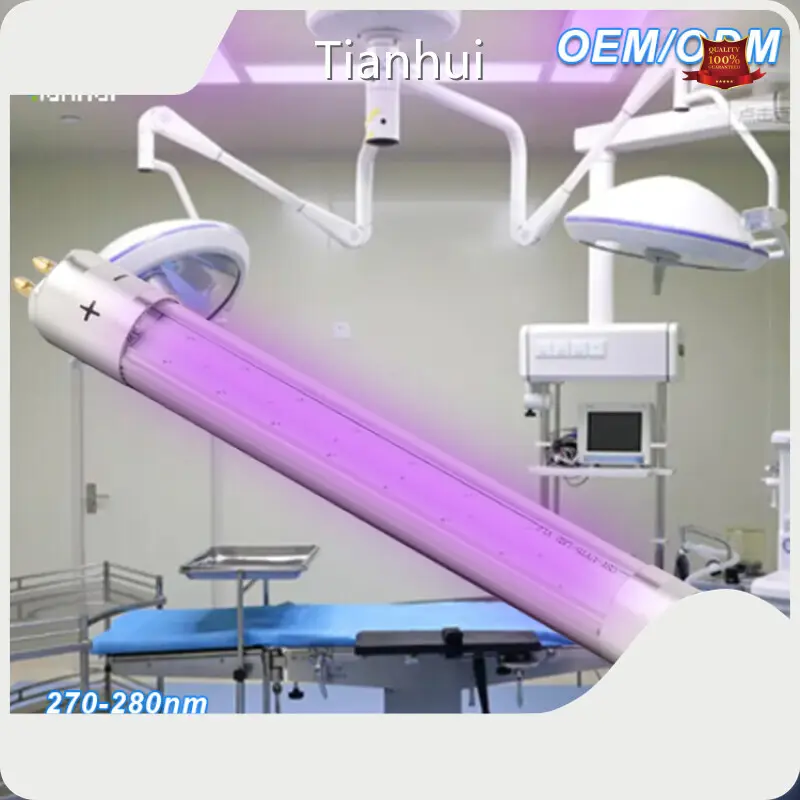

TH-UVC-T5 is a double-sided light tube, respectively front and back, low-voltage DC drive, constant current chip turn to constant current drive to ensure stable light output and service life of lamp beads long.

The product can be instantly started at nanosecond level without delay. After starting, the stable working state can be achieved.

The lamp body is made of high-purity aluminum it is made by anodizing after construction, with simple and fashionable appearance and no color change. The wavelength range of UVC LED used is 270-280nm, with excellent and efficient sterilization and disinfection. Surface UV high transmittance quartz lens is used to improve the effectiveness of UVC

The use rate can significantly improve the sterilization effect. All materials meet the environmental protection requirements of ROHS and Reach

Application

这是一段描述

Sterilization of object surface

Internal sterilization in limited space

Air and water purification

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UVC -T5 Sterilization lamp tube	-
Opening Hole size	-	-
Rated voltage	DC 12V	-
UVC radiation flux	80- 100mW	-
UVC Wavelength	UVC270-280nm / UVA390-400nm	-
Input current	DC400±40mA	-
Input power	1.2W	-
Waterproof grade		-
Lamp bead life	5,000 Hours	L50 (DC 12V)
Dielectric Strength	DC500 V, 1min@10mA,Leakage current
Size	Φ15.5 x 147.4mm
Net weight	30g
Applicable water temperature	-25℃~40℃	-
Storage temperature	-40℃~85℃	-

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
