Tianhui Brand Uv Led Air Purifier DC 300mA ( on Strip Light )

Product details of the uv led air purifier

Product Introduction

Quality, Design, and Functions are the guiding principles for Tianhui uv led air purifier. We implements strict checks to ensure the impeccable quality of this product. The driving force of this product's development comes from the huge market demand in the industry.

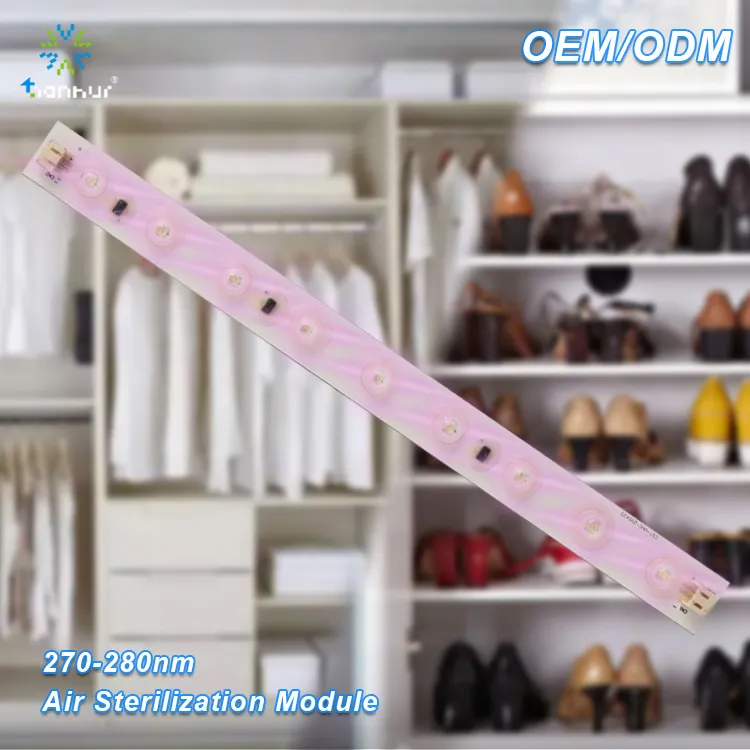

TH-UV-0255 strip- light is a light strip composed of 9 UVC light beads. Multiple light strips can be spliced.

The wavelength range of the UVC LED used is 270-280nm, which has excellent and efficient sterilization effect.

UV high permeable quartz lens is used on the surface to improve the effective utilization of UVC, which can significantly improve the bactericidal effect. All materials meet the environmental requirements of RoHS and Reach.

Application

这是一段描述

Air conditioning

Air purifier

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UV-0255 Strip-light	-
Opening Hole size	-	-
Rated voltage	DC 24V	Customizable
UVC radiation flux	10~ 15mW (Single lamp bead )	90~ 135mW ( One Strip light )
UVC Wavelength	270~280nm	-
Input current	DC 300mA (On Strip light )	-
Input power	7.2W	-
Waterproof grade	IP65	-
Lamp bead life	8,000 Hours	L85
Dielectric Strength	DC500 V, 1min@10mA, leak current
Size
Net weight
Applicable water temperature	-25℃~40℃	-
Storage temperature	-40℃~85℃	-

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Feature

• Tianhui's UV LED Module, UV LED System, UV LED Diode are of good quality and affordable price. They enjoy a high market share in the country. They are also sold to many overseas countries and regions and receive their favor and praise.
• Our company enjoys the advantaged location. The transportation here is much convenient because the roads, railways, and airports are all available.
• Tianhui was founded in Based on years of experience, we become a well-known manufacturer at home and abroad in the industry.
• Our company is able to provide customers with high-quality products and professional services promptly, because we have established a relatively complete service system.
If you have any questions or suggestions on Tianhui's UV LED Module, UV LED System, UV LED Diode, please leave your contact information. We will respond you as soon as possible.
