Product details of the led uv air purifier

Product Description

The material used in led uv air purifier is designed and created independently by Zhuhai Tianhui Electronic Co., Ltd.. Customer demand is greatly fueled by the durability and performance of the product. It can be provided with required print and size as we have the skills and experience.

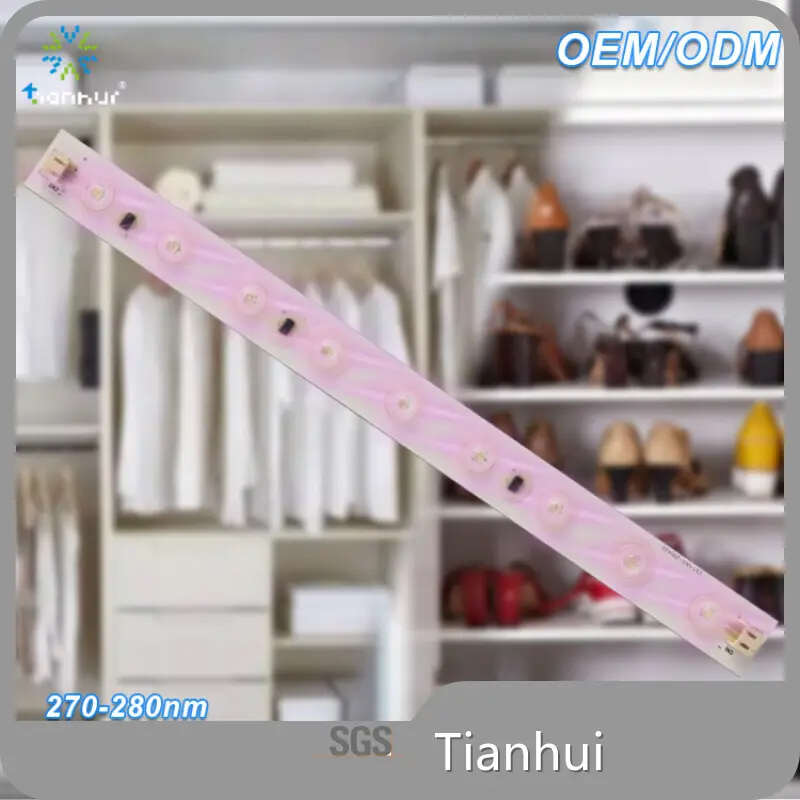

TH-UV-0255 strip- light is a light strip composed of 9 UVC light beads. Multiple light strips can be spliced.

The wavelength range of the UVC LED used is 270-280nm, which has excellent and efficient sterilization effect.

UV high permeable quartz lens is used on the surface to improve the effective utilization of UVC, which can significantly improve the bactericidal effect. All materials meet the environmental requirements of RoHS and Reach.

Application

这是一段描述

Air conditioning

Air purifier

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UV-0255 Strip-light	-
Opening Hole size	-	-
Rated voltage	DC 24V	Customizable
UVC radiation flux	10~ 15mW (Single lamp bead )	90~ 135mW ( One Strip light )
UVC Wavelength	270~280nm	-
Input current	DC 300mA (On Strip light )	-
Input power	7.2W	-
Waterproof grade	IP65	-
Lamp bead life	8,000 Hours	L85
Dielectric Strength	DC500 V, 1min@10mA, leak current
Size
Net weight
Applicable water temperature	-25℃~40℃	-
Storage temperature	-40℃~85℃	-

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
