· Advanced facilities: Tianhui led uv air purifier is well crafted by utilizing the state of the art production equipment. Some of the production facilities are imported from overseas.

· Under the strict supervision of quality experts, 100% of the products have passed the conformance test.

· Comprehensive service about the led uv air purifier has helped Tianhui win more customers.

Description

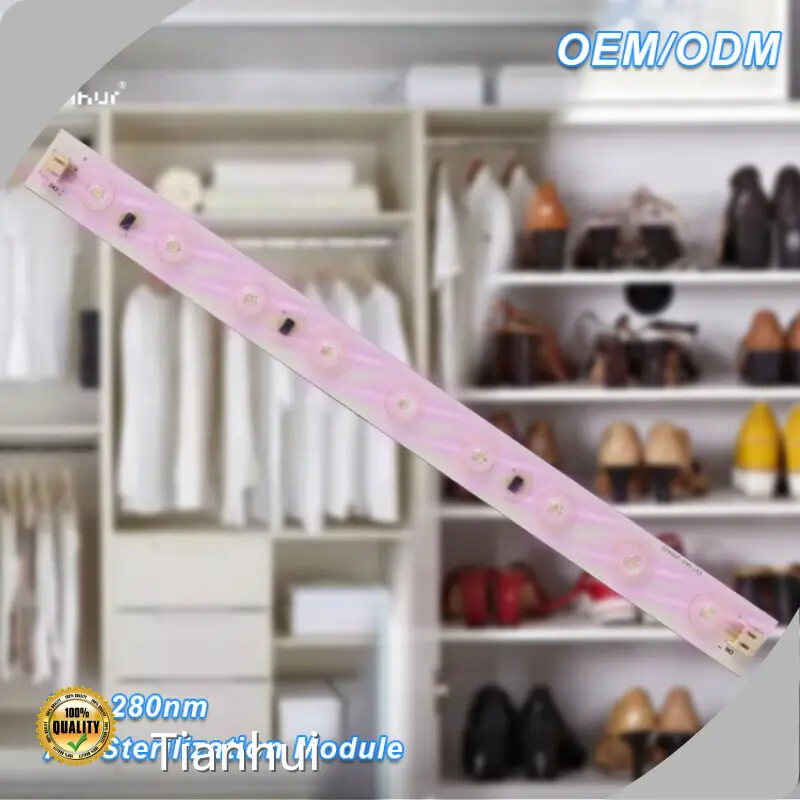

TH-UV-0255 strip- light is a light strip composed of 9 UVC light beads. Multiple light strips can be spliced.

The wavelength range of the UVC LED used is 270-280nm, which has excellent and efficient sterilization effect.

UV high permeable quartz lens is used on the surface to improve the effective utilization of UVC, which can significantly improve the bactericidal effect. All materials meet the environmental requirements of RoHS and Reach.

Application

Air conditioning

Air purifier

Parameters

Item	Specifications	Remark
Model	TH-UV-0255 Strip-light	-
Opening Hole size	-	-
Rated voltage	DC 24V	Customizable
UVC radiation flux	10~ 15mW (Single lamp bead )	90~ 135mW ( One Strip light )
UVC Wavelength	270~280nm	-
Input current	DC 300mA (On Strip light )	-
Input power	7.2W	-
Waterproof grade	IP65	-
Lamp bead life	8,000 Hours	L85
Dielectric Strength	DC500 V, 1min@10mA, leak current
Size
Net weight
Applicable water temperature	-25℃~40℃	-
Storage temperature	-40℃~85℃	-

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Features

· As a led uv air purifier manufacturer and supplier, Zhuhai Tianhui Electronic Co., Ltd. has gained a presence in the ever-evolving marketplace in China.

· The world-class research and product development teams have established Zhuhai Tianhui Electronic Co., Ltd. as a global leader in developing, manufacturing and marketing led uv air purifier. Zhuhai Tianhui Electronic Co., Ltd. has strong scientific research personnel, with rich experience and innovative thinking.

· Our goal is to provide the best with the most competitive led uv air purifier. Contact us!

Application of the Product

The led uv air purifier of Tianhui can be used in many industries.

Tianhui insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.

TH-UVC-B03 UVC 275nm+365nm LED Air Purifier Indoor And Office Space

TH-UVC-DEM04 275nm UVC Sterilization Module for Drink Machine Ice Machine Air Humidifier Air Cleaner Pet Water Dispenser

UVC LED Module TH-UV-05 275nm UV LED for Air Conditioner Sterilization Parallel Multi-module

UVC LED Strip Light TH-UV-0255 for Air Conditioning Air Purifie

UVC LED Strip-light TH-UV-A500 for Air Object Surface Sterilization Inside Confined Space

one of the most professional UV LED suppliers in China

we are committed to LED diodesfor over 22+ years, a leading innovative LED chipsmanufacturer & supplier for UVC LED 255nm265nm 275nm, UVB LED 295nm ~ 315nm, UVA LED325nm 340nm 365nm ~ 405nm.
