Led Uv Air Purifier ＞15mW(Single Module) / ＞60mW(4 Modules) TH-UV-05 Led Uv Air Purifier Tianhui Brand

Company Advantages

· Tianhui led uv air purifier undergoes a series of quality tests. They include symmetry check of fabrics, colorfastness, adhesive check (logos, tag, care labeling), stitch damage check, etc.

· The product is notable for high energy efficiency. When it operates, it can utilize little energy as possible without any waste.

· The product will not accumulate bacteria or mildew. Any bacteria on the product will be easily killed by exposure to the sunlight.

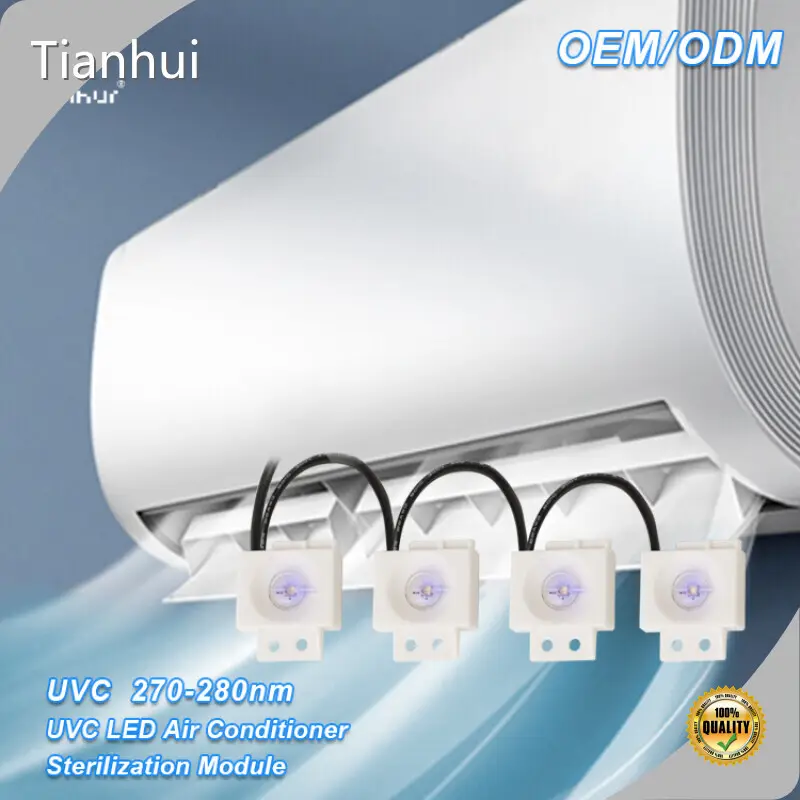

TH-UV-05(UVC) has two mounting holes on the side for screw mounting fixation, and multiple of this module can be connected in parallel, which is suitable for air inhibition of static UVC LED inhibition module.

The modules are compounded with IP68 waterproof requirements.

Use of UVC LED wavelength range of 270 ~ 280nm, with excellent and efficient sterilization disinfection effect, the surface is UV high-transmission quartz lens to improve the effective utilization of UVC, can significantly enhance the sterilization effect.

All materials are compounded with RoHS and Reach environmental requirements.

Application

这是一段描述

Air conditioning

Air purifier

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UV-05	-
Opening Hole size	-	-
Rated voltage	DC 12V±5％V	Customizable
UVC radiation flux	＞15mW (single module)	＞60mW (4 modules)
UVC Wavelength	270~280nm	-
Input current	80mA±10 (single module)	320mA±40 (4 modules)
Input power	0.96W	3.84W
Waterproof grade	-	-
Lamp bead life	-	-
Dielectric Strength
Size
Net weight
Applicable water temperature	-25℃~40℃	-
Storage temperature	-40℃~85℃	-

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Features

· With years of focus on the design, manufacture, distribution of led uv air purifier, Zhuhai Tianhui Electronic Co., Ltd. has been receiving many recognitions around the world.

· The technical assistance of Zhuhai Tianhui Electronic Co., Ltd. has enhanced the standard of led uv air purifier. Modern technologies for producing led uv air purifier are introduced into Zhuhai Tianhui Electronic Co., Ltd..

· We have brought in advanced infrastructure for waste treatment in order to upgrade our production ways to minimize pollution. We will handle all of the production waste and scrap strictly in line with international environmental protection laws.

Product Details

In the production, Tianhui believes that detail determines result and quality creates brand. This is the reason that we strive for excellence in every product detail.

Application of the Product

Tianhui's led uv air purifier is widely applicable in the industry.

According to different needs of customers, we could customize comprehensive and efficient solutions for them.

Product Comparison

Compared with products in the same category,Tianhui's led uv air purifier's outstanding advantages are as follows.

Enterprise Advantages

Tianhui has a strong technical team engaged in independent innovation. Meanwhile, we actively strengthen cooperation with domestic research institutes. We recruit well-known experts in the industry as our senior consultants. All these provide strong technical support for our development.

Tianhui is able to provide efficient, professional and comprehensive services for we have complete product supply system, smooth information feedback system, professional technical service system, and developed marketing system.

Since its establishment, our company has been adhering to the corporate tenet of 'integrity and responsibility', and taking 'proving high-quality products and serving the society' as the development direction. We are dedicated to becoming a respected company.

Our company was founded in and our business scope has been expanding continuously. However, our product quality will always stay the same. And we are ready to provide more quality products for consumers wholeheartedly.

Tianhui's UV LED Module, UV LED System, UV LED Diode are not only sold well in China but also exported to countries and regions such as
