Hot Selling Vehicle Mounted Uvc Led Air Purifier Vehicle Mounted Uvc Led Air Purifier Company

Product details of the vehicle mounted uvc led air purifier

Product Description

Tianhui vehicle mounted uvc led air purifier is with a special appearance and functional design. Our quality inspectors will inspect the product on various quality parameters before delivery to ensure it is in line with international standards. Tianhui is highly recommended by our trustworthy partners.

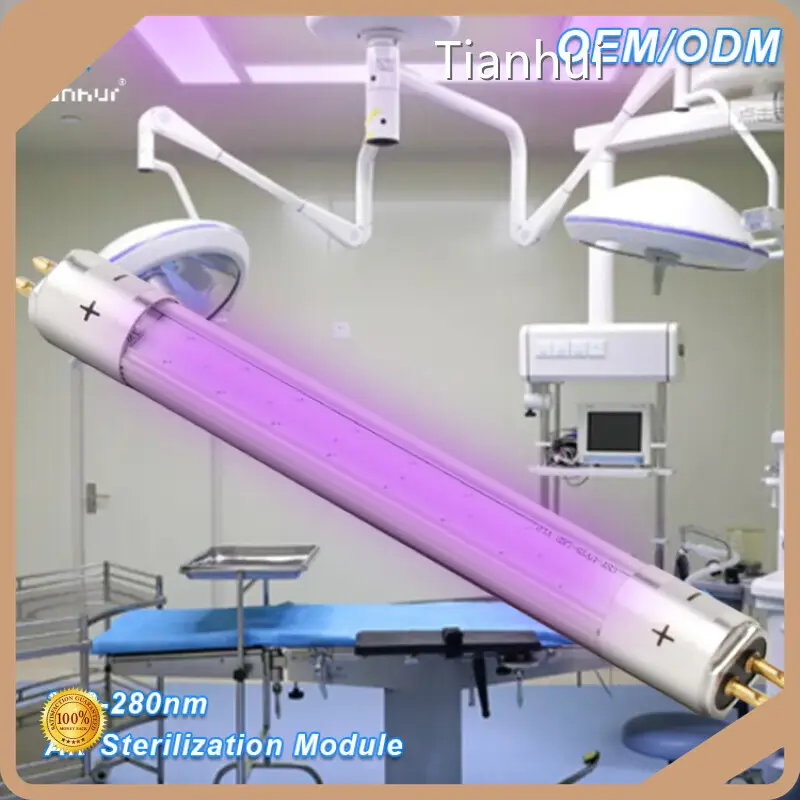

TH-UVC-T5 is a double-sided light tube, respectively front and back, low-voltage DC drive, constant current chip turn to constant current drive to ensure stable light output and service life of lamp beads long.

The product can be instantly started at nanosecond level without delay. After starting, the stable working state can be achieved.

The lamp body is made of high-purity aluminum it is made by anodizing after construction, with simple and fashionable appearance and no color change. The wavelength range of UVC LED used is 270-280nm, with excellent and efficient sterilization and disinfection. Surface UV high transmittance quartz lens is used to improve the effectiveness of UVC

The use rate can significantly improve the sterilization effect. All materials meet the environmental protection requirements of ROHS and Reach

Application

这是一段描述

Sterilization of object surface

Internal sterilization in limited space

Air and water purification

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UVC -T5 Sterilization lamp tube	-
Opening Hole size	-	-
Rated voltage	DC 12V	-
UVC radiation flux	80- 100mW	-
UVC Wavelength	UVC270-280nm / UVA390-400nm	-
Input current	DC400±40mA	-
Input power	1.2W	-
Waterproof grade		-
Lamp bead life	5,000 Hours	L50 (DC 12V)
Dielectric Strength	DC500 V, 1min@10mA,Leakage current
Size	Φ15.5 x 147.4mm
Net weight	30g
Applicable water temperature	-25℃~40℃	-
Storage temperature	-40℃~85℃	-

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Feature

• Tianhui has a sales network covering the whole country. Some products are exported to America, Africa, Europe, and other countries and regions. Now we are an influential company in the industry.
• Tianhui has a team that is dedicated, efficient, and strict. This lays a solid foundation for rapid development.
• Our company persists in the principle of 'users are teachers, peers are examples'. We have a group of efficient and professional elite service personnel. Besides, we utilize scientific methods and advanced technology. Thus, we can provide our clients with super-quality services.
• Tianhui's location has a pleasant climate, abundant resources, and unique geographical advantages. Meanwhile, the traffic convenience is conducive to the circulation and transportation of products.
Tianhui focuses on producing all kinds of quality UV LED Module, UV LED System, UV LED Diode. If you have any interest, your presence, guidance and cooperation are welcome.
