Product details of the uvc led air sterilizer

Product Overview

Our marvelous Tianhui uvc led air sterilizer is manufactured under the supervision of our highly skilled personnel. Through the devotion to the performance of uvc led air sterilizer, Zhuhai Tianhui Electronic Co., Ltd. has received more and more orders. Tianhui's uvc led air sterilizer is widely used in multiple industries and fields. Zhuhai Tianhui Electronic Co., Ltd. has stable production bases and manufacture center for our uvc led air sterilizer.

Product Information

Next, the details of uvc led air sterilizer are shown for you.

TH-UVC-DEM04 is a static UVC LED sterilization module for air and liquid. Applicable to sealed cavity structure with water tank. The UVC light emitting surface shall meet the waterproof requirements of IP67.

The UVC LED used had a wavelength range of 270- 285nm, It has excellent and efficient sterilization and disinfection effect.

The surface is a UV high permeable quartzlens, Improving the effective utilization rate of UVC, can significantly improve the sterilization effect.

All materials meet the environmental protection requirements of RoHS and Reach.

Application

这是一段描述

Drinking machine	Ice machine	Air humidifier
Air purifier	Pet water dispenser	Dishwasher

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UVC-DEM04	-
Rated voltage	DC 12V	Customizable
UVC radiation flux	≥5mW	-
UVC Wavelength	270-285nm	-
Input current	50±10mA	According to the lamp bead selection
Input power	0.6W	-
Waterproof grade	IP67	-
Wire rod	200±10mm	Customizable
Terminals	XHB2.54，2Pin，yellow	Customizable
Lamp bead life	>10,000 hours	-
Dielectric Strength	DC500 V,1min@10mA, Leakage current
Working temperature	-25℃-40℃	-
Storage temperature	-40℃-85℃	-

Remarks

这是一段描述

Peak wavelength（ λ p) The measurement tolerance is ±3nm.

Radiant flux（ Φ e) Measurement tolerance±10%.

The measurement tolerance of forward voltage (Vf) is±3%.

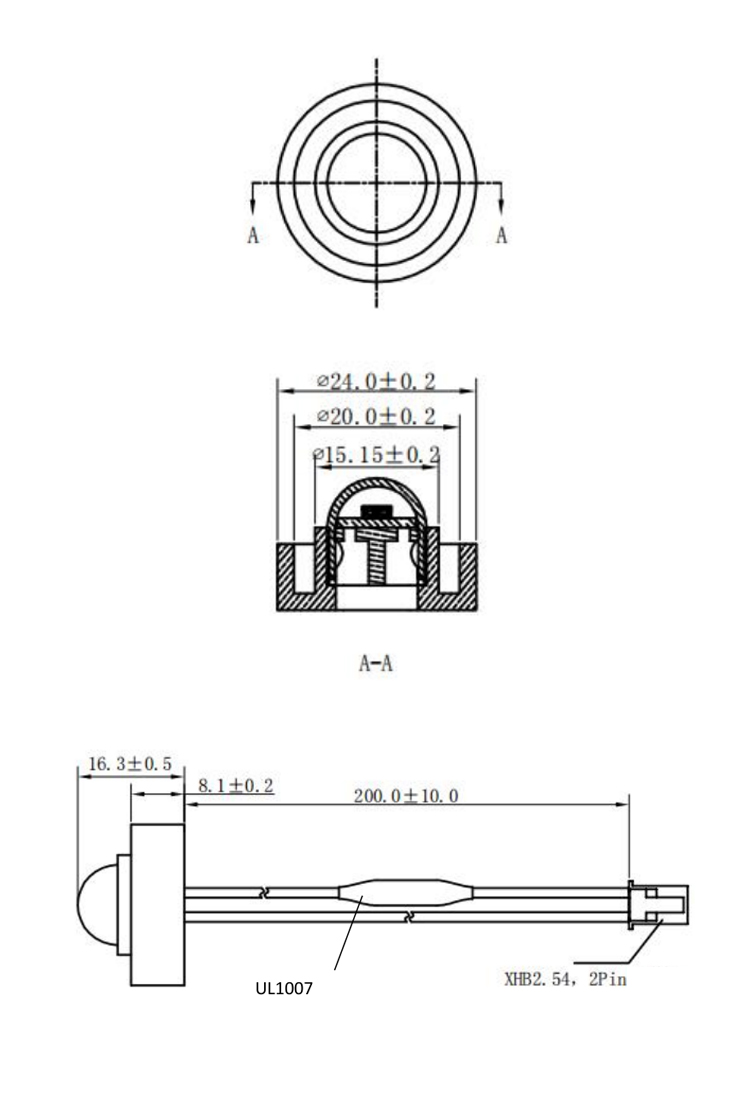

Overall dimension

这是一段描述

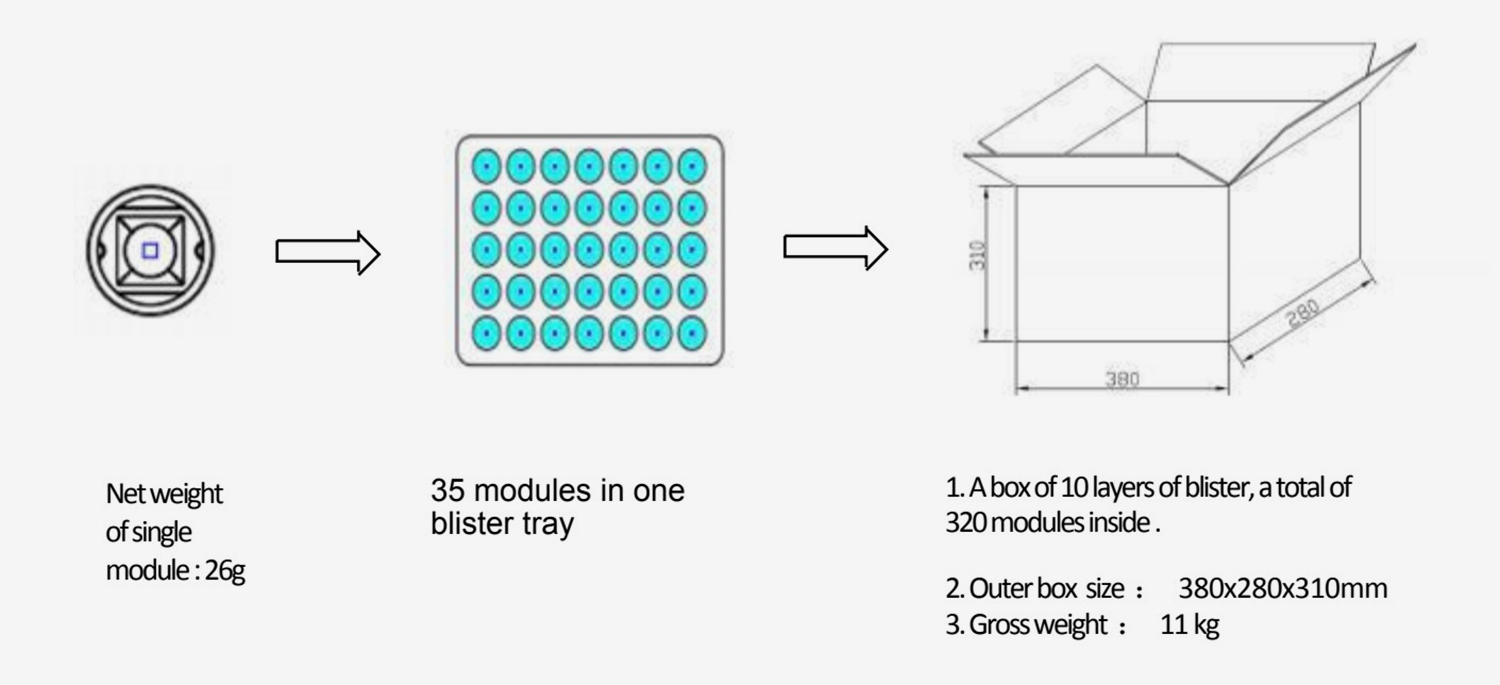

Packaging method (reference standard data)

这是一段描述

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
