Description
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service.
Custom Led Uv Air Purifier Personalized Manufacturer | Tianhui
Lead_Time:
1 - 10(pieces):15(days),>10(pieces):Negotiable(days)
Brand:
Tianhui
Product details of the led uv air purifier
Quick Overview
The deft design of led uv air purifier has attracted more and more customers. The product is rigorously examined under the supervision of skilled quality experts. Tianhui's led uv air purifier is widely applicable in the industry. The good reputation of Tianhui also gets benefit from the quality assurance of led uv air purifier.
Product Information
Compared with other similar products, our led uv air purifier has the following advantages.
TH-UVC-C01 It is a static UVC LED module for air and liquid bacteriostasis. It is suitable for closed cavity structure with water tank.
It can be installed at the top, side wall and bottom. The light emitting surface meets the waterproof requirements of IP65. Even if it is installed at the bottom of the water tank, there is no need to worry about water leakage.
The wavelength range of 270nm UV LED and 280nm UV LED, which has excellent and efficient sterilization and disinfection effect. The surface is made of UV high permeability quartz glass and UV reflector, which can improve the effective utilization of UVC LED and significantly improve the sterilization effect.
All materials meet the environmental protection requirements of ROHS and reach, and all water related parts meet the requirements of food safety and water batch.
270nm 280nm UVC LED Module Features

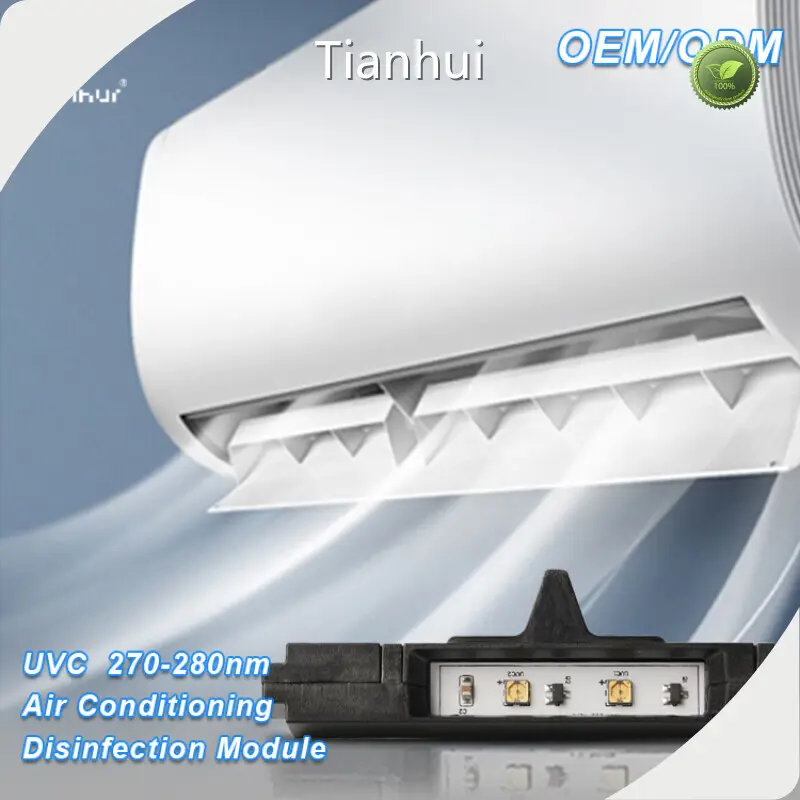

The TH-UVC-T01 Static UVC LED Module is designed to enhance indoor air quality by effectively eliminating harmful bacteria and pathogens within air conditioning systems. This innovative module harnesses the power of UVC (Ultraviolet-C) light to provide a robust bacteriostatic function, ensuring a cleaner and healthier environment.
UVC LED Technology
The module incorporates advanced UVC LED technology, which is well-known for its germicidal properties. UVC light, with a wavelength between 270nm uv led and 280nm uv led, has the ability to disrupt the DNA and RNA of microorganisms, rendering them incapable of reproduction and causing their demise.
Static Design
The static design of the module ensures that the UVC light covers a wide area within the air conditioning system, maximizing its effectiveness in sterilizing the air passing through. This static configuration ensures thorough bacteriostatic action without the need for moving parts.
Internal Bacteriostatic
Specifically engineered for air conditioning units, the TH-UVC-T01 module is installed internally to target the air circulating within the system. This internal bacteriostatic approach helps prevent the growth and spread of harmful microorganisms, including bacteria and viruses.
Efficient Air Purification
By integrating the TH-UVC-T01 module into air conditioning systems, it acts as a proactive measure to purify the air, reducing the risk of airborne contaminants. This is especially crucial in enclosed spaces where air circulation is limited, such as offices, homes, and commercial buildings.
Advantages
Core Advantages
Easy Installation
The module is designed for ease of installation, ensuring that it can be seamlessly integrated into existing air conditioning units. Its compact form factor allows for flexible placement within the system, optimizing its reach and effectiveness.
Low Maintenance
With no moving parts, the TH-UVC-T01 module requires minimal maintenance. The UVC LED module technology used is known for its long lifespan, contributing to the sustainability and longevity of the air purification system.
270nm 280nm UVC LED Module Application
Th-UVC-T01 Static 270nm-280nm UVC Led Module For Air Conditioning Elevated Air Purity For Healthier Living.
Residential Spaces
Enhance the air quality in homes by integrating the TH-UVC-T01 module into residential air conditioning systems, providing a healthier living environment.
Commercial Buildings
From offices to shopping malls, 270nm 280nm UVC LED module is suitable for various commercial spaces, contributing to the well-being of occupants.
Healthcare Facilities
From offices to shopping malls, 270nm 280nm UVC LED module is suitable for various commercial spaces, contributing to the well-being of occupants.
Application
| Drinking machine | Ice machine | Air humidifier | Air purifier |
| Aromatherapy machine | Pet water dispenser | Dishwasher |
270nm 280nm UVC LED Module Parameters
Item | Specifications | Remark |
Model | TH-UVC-T01 | - |
Opening Hole size | ||
Rated voltage | DC 12V | Customizable |
UVC radiation flux | ≥40mW | - |
UVC Wavelength | 270nm uv led-280nm uv led | - |
Input current | 200mA | - |
Input power | 2.4W | - |
Waterproof grade | ||
Lamp bead life | 8,000 hours | |
Dielectric Strength | DDC500 V,1min@10mA,leakage current | |
Size | 12 x 28.9mm | |
Net weight | 33g | |
Working temperature | -25℃-40℃ | - |
Storage temperature | -40℃-85℃ | - |
Remarks
• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.
• Radiation flux（ Φ e) Measurement tolerance ± 10%.
• The measurement tolerance of forward voltage (VF) is ± 3%.
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Advantages
Being an expert in the industry, Zhuhai Tianhui Electronic Co., Ltd. has been engaged in the research, development, design, manufacturing, and marketing of led uv air purifier. Zhuhai Tianhui Electronic Co., Ltd. believes in investing in technology that adds value to our customers’ experience. 'Protecting good quality' is Zhuhai Tianhui Electronic Co., Ltd.'s brand promise. Contact!
If you are interested, please contact customer service staff for consultation!
