Best Valueuv Led Air Purifier for Treatment 000 Hours 10~ 15mW (Single Lamp Bead ) / 90~ 135mW ( One Strip Light )

Company Advantages

· Unique texture of uv led air purifier gives a different visual experience.

· The product is tested for many times to ensure that it is of great durability and stability.

· The product has high requirements in the market and demonstrates its broad market prospects.

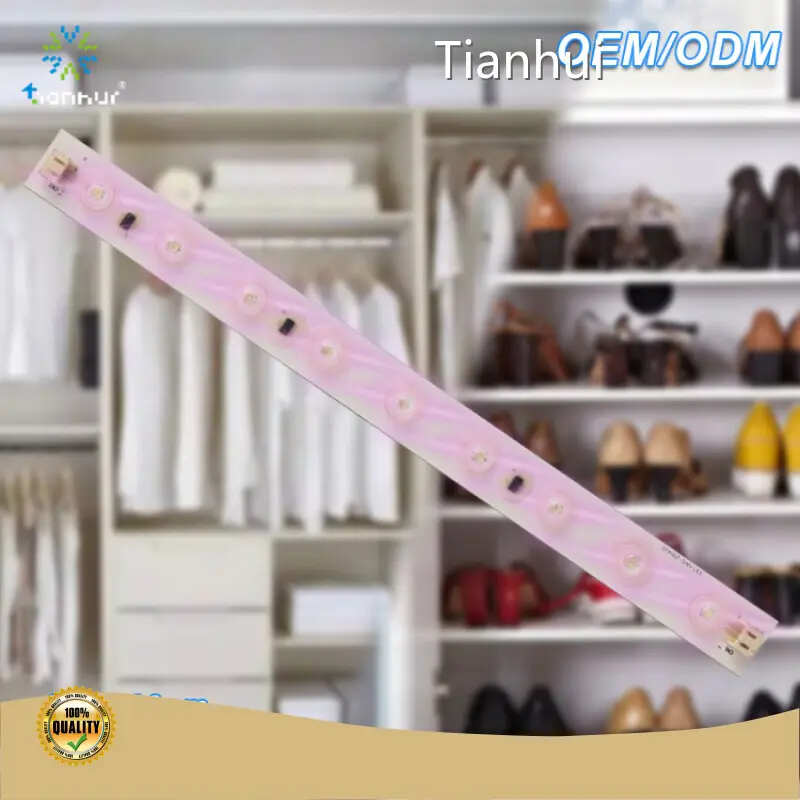

TH-UV-0255 strip- light is a light strip composed of 9 UVC light beads. Multiple light strips can be spliced.

The wavelength range of the UVC LED used is 270-280nm, which has excellent and efficient sterilization effect.

UV high permeable quartz lens is used on the surface to improve the effective utilization of UVC, which can significantly improve the bactericidal effect. All materials meet the environmental requirements of RoHS and Reach.

Application

这是一段描述

Air conditioning

Air purifier

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UV-0255 Strip-light	-
Opening Hole size	-	-
Rated voltage	DC 24V	Customizable
UVC radiation flux	10~ 15mW (Single lamp bead )	90~ 135mW ( One Strip light )
UVC Wavelength	270~280nm	-
Input current	DC 300mA (On Strip light )	-
Input power	7.2W	-
Waterproof grade	IP65	-
Lamp bead life	8,000 Hours	L85
Dielectric Strength	DC500 V, 1min@10mA, leak current
Size
Net weight
Applicable water temperature	-25℃~40℃	-
Storage temperature	-40℃~85℃	-

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Features

· Zhuhai Tianhui Electronic Co., Ltd. is a reliable supplier and manufacturer of uv led air purifier.

· With years of market development, we have exported our products to many countries and established a reliable strategic partnership with many large and famous companies.

· We adhere to professional service and superior quality of uv led air purifier. Please contact us!

Product Details

With the dedication to pursue excellence, Tianhui strives for perfection in every detail.

Product Comparison

Compared with similar products, our uv led air purifier's core competitiveness is mainly reflected in the following aspects.

Enterprise Advantages

With a comprehensive team management system, Tianhui has a dedicated production team and an R&D team with advanced technology. We also have a sales team who is really familiar with the business. And our professional service team sincerely provide you with services that satisfy customers' needs. All these promote corporate development.

With the service concept of 'customer first, service first', Tianhui constantly improves the service and strive to provide professional, high-quality and comprehensive services for customers.

We will always follow the business philosophy of 'being in the market with integrity, developing and progressing, changing through innovation', and carry forward the enterprise spirit of 'confidence, professionalism, hard work'. With a focus on customers and quality, we take technology as the guarantee, and strive to strengthen the core competitiveness. Moreover, we are committed to becoming a leader in the industry.

Since its inception in Tianhui has been continuously exploring the new business model that promotes better development for years.

Our company's products are not just popular with the domestic market. They are exported to Southeast Asia, Europe, Africa and other countries and regions.
