Bepoke Uv Led Air Purifier for Sterilization

Product details of the uv led air purifier

Product Overview

Tianhui uv led air purifier is manufactured by our adroit professionals using premium grade raw material and ultra modern technology. The product is competitive in the market for its excellent performance and durability. Tianhui's uv led air purifier is widely used in many industries. Complete uv led air purifier test machine provides strong assurance for the stable quality.

Product Description

Compared with similar products, Tianhui's uv led air purifier is more advantageous in the following aspects.

TH-UVC-C01 It is a static UVC LED module for air and liquid bacteriostasis. It is suitable for closed cavity structure with water tank.



It can be installed at the top, side wall and bottom. The light emitting surface meets the waterproof requirements of IP65. Even if it is installed at the bottom of the water tank, there is no need to worry about water leakage.



The wavelength range of 270nm UV LED and 280nm UV LED, which has excellent and efficient sterilization and disinfection effect. The surface is made of UV high permeability quartz glass and UV reflector, which can improve the effective utilization of UVC LED and significantly improve the sterilization effect.



All materials meet the environmental protection requirements of ROHS and reach, and all water related parts meet the requirements of food safety and water batch.

270nm 280nm UVC LED Module Features

The TH-UVC-T01 Static UVC LED Module is designed to enhance indoor air quality by effectively eliminating harmful bacteria and pathogens within air conditioning systems. This innovative module harnesses the power of UVC (Ultraviolet-C) light to provide a robust bacteriostatic function, ensuring a cleaner and healthier environment.

UVC LED Technology

The module incorporates advanced UVC LED technology, which is well-known for its germicidal properties. UVC light, with a wavelength between 270nm uv led and 280nm uv led, has the ability to disrupt the DNA and RNA of microorganisms, rendering them incapable of reproduction and causing their demise.

Static Design

The static design of the module ensures that the UVC light covers a wide area within the air conditioning system, maximizing its effectiveness in sterilizing the air passing through. This static configuration ensures thorough bacteriostatic action without the need for moving parts.

Internal Bacteriostatic

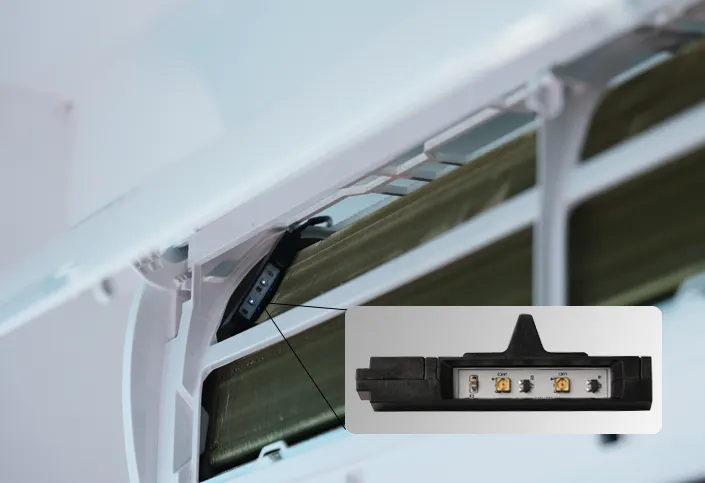

Specifically engineered for air conditioning units, the TH-UVC-T01 module is installed internally to target the air circulating within the system. This internal bacteriostatic approach helps prevent the growth and spread of harmful microorganisms, including bacteria and viruses.

Efficient Air Purification

By integrating the TH-UVC-T01 module into air conditioning systems, it acts as a proactive measure to purify the air, reducing the risk of airborne contaminants. This is especially crucial in enclosed spaces where air circulation is limited, such as offices, homes, and commercial buildings.

Advantages

Core Advantages

Easy Installation

The module is designed for ease of installation, ensuring that it can be seamlessly integrated into existing air conditioning units. Its compact form factor allows for flexible placement within the system, optimizing its reach and effectiveness.

Low Maintenance

With no moving parts, the TH-UVC-T01 module requires minimal maintenance. The UVC LED module technology used is known for its long lifespan, contributing to the sustainability and longevity of the air purification system.

270nm 280nm UVC LED Module Application

Th-UVC-T01 Static 270nm-280nm UVC Led Module For Air Conditioning Elevated Air Purity For Healthier Living.

Residential Spaces

Enhance the air quality in homes by integrating the TH-UVC-T01 module into residential air conditioning systems, providing a healthier living environment.

Commercial Buildings

From offices to shopping malls, 270nm 280nm UVC LED module is suitable for various commercial spaces, contributing to the well-being of occupants.

Healthcare Facilities

From offices to shopping malls, 270nm 280nm UVC LED module is suitable for various commercial spaces, contributing to the well-being of occupants.

 Application

这是一段描述

Drinking machine	Ice machine	Air humidifier	Air purifier
Aromatherapy machine	Pet water dispenser	Dishwasher

270nm 280nm UVC LED Module Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UVC-T01	-
Opening Hole size
Rated voltage	DC 12V	Customizable
UVC radiation flux	≥40mW	-
UVC Wavelength	270nm uv led-280nm uv led	-
Input current	200mA	-
Input power	2.4W	-
Waterproof grade
Lamp bead life	8,000 hours
Dielectric Strength	DDC500 V,1min@10mA,leakage current
Size	12 x 28.9mm
Net weight	33g
Working temperature	-25℃-40℃	-
Storage temperature	-40℃-85℃	-

Remarks

这是一段描述

• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.

• Radiation flux（ Φ e) Measurement tolerance ± 10%.

• The measurement tolerance of forward voltage (VF) is ± 3%.

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
