10~ 15mW (Single Lamp Bead ) / 90~ 135mW ( One Strip Light ) DC 300mA ( on Strip Light ) TH-UV...

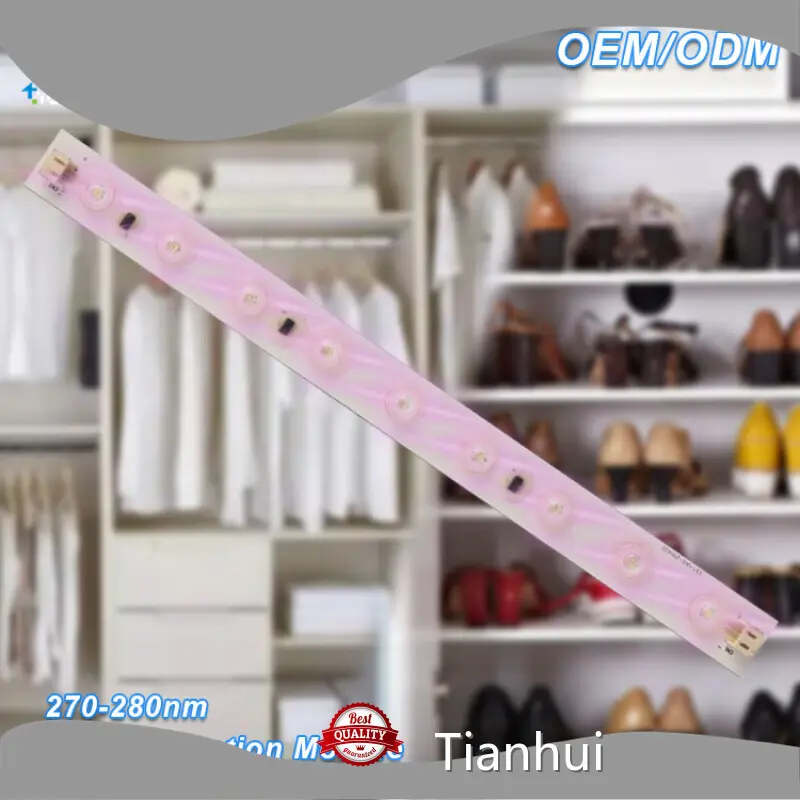

TH-UV-0255 strip- light is a light strip composed of 9 UVC light beads. Multiple light strips can be spliced.

The wavelength range of the UVC LED used is 270-280nm, which has excellent and efficient sterilization effect.

UV high permeable quartz lens is used on the surface to improve the effective utilization of UVC, which can significantly improve the bactericidal effect. All materials meet the environmental requirements of RoHS and Reach.

Application

这是一段描述

Air conditioning

Air purifier

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UV-0255 Strip-light	-
Opening Hole size	-	-
Rated voltage	DC 24V	Customizable
UVC radiation flux	10~ 15mW (Single lamp bead )	90~ 135mW ( One Strip light )
UVC Wavelength	270~280nm	-
Input current	DC 300mA (On Strip light )	-
Input power	7.2W	-
Waterproof grade	IP65	-
Lamp bead life	8,000 Hours	L85
Dielectric Strength	DC500 V, 1min@10mA, leak current
Size
Net weight
Applicable water temperature	-25℃~40℃	-
Storage temperature	-40℃~85℃	-

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Advantages

· The design of Tianhui uv led air purifier is completed by using the template provided by our customers. It is strictly carried out by complying with the dimensions and printing requirements.

· The product has a unique heat sink that provides the path for heat to travel from the light source to outside elements, which effectively improve the management of heat.

· We have the widest range of production technologies for achieving these great performances and quality.

Company Features

· Zhuhai Tianhui Electronic Co., Ltd. is gradually developing into a global enterprise that mainly specializes in the developing and producing of uv led air purifier.

· Zhuhai Tianhui Electronic Co., Ltd. has advanced testing equipment and a strong R&D team.

· We have set our target to grow together with our employees, manufacturers, and suppliers. We aim to increase profitability and efficiency together with our employees and customers.

Application of the Product

The uv led air purifier of Tianhui can be used in many industries.

Tianhui has been engaged in the production of UV LED Module, UV LED System, UV LED Diode for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.

UV LED air purifiers are the latest innovation in air cleaning technology that uses ultraviolet light to kill bacteria, viruses, and other airborne contaminants. These purifiers use LED light technology to disinfect the air and eliminate harmful pollutants, making them ideal for homes, offices, and public spaces. One of the most significant advantages of using a UV LED air purifier is that it is safe and eco-friendly. Unlike conventional air cleaners that emit harmful chemicals, UV LED air purifiers do not emit ozone or other pollutants. The application of UV LED air purifiers is vast and diverse, ranging from home use to public transportation to healthcare facilities. These air purifiers are an effective and reliable way to maintain indoor air quality and ensure a healthy living environment.
