Description
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Uvc Led Technology 3.5-3.8V Wholesale - Tianhui
UV radiation flux:
1.85W/2.15W/2.1W/2.05W
Rated voltage:
3.5-3.8V
Consumption Power (W):
3.5W/3.6W/3.7W
Product name:
CUN(x)6A1G
Brand:
Seoul Viosys, SVC
Product details of the uvc led technology
Product Overview
uvc led technology is one of the factors that Zhuhai Tianhui Electronic Co., Ltd. emphasizes during material selection. The product is manufactured to the highest quality, exceeding the standards of the industry. The uvc led technology produced by Tianhui is very popular in the market and is widely used in industry. This product has many significant advantages and has won more and more global customers.
Product Information
The uvc led technology we produce are able to stand up to the details.

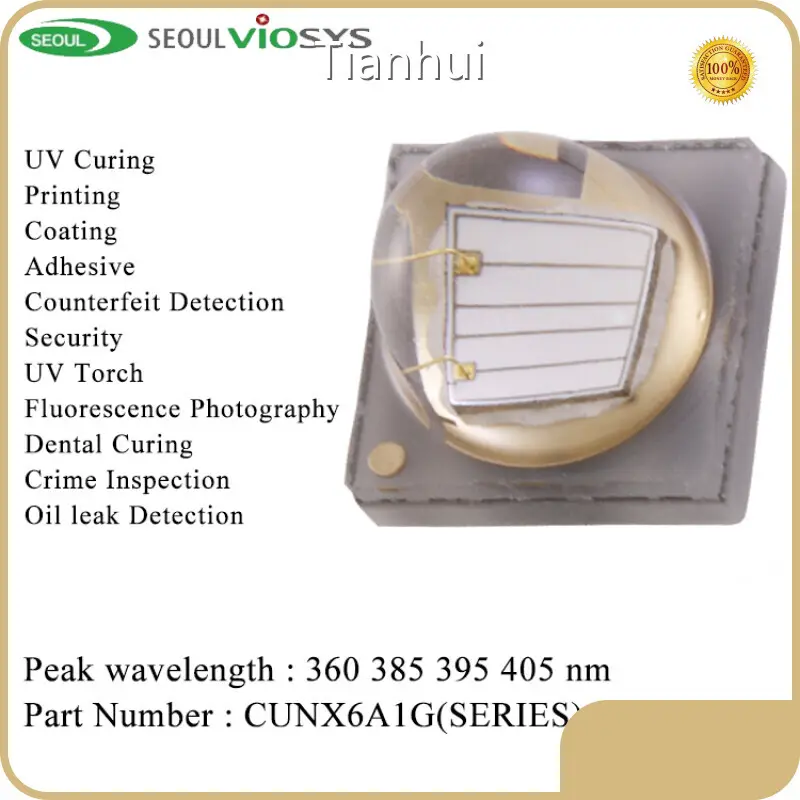

The High Power UV LED chip series is designed for high current operation and high power output applications.
It incorporates an advanced SMD design.
The Z5 NUV UV LED chip is the ideal UV light source for curing, UV Led printing and inspection applications. Ideal UV light source for inspection applications.
Application
| UV LED Printing | Dental Curing | UV LED Curing |
| Crime Inspection | Oil Leak Detection | Fluorescence Photography |
Parameters
Item | Specifications |
Model | Cun(x)6A1G Series |
Rated voltage | 3.5-3.8V |
UVA radiation flux | 1.85-2.1W |
UVA Wavelength | 360~370nm 380~390nm 390~400nm 400~410nm |
Input current | 1A |
Input power | 1760-2360mW |
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Introduction
Zhuhai Tianhui Electronic Co., Ltd., located in zhu hai, is a modern company. We are mainly engaged in the research, production, and sales of UV LED Module, UV LED System, UV LED Diode. Our company has built a comprehensive system of product supply and after-sales service, with the goal of providing all round quality service consistently. Welcome to discuss business cooperation with us!
