Uvb Led Diode 3.6~7V Tianhui

Product details of the uvb led diode

Product Introduction

uvb led diode has reliable quality, refined and beautiful appearance and long service life. uvb led diode is of great market competitiveness. With strong ability in advanced technology, Tianhui can also offer uvb led diode service to meet the requirements of customers.

310nm 325nm 340nm UVA LED Diode

Items	Condition	Min.	Typ.	Max.	Unit
Forward Current	-	-	20	-	mA
Forward Voltage	IF=20mA	3.6	-	7	V
Optical Power Output	IF=20mA	0.5	1.1	2.5	mW
Wavelength	IF=20mA	250	255	260	nm
		260	265	270	nm
		270	275	280	nm
		280	285	290	nm
		290	295	300	nm
		300	305	310	nm
		300	310	315	nm
		335	340	350	nm
Viewing Angle	IF=20mA	-	7.5	-	Deg

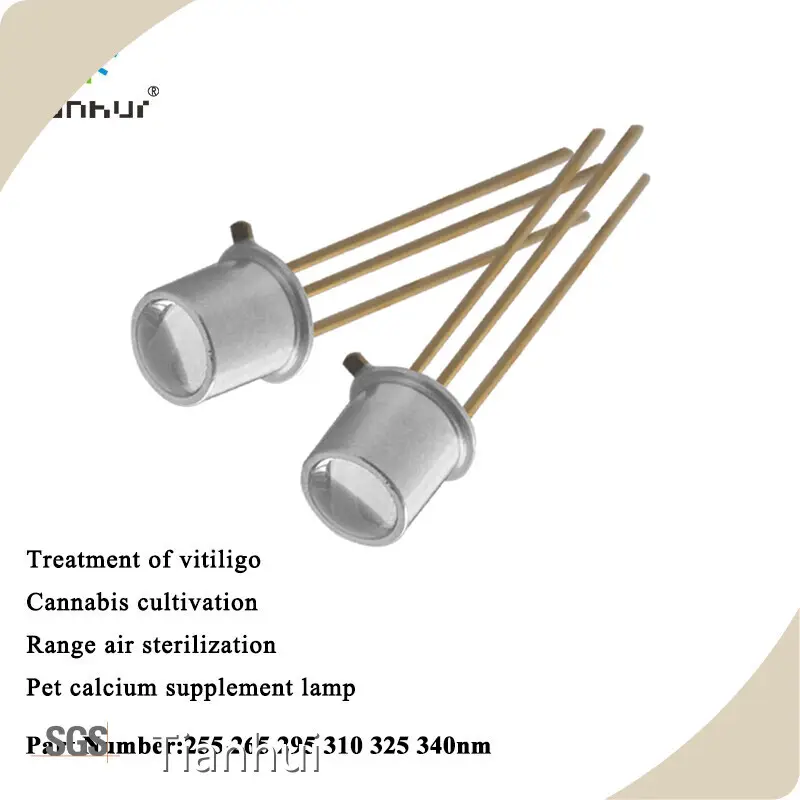

Tianhui TO46 340nm UVA LED diode is a light source used for medical testing,mainly for blood analysis and other aspects. This LED light source has a wavelength of 310nm, 320nm 340nm led and belongs to the ultraviolet A-band. The A-band ultraviolet light has a longer wavelength and lower energy, making it suitable for certain medical applications.



In the field of medicine, blood analysis is one of the most important detection methods. By analyzing blood samples, important information about the patient's health status can be obtained, such as red blood cell count, white blood cell count, hemoglobin content, etc. As a light source, Tianhui TO46 320nm UVA LED diode can provide sufficient ultraviolet A light to stimulate specific components or markers in the blood, thereby assisting medical workers in blood analysis.



There are some advantages to using Tianhui TO46 310nm UVA LED diode for blood analysis. Firstly, ultraviolet A light can penetrate blood samples and interact with certain components within them. Secondly, the Tianhui TO46 320nm UV LED diode has a shorter response time and longer lifespan, providing a stable and reliable light source. In addition, the design of the TO46 packaging makes it more compact and easy to integrate into medical devices.

In summary, Tianhui TO46 310nm UV LED, as a medical testing light source, can be used in fields such as blood analysis. It provides stable ultraviolet A light for stimulating and detecting specific components in the blood, providing important blood analysis data for medical workers.

Tianhui electric has been engaging in UV LED diode package with full production series and stable quality and reliability as well as competitive prices. The products include UVA LED, UVB LED, UVC LED from short wavelength to long wavelength and complete UV LED specifications from small power to high power.
