Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Uv Leds Tianhui Brand TH 340nm to 346nm
Lamp bead life:
20000
Rated voltage:
3.8V
Led Power:
0.8-1.2mW
Wavelength:
340nm to 346nm
Brand:
TH
| Items | Min. | Typ. | Max. | Unit |
| Forward Current | 20 | mA | ||
| Forward Voltage | — | 3.8 | — | V |
| Radiant Flux | — | 0.94 | — | W |
| Peak Wavelength | 340nm uv led | 343nm uv led | 346nm uv led | nm |
| Viewing Angle | 7 | deg. | ||
| Spectrum Half Width | 9.8 | nm | ||
| Thermal Resistance | — | ºC /W |
UV LED Diode 340 nm to 346nm
Tianhui offer 340nm, 343nm and 346nm UV Led in SMD packages with medium output.
With extensive industry experience, Tianhui offers the most reliable and accurate UV Led for medical testing, specifically blood analysis. Seoul Viosys UV light diode, a high-performance UV LED designed specifically for medical testing and blood analysis, offering precise wavelengths of 340nm uv led, 343nm uv led, and 346nm uv led, it delivers exceptional accuracy and reliability.
Product characteristics
- The emission peak is 335-350nm and matched with the sensor
- Good linearity and spot of light output
- The operating temperature range is -20 ° C to 60 ° C
- Efficient output optical power and good stability
- Fast response speed
- High reliability TO46 packaging with good heat dissipation
- Compliant with ROHS standards
UVA ultraviolet lamp refers to a general term for long wavelength ultraviolet lamps with a wavelength of 320-400nm. In addition to fixed ultraviolet lamps, UVA light diode also include ultraviolet medical testing, water testing, air testing, and blood testing. UVA ultraviolet lamps, as long wavelength ultraviolet lamps, have the characteristic of strong penetration. It is widely used in industries such as industry, Criminal investigation, minerals, aquaculture and medical treatment. Today we will discuss the application of ultraviolet 340nm-346nm UV light diode sources.
Seoul viosys svc ultraviolet uva uv-led 340 nm to 346 nm uv led for blood analysis phototherapy spectroscopy
For medical & blood analysis and testing & scientific application & water detection & air detection.

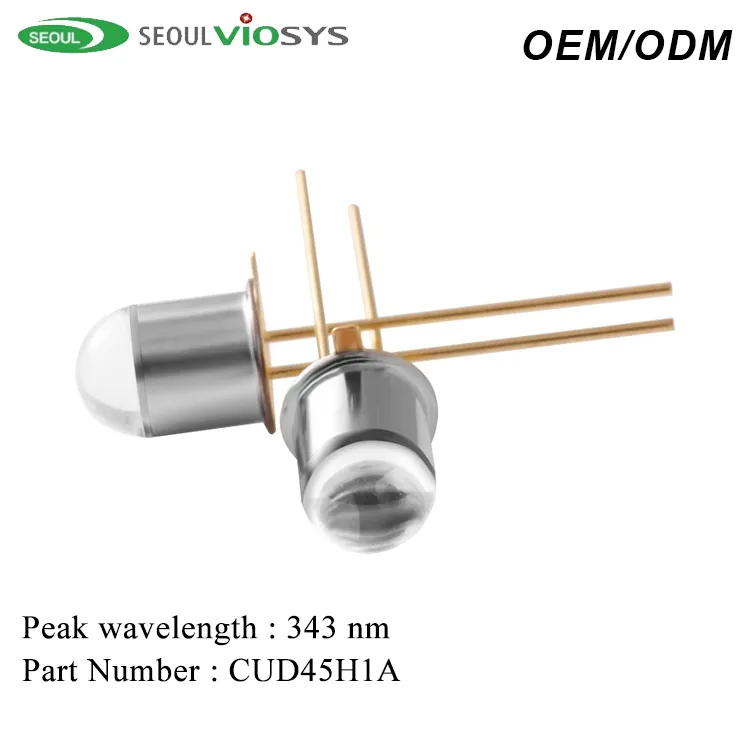

Seoul Viosys CUD45H1A UV Led diode:
- - Precisely emits UV light (340nm, 343nm, 346nm)
- - Ideal for medical testing and blood analysis
- - Reliable and efficient testing results
- - Trusted brand for UV LED technology
- - Provides accurate and consistent performance.
Zhuhai Tianhui Electronic Co., Ltd. was founded in 2002 . This is a production oriented and high technology company integrated research and development, production, sales and solution providing of UV LEDs, which is specialized in doing UV LED packaging and providing UV LED solutions of finished products for various UV LED applications.
Tianhui electric has been engaging in UV LED package with full production series and stable quality and reliability as well as competitive prices. The products include UVA, UVB, UVC from short wavelength to long wavelength and complete UV LED specifications from small power to high power.
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Advantages
· Tianhuiuv leds comes with various designs that integrate function and aesthetics.
· Product quality is fully compliant with established industry standards.
· Zhuhai Tianhui Electronic Co., Ltd.'s customer service will carefully listening and attending to customers’ needs.
Company Features
· Zhuhai Tianhui Electronic Co., Ltd. is a major Chinese manufacturer of the well-known uv leds.
· Over the past few years, our company has obtained a number of local and international awards. This means we are recognized for excellent products and service.
· We acknowledge the need to contribute to sustainability. We constantly improve our efficiency and processes to minimize the impact of our operations and reduce resource use across the business.
Application of the Product
Tianhui's uv leds is of excellent quality and is widely used in the industry.
With rich manufacturing experience and strong production strength, Tianhui is able to provide professional solutions according to customers' actual needs.
