Warning Instructions For Use
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Uv Led Package Tianhui,16.5~21W 15 Days
Rated voltage:
11~14V
Consumption Power (W):
16.5~21W
Color:
UV
Lead_Time:
15 Days
Model:
THUV275T15WS400-6868
Product details of the uv led package
Product Overview
uv led package is quite attractive with its design. The product has many excellent features such as optimum performance, longer service life, and so on. Tianhui's uv led package is widely used in the industry. In addition to increasing the scale of uv led package production in China, the company has started direct investment in overseas market. .
Product Introduction
The main differences between Tianhui's uv led package and similar products are as follows.

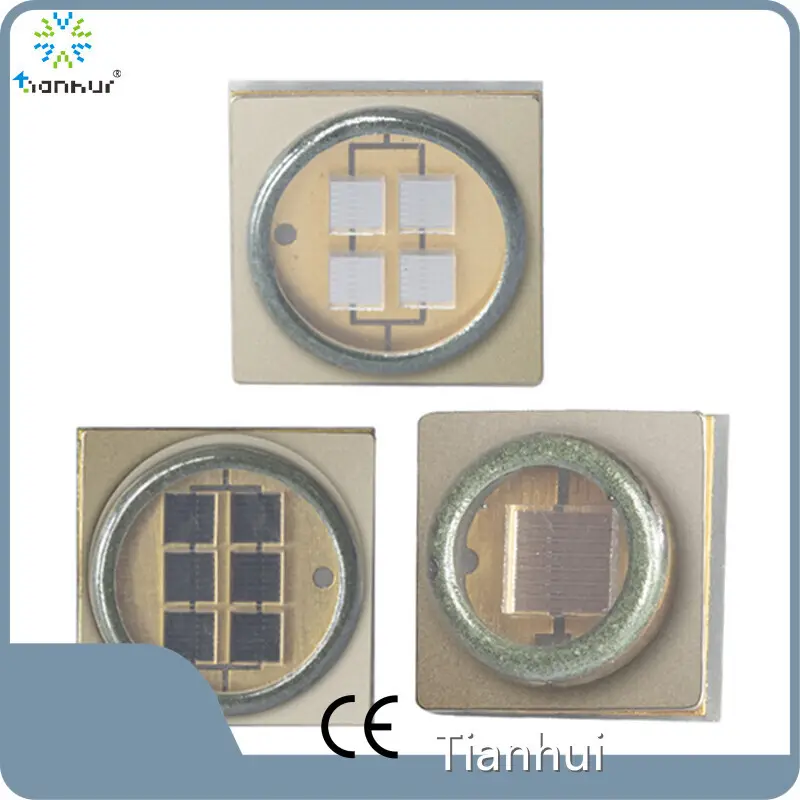

High Power SMD UVC LED Series for Air Sterilization Surface Water Sterilizing Disinfection
uvc led supplierThe sterilization characteristics of UVC LED：
In the field of sterilization and disinfection, UVC LED utilizes high-energy ultraviolet radiation to irradiate microorganisms and destroy the nucleic acid structure, thereby achieving the goal of microbial inactivation, and almost all microorganisms including bacteria, viruses, fungi, and algae can be inactivated.
UVC LED has the advantages of high sterilization efficiency, long service life, no chemical pollutants, simple operation, etc., and can be widely used in air, water and object surface disinfection and sterilization. With the global spread of novel coronavirus (COVID-19), UVC LED disinfection is considered as an effective method to eliminate novel coronavirus, which has been used in public places, transportation, personal protection and other fields, providing scientific and technological support to curb the spread of COVID-19.
Products such as sterilization lamp, disinfection bag, air disinfection and sterilization, water purification and sterilization device equipped with self-developed UVC LED have been launched, which are characterized by high luminous efficiency, low power consumption, high reliability, and a service life of more than 10000 hours. A variety of sterilization methods covering surface sterilization, air sterilization, water sterilization, etc. can be applied in family scenes.
The sterilization band is concentrated between 265nm and 280nm, and the lamp bead has high luminous efficiency. It only takes 3 minutes to complete the strong disinfection of items; Due to the environmentally friendly and non-toxic characteristics of UVC LED, this product can disinfect items with high safety requirements such as food, clothing, and baby pacifiers.
| PEAKWAVELENGTH | POWER | FORWARDVOLTAGE | FORWARDCURRENT | RADIANTFLUX | RADIATIONANGLE |
| 270~280nm | 16~21W | 11~14V | 1.5A | 600~800mW | 120 |
| APPLICATIONS |
Disinfection,
Sterilization,
Phototherapy,
Fluorescent Spectroscopy,
Sensor Light,
Bio-Analysis / Detection,
Counterfeit Detectors, etc
|
||||
| PEAKWAVELENGTH | POWER | FORWARDVOLTAGE | FORWARDCURRENT | RADIANTFLUX | RADIATIONANGLE |
| 270~280nm | 11~16.8W | 11~14V | 1~1.2A | 400~600mW | 120 |
| APPLICATIONS |
Disinfection,
Sterilization,
Phototherapy,
Fluorescent Spectroscopy,
Sensor Light,
Bio-Analysis / Detection,
Counterfeit Detectors, etc
|
||||
| PEAKWAVELENGTH | POWER | FORWARDVOLTAGE | FORWARDCURRENT | RADIANTFLUX | RADIATIONANGLE |
| 270~280nm | 2.5~4.9W | 5~7V | 0.5~0.7A | 80~120mW | 120 |
| APPLICATIONS |
Disinfection,
Sterilization,
Phototherapy,
Fluorescent Spectroscopy,
Sensor Light,
Bio-Analysis / Detection,
Counterfeit Detectors, etc
|
||||
Notes :
1. Peak Wavelength Measurement tolerance : ±3nm
2. Radiant Flux Measurement tolerance : ± 10%
3. Φe is the Total Radiant Flux as measured with an integrated sphere.
4. Forward Voltage Measurement tolerance : ±3%
5. RθJ-b is the thermal resistance between chip junction to PCB board bottom.
The PCB is made of aluminium and the size of PCB is 6.8mm by 6.8mm
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Introduction
Zhuhai Tianhui Electronic Co., Ltd. is a reliable company located in zhu hai. We always provide customers with high-quality UV LED Module, UV LED System, UV LED Diode. Tianhui, guided by customer needs, is committed to providing the best services for customers. Welcome all customers to come for cooperation.
