Uv Led Module 260~280nm Tianhui

Waterproof grade:
UV Wavelength:
UV radiation flux:
Rated voltage:

Product details of the uv led module

Quick Overview

Tianhui uv led module is manufactured leveraging on our in-depth technical expertise. The product produced by modern assembly line improves the reliability of quality. uv led module of Tianhui can be widely used in various fields. Innovation is the Gene of Zhuhai Tianhui Electronic Co., Ltd..

Product Information

Tianhui will present you the details of uv led module in the following section.

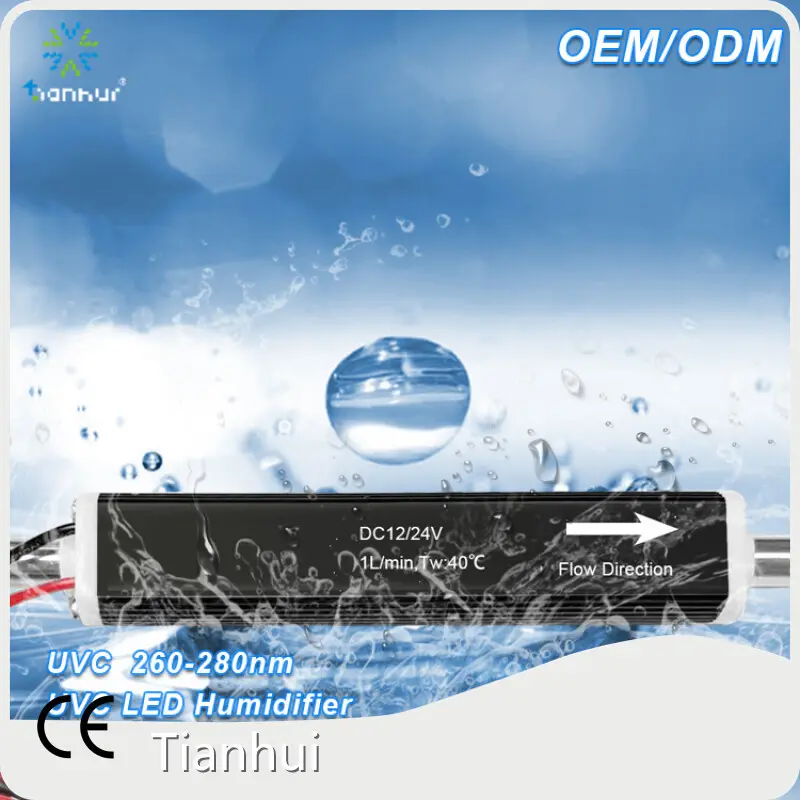

TH-UVC-CM01M is a UVC LED over-current water killing device

Bacterial module. Small size, environmental protection and safety of selected materials drinking water and food contact requirements.

The wavelength range of the UVC LED used is 260- 280nm, with excellent and efficient sterilization effect.

Inside UVC high reflectivity cavity can effectively improve the utilization of UV light. So as to significantly improve the bactericidal effec


Drinking machine Ice machine Air humidifier Air purifier
Aromatherapy machinePet water dispenser Dishwasher








Opening Hole size



Rated voltage

DC 12V or DC 24V


UVC radiation flux


1LPM ( Can fix 2LPM )

UVC Wavelength



Input current



Input power



Waterproof grade



Wire rod

UL1007 24AWG



XH2.54, White

Terminals can be customized

Lamp bead life

10,000 Hours

According LED

Dielectric Strength

DC500 V,1min@10mA, Input current


Φ16.3x80.4 (mm)

Net weight


Applicable water temperature



Storage temperature



Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
