Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Uv Led Curing System Disinfect 365~375nm 0.21~0.36W
UV Wavelength:
365~375nm
UV radiation flux:
40~60mW / 80~100mW
Rated voltage:
3~4V
Consumption Power (W):
0.21~0.36W
Model:
TH-UV(x)T1WPS40-3535F Series
Product details of the uv led curing system
Quick Detail
Innovative design concept: From appearance to construction, Tianhui uv led curing system is designed by our professional designers. They discuss to each other to ensure that each design has the innovative characteristics of industrial standard. This product is designed for both general and specialist use. Tianhui's uv led curing system is widely used in multiple industries and fields. The product has successfully got into the international market and has a broad market prospect.
Product Description
With a focus on product quality, Tianhui pursues perfection in every detail.

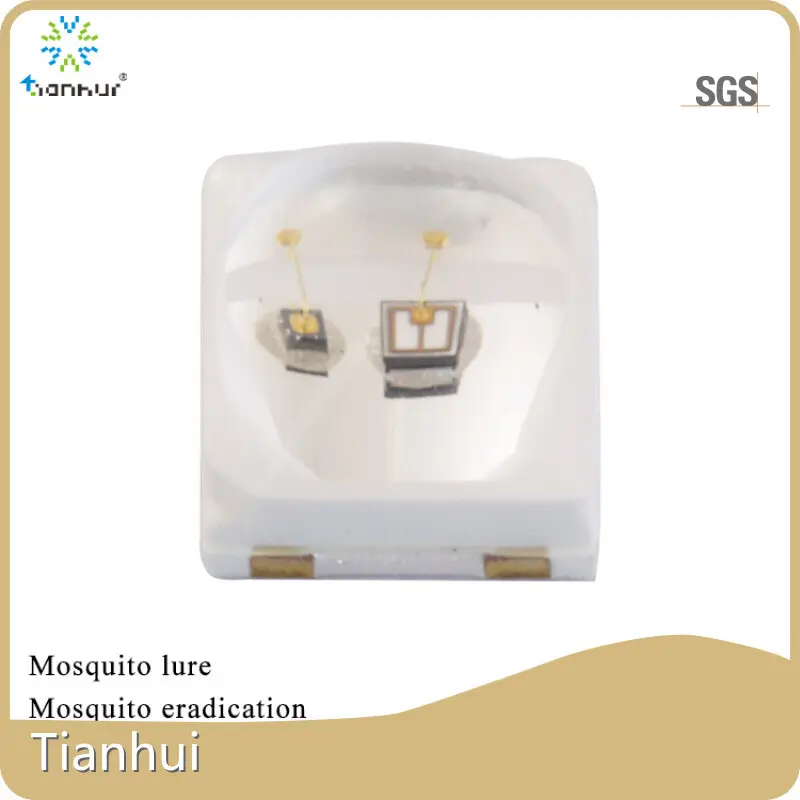

UV LED 365~375nm UVA LED Beads Series for Mosquito Lure Mosquito Eradication
| Items | Condition | Min. | Typ. | Max. | Unit |
| Forward Current | - | - | 60 | - | mA |
| Forward Voltage | IF=60mA | 3 | 3.5 | 4 | V |
| Radiant Flux | IF=60mA | 40 | - | 60 | mW |
| Peak Wavelength | IF=60mA | 365 | - | 375 | nm |
| Viewing Angle | IF=60mA | - | 120 | - | deg. |
| Spectrum Half Width | IF=60mA | - | 12 | - | nm |
| Themal Resistance | IF=60mA | - | 8.4 | - | ℃/W |
| Items | Condition | Min. | Typ. | Max. | Unit |
| Forward Current | - | - | 100 | - | mA |
| Forward Voltage | IF=100mA | 3 | 3.6 | 4 | V |
| Radiant Flux | IF=100mA | 80 | - | 100 | mW |
| Peak Wavelength | IF=100mA | 365 | - | 375 | nm |
| Viewing Angle | IF=100mA | - | 120 | - | deg. |
| Spectrum Half Width | IF=100mA | - | 12 | - | nm |
| Themal Resistance | IF=100mA | - | 8.4 | - | ℃/W |
UVA ultraviolet rays conform to the phototaxis response curve of insects and can be used to lure insects
The mosquito trap lamp emits blue light. The mosquito trap lamp uses a blue purple tube, and the light emitted by the tube belongs to the UVA in ultraviolet light, with the wavelength of the light being the key, ranging from 355 to 370 nanometers. Suggest choosing a stronger luminosity
apply
Do not place them in the same place for a long time. It is best to place the mosquito trap lamp above the knee height. Usually, a small stool can be used, but it should not exceed 180 centimeters, as this is the range where mosquitoes often fly, and a secluded place is the best choice. It is best to change the placement location frequently, and hidden corners and under the table are the best places.
Due to mosquitoes' preference for acidic substances, adding a little water and vinegar to the tray of the mosquito trap can increase its effectiveness. Using skincare products such as sheep oil and Chevrolet can also increase mosquito attraction.
Regularly clean mosquito traps and keep them clean, and mosquitoes usually do not approach their companions' bodies when they see them.
When using mosquito traps, other indoor light sources should be turned off. Because mosquitoes are disturbed, they cannot feel the light source of the mosquito trap lamp, greatly reducing the mosquito catching effect. Similarly, using mosquito traps during the day may result in poorer results.
Bedroom
Kitchen
Living Room
Garden/Deck
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Introduction
Zhuhai Tianhui Electronic Co., Ltd. is located in zhu hai with a convenient transportation. We are a company mainly engaged in UV LED Module, UV LED System, UV LED Diode management. Tianhui's goal is to become a leader in the industry with international influence. To achieve the goal, we make use of our own resource advantages and strengthen the brand building. We also strive to improve core competency. Tianhui takes talents cultivation seriously. This is why we establish a loyal and efficient talents team comes out. The team members have professional skills. Tianhui is committed to producing quality UV LED Module, UV LED System, UV LED Diode and providing comprehensive and reasonable solutions for customers.
We can provide you with high-quality products and look forward to your cooperation with us.
