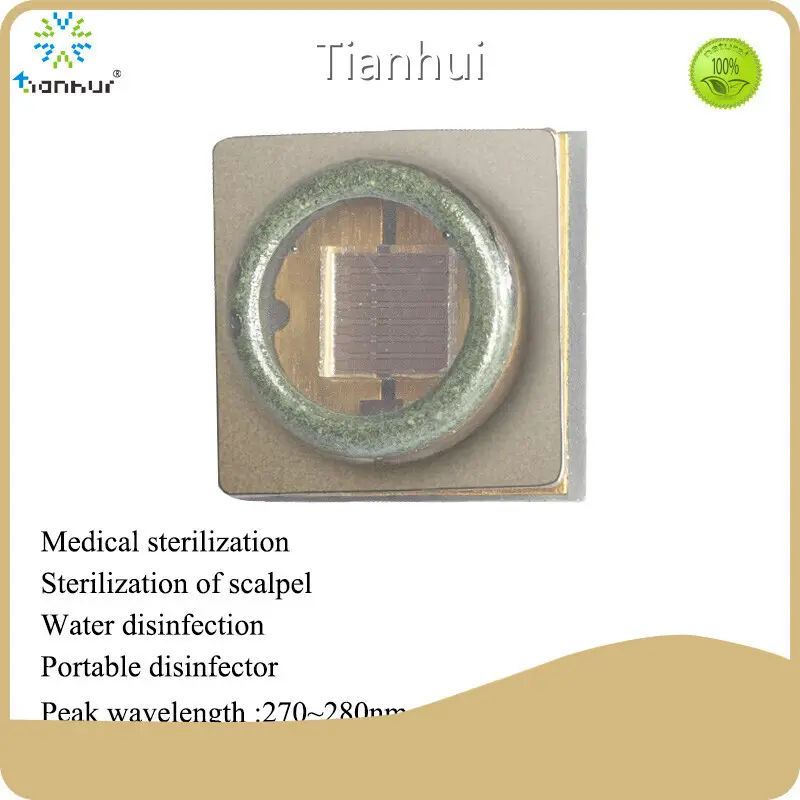

Uv Diodes 4.8~7V 1.68~2.59Wpersonalized 1

Uv Diodes 4.8~7V 1.68~2.59Wpersonalized 2

Uv Diodes 4.8~7V 1.68~2.59Wpersonalized 3

Uv Diodes 4.8~7V 1.68~2.59Wpersonalized 4

Uv Diodes 4.8~7V 1.68~2.59Wpersonalized

UV radiation flux:

35~80mW

Rated voltage:

4.8~7V

Consumption Power (W):

1.68~2.59W

Power consumption:

1.68~2.59W

Brand:

Tianhui

Inquiry

more products

UV LED Water Sterilization

UV LED Air Sterilization

UV LED Medical Use

UV LED Detection

UV LED Grow Light

UV LED Space Disinfection

UV LED Daily Use

Send your inquiry

Electro-Optical characteristics at mA
Items	Condition	Min.	Typ.	Max.	Unit
Forward Current	IF = 350mA		350		mA
Forward Voltage	IF = 350mA	4.8	5.8	7.0	V
Radiant Flux	IF = 350mA	35	50	80	mW
Peak Wavelength	IF = 350mA	250	255	260	nm
		260	265	270
		270	275	280
		280	285	290
		290	295	300
		300	305	310
		310	215	320
Viewing Angle	IF = 350mA		120		deg.
Spectrum Half Width			10		nm
Thermal Resistance			15.2		ºC /W

About UVC(270~280nm) wavelength

Main applications of UVC include water/air/surface disinfection/purification, analytical instruments (spectrophotometry, liquid chromatography, gas chromatography, etc.), mineral analysis. The UVC band has short wavelength and high energy, which can destroy the molecular structure in cells, prevent its reproduction by destroying the DNA and RNA of microorganisms, and can efficiently and quickly kill bacteria with a broad spectrum. It is widely used in the sterilization and disinfection of water, air, etc.

As an efficient and environmentally friendly ultraviolet disinfection technology, UVC LED chips have been widely used in various fields in recent years. Its small and portable features and excellent disinfection effect make it the first choice for many industries and fields. Next, we will explore together in which application fields UVC LED chips have shown unique advantages.

1. Household disinfection: The family is our warmest place, but it is also an important place for germs to breed. UVC LED chips are widely used in household disinfection equipment, such as household air purifiers, dishwashers, washing machines, etc. These devices use the ultraviolet rays emitted by UVC LED chips to efficiently kill bacteria and viruses in the air and on the surface of objects, making the home environment cleaner and more hygienic.

2. Medical and health: In the medical field, UVC LED chips are used in operating rooms, diagnostic equipment, and medical water treatment. By integrating UVC LED chips into medical equipment, rapid and reliable disinfection can be achieved, greatly reducing the risk of cross-infection. In addition, UVC LED chips can also be used for disinfection of personal protective equipment such as sterilization boxes and medical masks to ensure the safety of medical staff and patients.

3. Food safety: Food safety has always been a concern, and UVC LED chips play an important role in this field. It can be used in food processing equipment, food storage areas and sanitary equipment in catering establishments. By using UVC LED chips for food disinfection, it can efficiently kill bacteria and viruses on the surface of food, ensuring food safety and hygiene.

4. Water treatment: Water is an essential resource in life, and UVC LED chips can play an important role in water treatment. It can be applied to tap water purification equipment, drinking fountains, swimming pools, etc. By using UVC LED chips to sterilize water with ultraviolet light, it can efficiently kill bacteria, viruses, algae and other microorganisms in water

CUD73F4A (270-280nm)

TH-UV275A-WOB-1A(270-280nm)

TH-UV275-WOB-16(270-280nm)

CUD7GF1A(270-280nm)

TH-UV275T25WS600-6868(270-280nm)

TH-UV275T15WS400-6868(270-280nm)

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Advantages

· The production standards of Tianhui uv diodes are the highest in the industry.

· The lasting and stable performance gives the product a great advantage to compete in the industry.

· The product will soon become the standardized one in the field.

Company Features

· Zhuhai Tianhui Electronic Co., Ltd. aims to be a top player based on the uv diodes along with attentive service.

· We possess the advantage of a team of foreign trade talents. Their wealth of product knowledge and analytical skills in the uv diodes industry allow the company to resolve customers’ problems promptly.

· We follow green practices. Throughout the business, we operate a strict policy to ensure that all of our processes, from manufacture to transportation, reduce the carbon footprint.

Application of the Product

The uv diodes produced by our company is widely used in various industries and fields.

Our solutions are developed by understanding the customer's situation and combining the current market conditions. Therefore, they are all targeted and can effectively solve problems of customers.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
