Warning Instructions For Use
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.

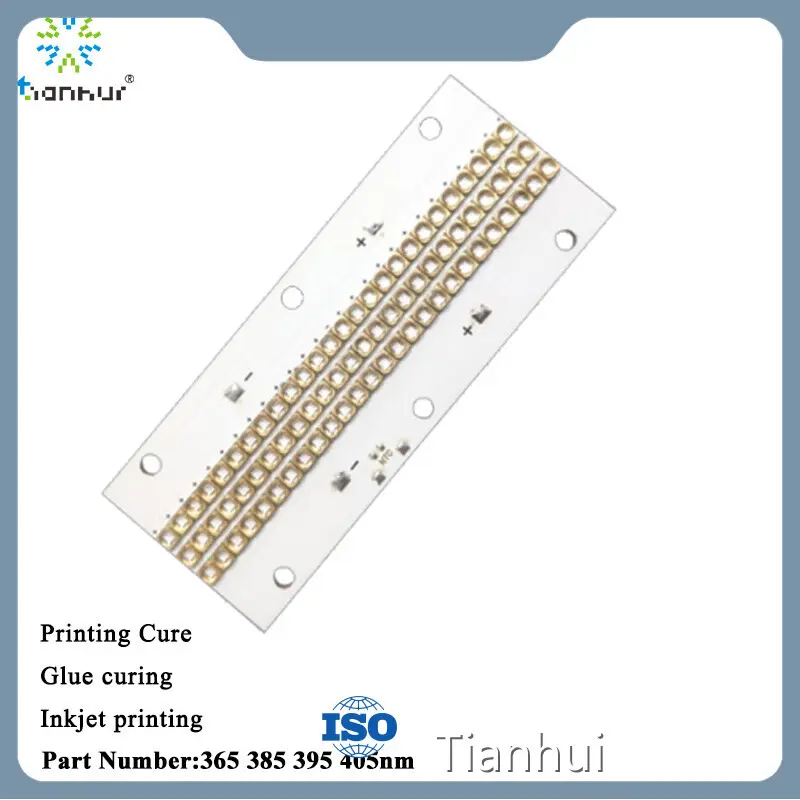

Uv 385 Nm 365~405nm Tianhui
UV Wavelength:
365~405nm
UV radiation flux:
8~10 / 12~15 (W/cm^2)
Rated voltage:
44~50V
Consumption Power (W):
100~250W
Power:
100~250W
| PEAK WAVELENGTH | POWER | FORWARD VOLTAGE | FORWARD CURRENT | RADIANT FLUX | RADIATION ANGLE |
| 365nm | 100~200W | 46~50V | 3~4A | 8~10W/cm^2 | 30/60 |
| 385nm | 100~250W | 44~48V | 3~6A | 12~15W/cm^2 | 30/60 |
| 395nm | 100~250W | 44~48V | 3~6A | 12~15W/cm^2 | 30/60 |
| 405nm | 100~250W | 44~48V | 3~6A | 12~15W/cm^2 | 30/60 |
| APPLICATIONS | Applications/Air Purification/Glue Curing/Fluorescence Detection | ||||
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Advantages
· Tianhui uv 385 nm is designed and developed as per international industrial standards using top quality raw materials.
· The new features of area of uv 385 nm would make it highly marketable.
· Zhuhai Tianhui Electronic Co., Ltd.'s advantages are well known by our customers.
Company Features
· Zhuhai Tianhui Electronic Co., Ltd. aims to firmly establish the company's leading position in the uv 385 nm industry.
· First-class equipment, production technology and business management guarantee the first-class quality of Tianhui.
· Zhuhai Tianhui Electronic Co., Ltd. strives to achieve continuous improvement on uv 385 nm. Get an offer!
Application of the Product
The uv 385 nm produced by Tianhui is widely used in industry.
Tianhui insists on providing customers with UV LED Module, UV LED System, UV LED Diode of high quality and a one-stop solution that's comprehensive and efficient.
