Top Led Uva Uvb Price List
UV Wavelength:
340~350nm
Rated voltage:
3.8V
Consumption Power (W):
0.08W
Brand:
SVC
Product details of the led uva uvb
Quick Detail
All materials of led uva uvb meet global standards. Its performance can meet the requirements of customers. Strong production strength of Zhuhai Tianhui Electronic Co., Ltd. shows the ability to be your first choice for cooperation.
Product Introduction
led uva uvb is more competitive than other products in the same category, as shown in the following aspects.
UVA 340nm Led, 350nm, 345nm UV LED
uv led manufacturers uv led board uv led modules uv led diode
Product characteristics
The emission peak is 335-350nm and matched with the sensor
Good linearity and spot of light output
The operating temperature range is -20 ° C to 60 ° C
Efficient output optical power and good stability
Fast response speed
High reliability TO46 packaging with good heat dissipation
Compliant with ROHS standards
UVA ultraviolet lamp refers to a general term for long wavelength ultraviolet lamps with a wavelength of 320-400nm. In addition to fixed ultraviolet lamps, UVA ultraviolet lamps also include 340nm LED ultraviolet medical testing, water testing, air testing, and blood testing. UVA ultraviolet lamps, as long wavelength ultraviolet lamps, have the characteristic of strong penetration. It is widely used in industries such as industry, Criminal investigation, minerals, aquaculture and medical treatment. Today we will discuss the application of ultraviolet 340nm UV LED light sources.

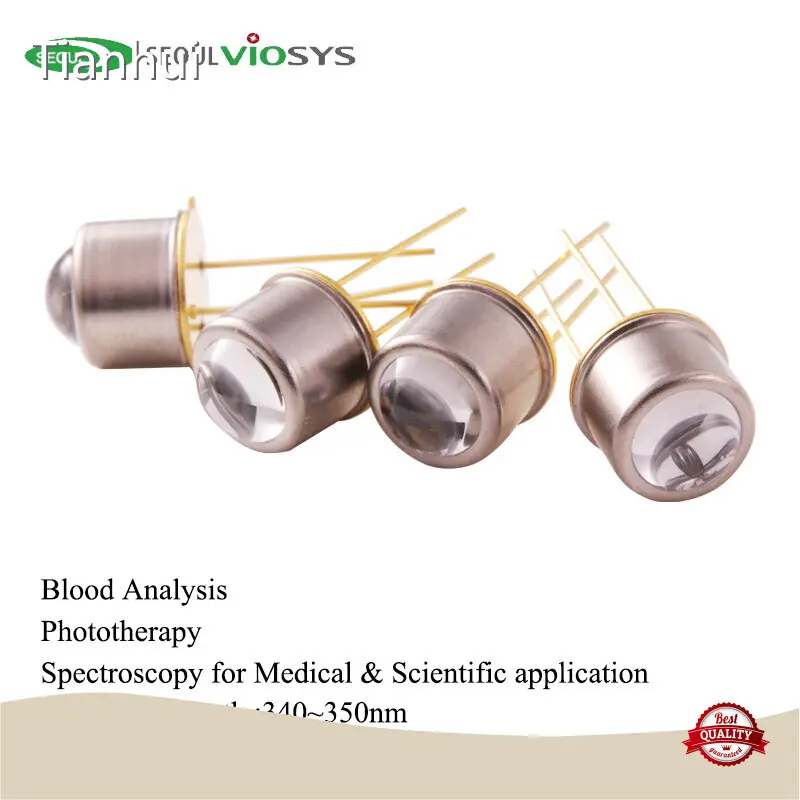

Seoul Viosys SVC Ultraviolet UVA UV-LED 340 nm 345nm 350 nm For Blood Analysis Phototherapy Spectroscopy
for Medical & Blood analysis and testing & Scientific application & Water detection & Air detection......
| Parameter | Min. | Typ. | Max. | Unit |
| Peak Wavelength | 340 | 345 | 350 | nm |
| Radiant Flux | 1 | 1.5 | 2 | mW |
| Forward Voltage | 3.2 | 3.8 | 4.5 | V |
| Spectrum Half Width | - | 10.4 | - | nm |
| View Angle | - | 5.1 | - | deg. |
Zhuhai Tianhui Electronic Co., Ltd. was founded in 2002 . This is a production oriented and high technology company integrated research and development, production, sales and solution providing of UV LEDs, which is specialized in doing UV LED packaging and providing UV LED solutions of finished products for various UV LED applications.
Tianhui electric has been engaging in UV LED package with full production series and stable quality and reliability as well as competitive prices. The products include UVA, UVB, UVC from short wavelength to long wavelength and complete UV LED specifications from small power to high power.
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
