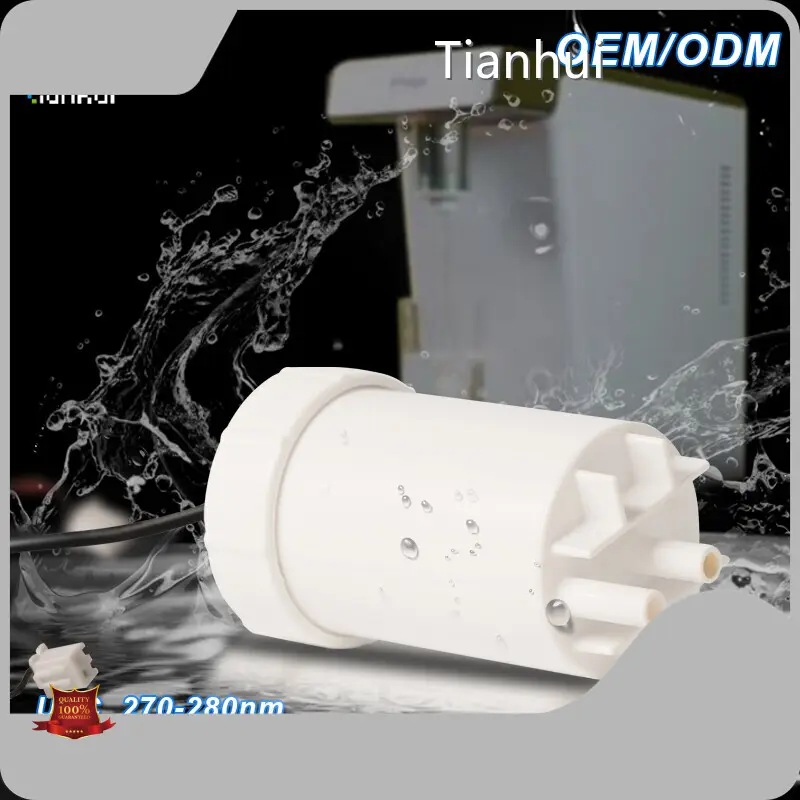

Tianhui Uvc Module for Bottle for Treatment - Tianhui
Company Advantages
· With the help of experienced craftsman, Tianhui uvc module for bottle is produced following the highest production standards.
· It has exemplary quality as it is produced with testing equipment and production technology. .
· The product is being increasingly important and widely applied because of its remarkable economic return.
feature
1. Tianhui TH-UVC-PA01-B UVC Led module is specially designed for water disinfection and sterilization. The package emits 265nm UV LED, 275nm UV LED, 280nm UV LED, which can penetrate cells and damage nucleic acids, subsequently causing them to lose microbial activity or die.
2. UV-C LED modules emit UV-C radiation designed to reduce 99.9% of microorganisms and prevent their growth in water1). This reduces unpleasant odors caused by bacteria buildup in or on the equipment, resulting in less maintenance.
3.UVC led module features and safety
UVC lamp: high-quality 265nm , 275nm, 280nm uv led
Radiated power: typically 3.5 mW
Installation: Very easy to install using tape
Operation: Can be operated directly via USB power supply
Safety: LED status indicator lights up during operation
Compliance: RoHS compliant
|
Brand |
Tianhui |
|
Module |
TH-UVC-PA01-B |
|
UVC Wavelength |
265nm uv led ~280nm uv led |
|
Input Current |
300mA |
|
Waterproof Grade of Shell |
IP65 |
|
Rated Voltage |
DC24V |
|
UVC Radiation Flux |
50~240mW |
|
Applicable Water Temperature |
0℃~40℃ |
|
Size |
φ49*90mm |
|
Applicable Water Pressure |
0.5~1Mpa |
265nm 275nm 280nm UVC Led Module Application
Drinking machine/lce machine/Kitchen water purifier
Air humidifier/Pet water dispenser/Tea bar machine
Price Description: please consult with our sales staff for specific prices.
Contact us for real-time quotation, better price for large quantities!
| UVC Led water sterilizer Product Information | ||
| Item | Specification | Remark |
| Module | TH-UVC-PA01-B | - |
| Water Pipe interface | 1/4”, quick connector | Customizable |
| Rated Voltage | DC24V | Customizable |
| UVC Radiation Flux | 50~240mW | Matched 1~5LPM |
| Input Current | 300mA | According to LED Selection |
| Input Power | 5~15W | Matched 1~5LPM |
| Waterproof Grade of Shell | IP65 | - |
| Applicable Water Pressure | 0.5~1Mpa | Optional |
| Wire Rod | 200±10mm | Line Length can be Customized |
| Terminals | XH2.54,White | Terminals can be Customized |
| Lamp Bead Life | 10000~25000 Hours | According to LED Selection |
| Dielectric Strength | DC500 V, 1min@10mA, Leakage Current | |
| Size | φ49*90mm | |
| Net weight | 91±5g | |
| Applicable Water Temperature | 0℃~40℃ | - |
| Storage Temperature | -40℃~85℃ | - |
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Features
· Zhuhai Tianhui Electronic Co., Ltd. is a highly acclaimed organization which deals in the manufacture, supply and trade of uvc module for bottle of high quality to the clients.
· Based on the application of leading technology, uvc module for bottle has made great achievement in its finest quality.
· Making a greater contributions to the development of uvc module for bottle is our long-lasting goal. Inquire!
Product Details
Next, Tianhui will show you the details of uvc module for bottle.
Application of the Product
Tianhui's uvc module for bottle is available in a wide range of applications.
With rich manufacturing experience and strong production strength, Tianhui is able to provide professional solutions according to customers' actual needs.
Product Comparison
The quality of Tianhui's uvc module for bottle is better than the quality of its peer products. It is shown in the following aspects.
