Tianhui Uv Led Curing Equipment Brand 20-60mW Custom

UV Wavelength:

340~350nm

Rated voltage:

3.4-5.0V

Led Power:

20-60mW

Product name:

TH-UV340T1WPS-3535H-60 TH-UV340T1WPS-3535F

Input current:

350mA

Inquiry

Product details of the uv led curing equipment

Product Information

The design of Tianhui uv led curing equipment complies with the industrial design concepts. Because uv led curing equipment is really economical in price, it will have a bright future. Available in different sizes, the product is extensively used in the field.

345nm UV LED or 340nm to 350 nm UV LED

uv led manufacturers uv led board uv led modules uv led diode

345nm UV LED Product characteristics

The emission peak is 335-350nm and matched with the sensor

Good linearity and spot of light output

The operating temperature range is -20 ° C to 60 ° C

Efficient output optical power and good stability

Fast response speed

High reliability TO46 packaging with good heat dissipation

Compliant with ROHS standards

UVA ultraviolet lamp refers to a general term for long wavelength ultraviolet lamps with a wavelength of 320-400nm. In addition to fixed ultraviolet lamps, UVA ultraviolet lamps also include 345nm uv led ultraviolet medical testing, water testing, air testing, and blood testing. UVA ultraviolet lamps, as long wavelength ultraviolet lamps, have the characteristic of strong penetration. It is widely used in industries such as industry, Criminal investigation, minerals, aquaculture and medical treatment. Today we will discuss the application of ultraviolet 340nm light sources.

77c6a7efce1b9d16dcd7015ba3b6db888c546463

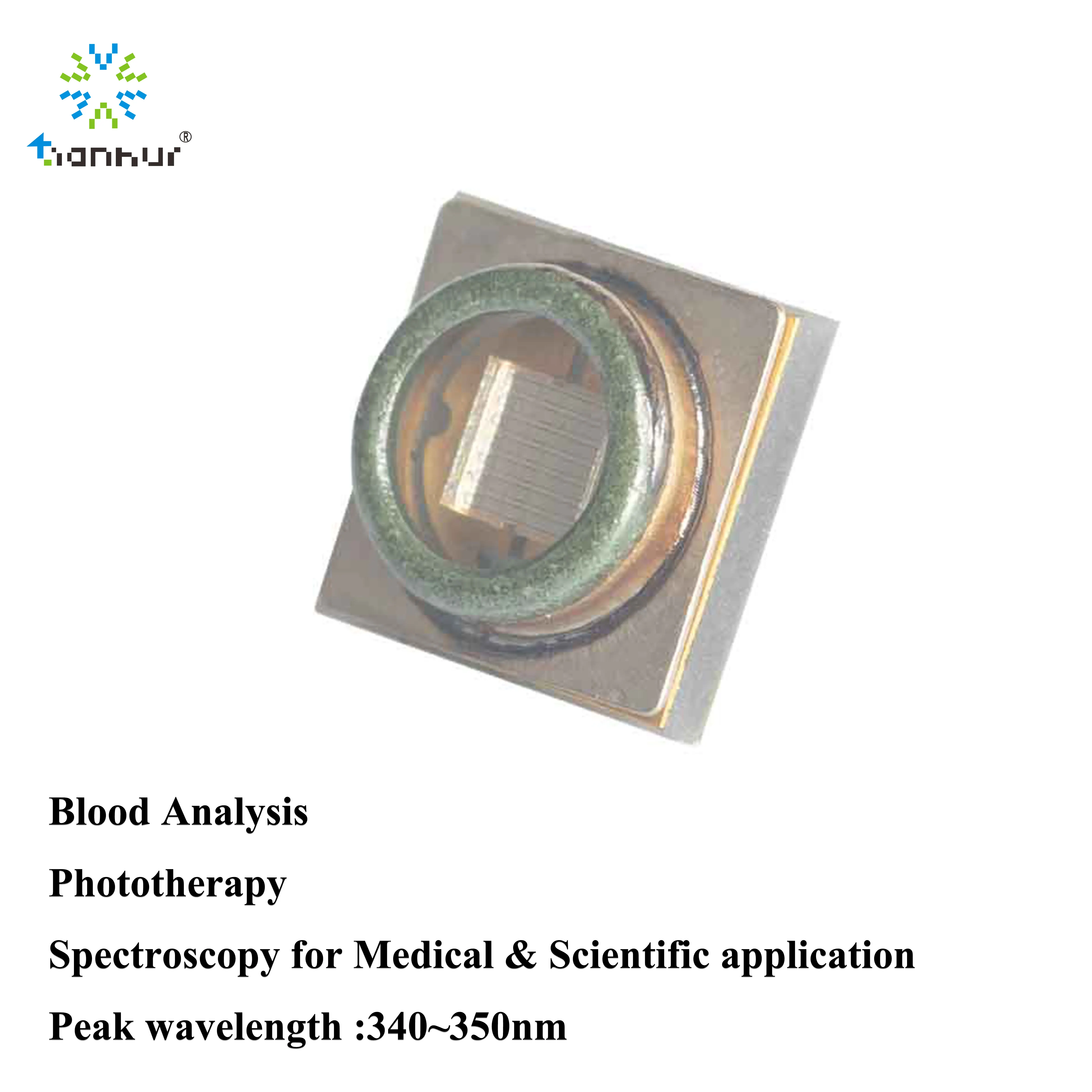

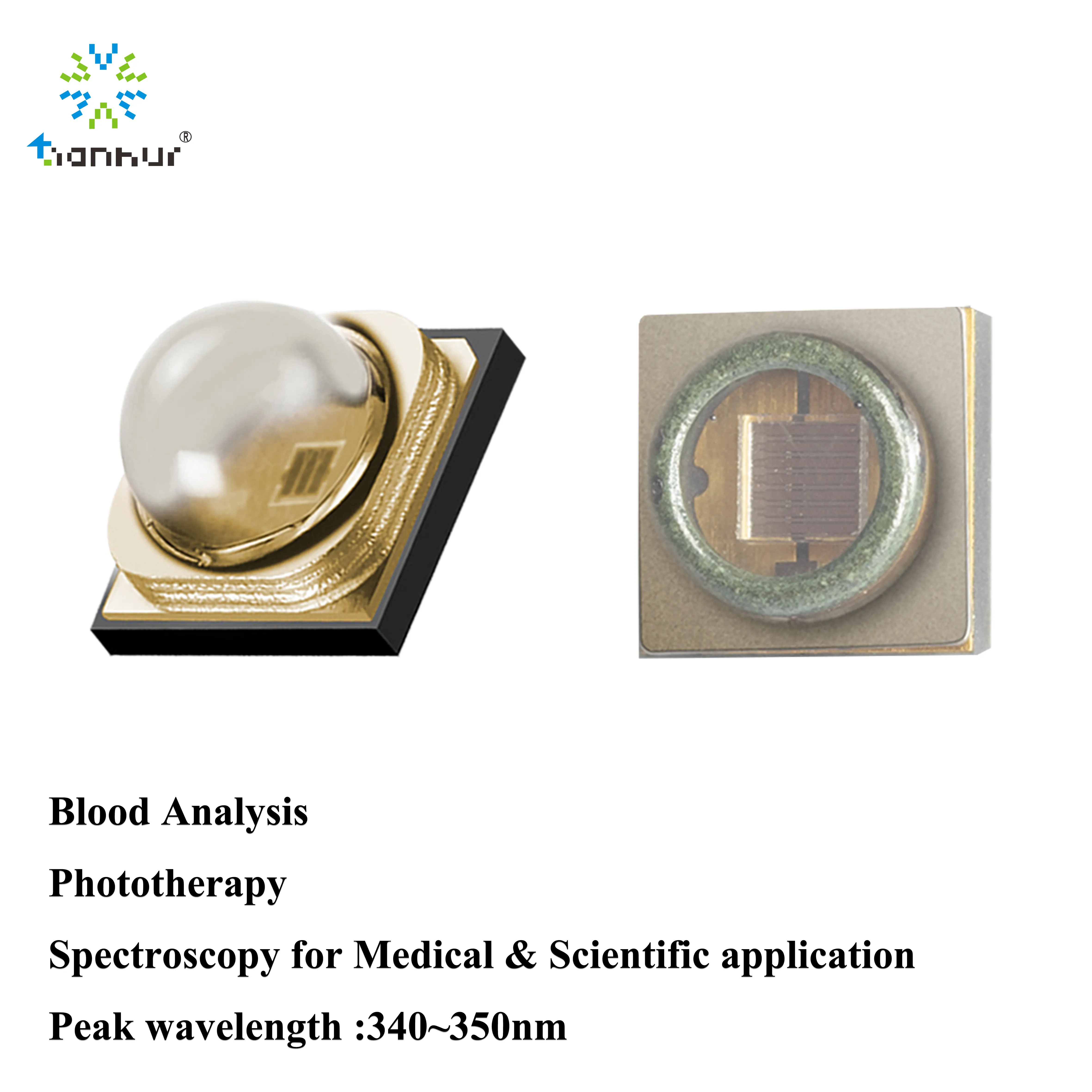

Seoul Viosys SVC Ultraviolet UVA UV-LED 345 nm uv led For Blood Analysis Phototherapy Spectroscopy

for Medical & Blood analysis and testing & Scientific application & Water detection & Air detection......

Parameter	Min.	Typ.	Max.	Unit
Peak Wavelength	340	345	350	nm
Radiant Flux	20	-	60	mW
Forward Voltage	3.2	3.8	4.5	V
Spectrum Half Width	-	12	-	nm
View Angle	-	60	-	deg.

Parameter	Min.	Typ.	Max.	Unit
Peak Wavelength	340	345	350	nm
Radiant Flux	20	-	60	mW
Forward Voltage	3.4	3.8	5.0	V
Spectrum Half Width	-	12	-	nm
View Angle	-	60	-	deg.

Zhuhai Tianhui Electronic Co., Ltd. was founded in 2002 . This is a production oriented and high technology company integrated research and development, production, sales and solution providing of UV LEDs, which is specialized in doing UV LED packaging and providing UV LED solutions of finished products for various UV LED applications.

Tianhui electric has been engaging in UV LED package with full production series and stable quality and reliability as well as competitive prices. The products include UVA, UVB, UVC from short wavelength to long wavelength and complete UV LED specifications from small power to high power.

CUD73F4A (270-280nm)

TH-UV275A-WOB-1A(270-280nm)

TH-UV275-WOB-16(270-280nm)

CUD7GF1A(270-280nm)

TH-UV275T25WS600-6868(270-280nm)

TH-UV275T15WS400-6868(270-280nm)

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
