Tianhui Uv Led 405 Nm DC 12Vwith Custom Services

Product details of the uv led 405 nm

Quick Detail

The materials of Tianhui uv led 405 nm are properly labeled, stored and traceable. Its quality is ensured for a better global competitiveness. Zhuhai Tianhui Electronic Co., Ltd. has passed ISO9001 quality certification and established a perfect quality assurance system and after-sales service system.

Product Information

Tianhui's uv led 405 nm has better quality than other products in the industry, which is specifically shown in the following aspects.

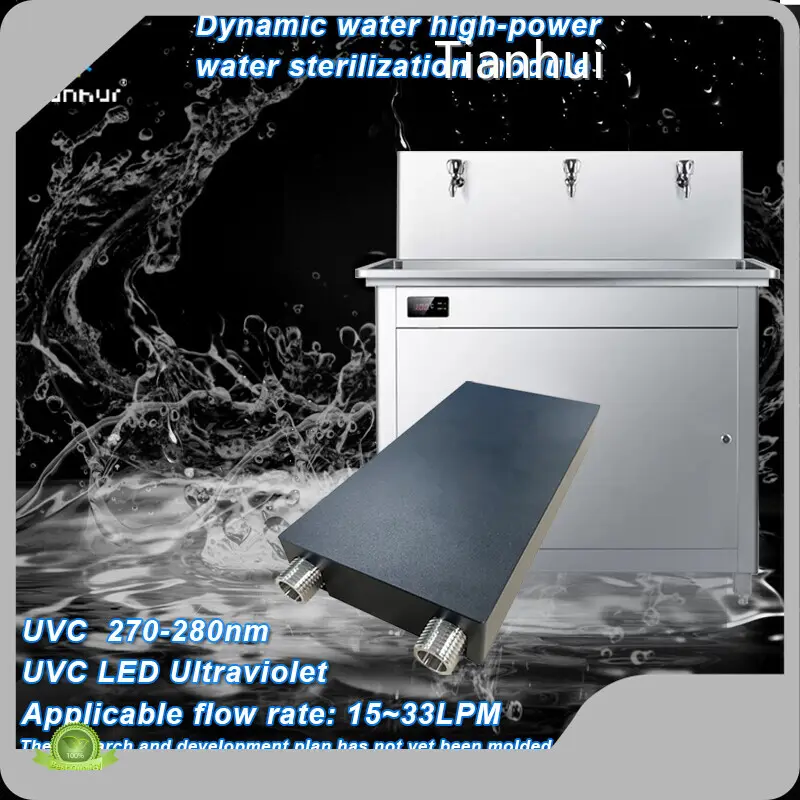

Technical parameters(Preliminary)

1.Rated Voltage：DC24V

2.lnput current：1.2~1.5A

3.Power consumption：28~36W

4.UVC radiant flux：700~1000mW(TBD)

5.UVC peak wavelength：275nm

6. Sterilization rate：>99.9%@25LPM(E.coli)

7.Protective class：P60

8.UVC LED lifespan：L70>2000h(TBD)

9. Applicable flow rate：15~33LPM

   (Sterilization rate declines when flow rate exceeds 25LPM)

10.Applicable water temperature：4~40C

11. Applicable water pressure： <0.4MPa

12. Pressure drop(Pme_-mm)： 25KPa@25LPM，44KPa@33LPM

     (Simulatin result)

13. Wading materials：SUS304， Quartz glass，Food-grade silicone rubber
