Description
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Tianhui Uv Led 400 Nm 100mAseries
Waterproof grade:
IP67
UV radiation flux:
40~150mW
Product name:
TH-UVC-PA04
Input current:
100mA
Brand:
Tianhui
Product details of the uv led 400 nm
Quick Detail
From the materials to designs, Tianhui uv led 400 nm is totally guaranteed by our professional expertise. Manufactured in our own technologically-advanced facility, the product is quality-assured. With the characteristics that are highly attractive to buyers, the product is sure to be more widely applied in the market.
Product Description
Tianhui's uv led 400 nm has better performances, as shown below.

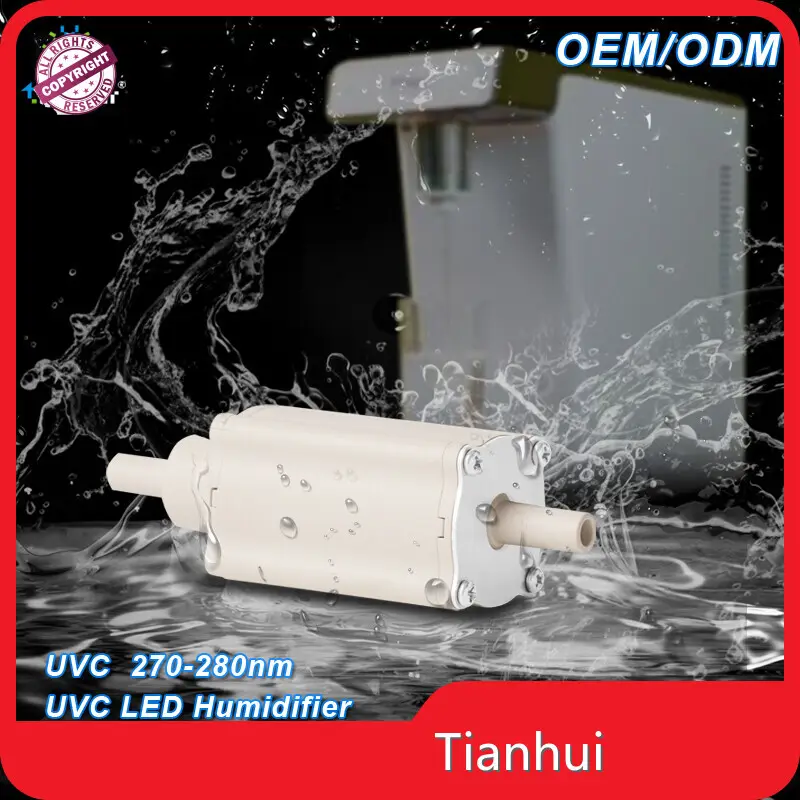

TH-UVC-PA04 is a overcuttent UVC LED water disinfection module. The circuit's driver board is built into the module's interior to save space. The UVC LED module relies on water flow to dissipate heat and comes with a water flow switch to prevent burnout due to water cutoff. The module is suitable for installation in the middle section of the water circuit.
The UVC LEDs used have a wavelength range of 270-280nm UV LED and have excellent and efficient sterilization effects. The internal UVC high reflectivity cavity can effectively improve the utilization of UV light, thus significantly enhancing the sterilization effect. With extensive industry experience, our 270nm 275nm 280nm UVC LED module for flowing water UV disinfection water treatment guarantees effective and reliable sterilization.
UVC sterilization is an effective treatment for the diverse microorganisms that exist in the environment. Use UV light for sterilizing water, use UV light for sterilizing water, enjoy safe, pure, and germ-free water every time. Immediate investment and health!
Application
| Drinking machine | Ice machine | Air humidifier |
| Air purifier | Pet water dispenser | Dishwasher |
Parameters
|
Item |
Specifications |
Remark |
|
Model |
TH-UVC-DEM04 |
- |
|
Rated voltage |
DC 12V |
Customizable |
|
UVC radiation flux |
≥5mW |
- |
|
UVC Wavelength |
270-280nm uv led |
- |
|
Input current |
50±10mA |
According to the lamp bead selection |
|
Input power |
0.6W |
- |
|
Waterproof grade |
IP67 |
- |
|
Wire rod |
200±10mm |
Customizable |
|
Terminals |
XHB2.54，2Pin，yellow |
Customizable |
|
Lamp bead life |
>10,000 hours |
- |
|
Dielectric Strength |
DC500 V,1min@10mA, Leakage current |
|
|
Working temperature |
-25℃-40℃ |
- |
|
Storage temperature |
-40℃-85℃ |
- |
Remarks
Peak wavelength（ λ p) The measurement tolerance is ±3nm.
Radiant flux（ Φ e) Measurement tolerance±10%.
The measurement tolerance of forward voltage (Vf) is±3%.
Overall dimension
Packaging method (reference standard data)
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Advantages
As one of the most well-known uv led 400 nm exporters, Zhuhai Tianhui Electronic Co., Ltd. is going to increase its capacity and grow stronger. This uv led 400 nm is the most common product but with the highest quality. Centering on improving company capabilities to adapt to market competition is important for Tianhui now.
Don't forget to contact us to order.
