Multiple use options
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Tianhui Uv Led 265nm 10manufacturing
UV Wavelength:
365~375nm
UV radiation flux:
40~60mW / 80~100mW
Minimum order quantity:
10
Color:
UV
Model:
TH-UV(x)T1WPS40-3535F Series
Product details of the uv led 265nm
Product Introduction
Tianhui uv led 265nm is designed by the concerted effort of strong R&D team and design team. The product has increased its competitiveness with its improved quality, performance, and service life. This product has many excellent properties and is suitable for a variety of applications.

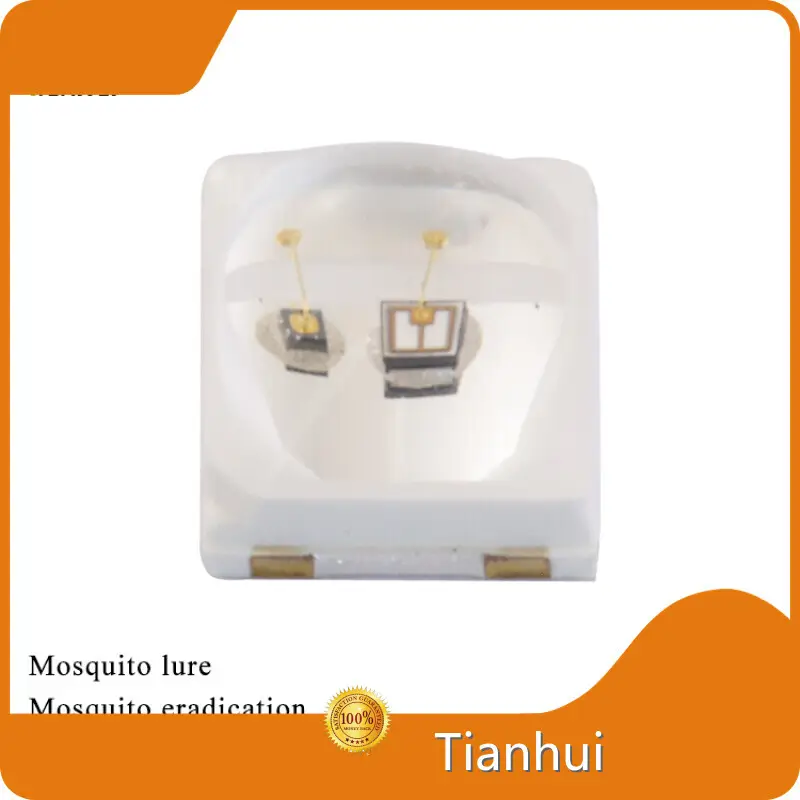

UV LED 365~375nm UVA LED Beads Series for Mosquito Lure Mosquito Eradication
| Items | Condition | Min. | Typ. | Max. | Unit |
| Forward Current | - | - | 60 | - | mA |
| Forward Voltage | IF=60mA | 3 | 3.5 | 4 | V |
| Radiant Flux | IF=60mA | 40 | - | 60 | mW |
| Peak Wavelength | IF=60mA | 365 | - | 375 | nm |
| Viewing Angle | IF=60mA | - | 120 | - | deg. |
| Spectrum Half Width | IF=60mA | - | 12 | - | nm |
| Themal Resistance | IF=60mA | - | 8.4 | - | ℃/W |
| Items | Condition | Min. | Typ. | Max. | Unit |
| Forward Current | - | - | 100 | - | mA |
| Forward Voltage | IF=100mA | 3 | 3.6 | 4 | V |
| Radiant Flux | IF=100mA | 80 | - | 100 | mW |
| Peak Wavelength | IF=100mA | 365 | - | 375 | nm |
| Viewing Angle | IF=100mA | - | 120 | - | deg. |
| Spectrum Half Width | IF=100mA | - | 12 | - | nm |
| Themal Resistance | IF=100mA | - | 8.4 | - | ℃/W |
UVA ultraviolet rays conform to the phototaxis response curve of insects and can be used to lure insects
The mosquito trap lamp emits blue light. The mosquito trap lamp uses a blue purple tube, and the light emitted by the tube belongs to the UVA in ultraviolet light, with the wavelength of the light being the key, ranging from 355 to 370 nanometers. Suggest choosing a stronger luminosity
apply
Do not place them in the same place for a long time. It is best to place the mosquito trap lamp above the knee height. Usually, a small stool can be used, but it should not exceed 180 centimeters, as this is the range where mosquitoes often fly, and a secluded place is the best choice. It is best to change the placement location frequently, and hidden corners and under the table are the best places.
Due to mosquitoes' preference for acidic substances, adding a little water and vinegar to the tray of the mosquito trap can increase its effectiveness. Using skincare products such as sheep oil and Chevrolet can also increase mosquito attraction.
Regularly clean mosquito traps and keep them clean, and mosquitoes usually do not approach their companions' bodies when they see them.
When using mosquito traps, other indoor light sources should be turned off. Because mosquitoes are disturbed, they cannot feel the light source of the mosquito trap lamp, greatly reducing the mosquito catching effect. Similarly, using mosquito traps during the day may result in poorer results.
Bedroom
Kitchen
Living Room
Garden/Deck
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
