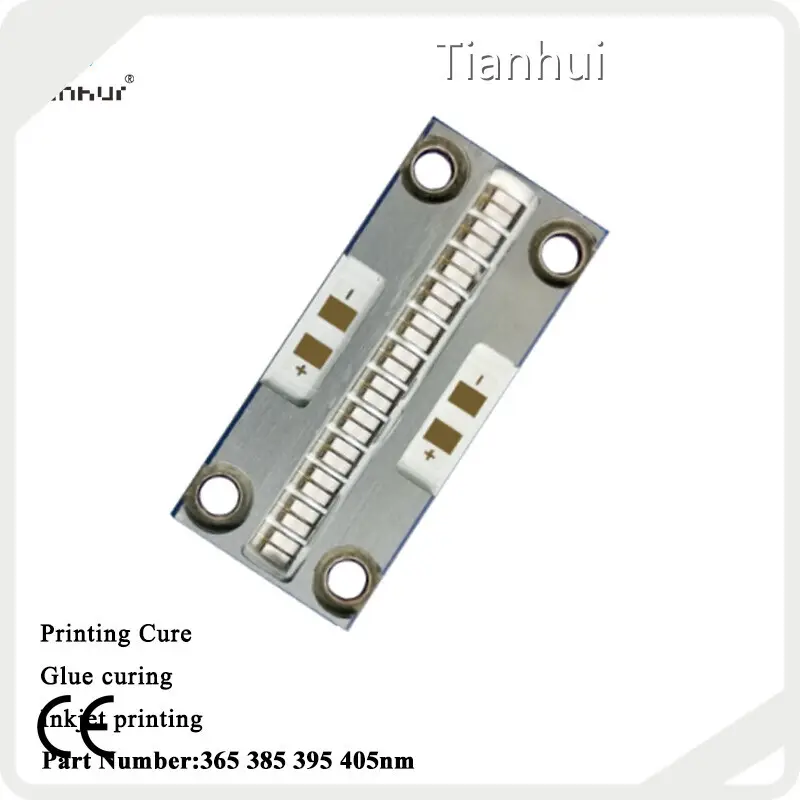

Tianhui UV Curing COB Brand 5~10mW/cm^2 40~60W 40~45V

Product details of the UV curing COB

Product Description

Tianhui's designers have begun to dare to make breakthroughs in the design of UV curing COB. As we have stringently checked the quality on each stage of production, the product must be in compliance with international quality standards. Each staff of Tianhui has been skilled in UV curing COB industry for years.

PEAK WAVELENGTH	POWER	FORWARD VOLTAGE	FORWARD CURRENT	RADIANT FLUX	RADIATION ANGLE
365nm	40~60W	40~45V	1~1.4A	5~7W/cm^2	30/60
385nm	40~80W	39~44V	1~2A	8~10W/cm^2	30/60
395nm	40~80W	39~44V	1~2A	8~10W/cm^2	30/60
405nm	40~80W	39~44V	1~2A	8~10W/cm^2	30/60
APPLICATIONS	Applications/Printing Cure/Glue Curing/Inkjet Printing

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Feature

• With a focus on talents cultivation, Tianhui established an innovative talent team. The team members have innovative thinking and management capabilities.
• Under years of rapid development, Tianhui has greatly enhanced the comprehensive strength. We have been equipped with a strong technical force and superb production technology.
• We have established extensive trade relations and a huge marketing network at home and abroad. Domestic and foreign customers have come to place order of our products based on their trust for our company.
• Tianhui is located in a unique geographical position with pleasant climate and rich resources. Meanwhile, the traffic convenience is conducive to the circulation and transportation of products.
Leave your contact information, and Tianhui will provide you with quotations of various textile products for your reference.
