Tianhui Svc 365nm Uv Led Disinfect

The Seoul Viosys 305nm 310nm 315nm LED provides effective air and water sterilization. With advanced deep ultraviolet technology, it ensures thorough and efficient purification, safeguarding against harmful bacteria and viruses.

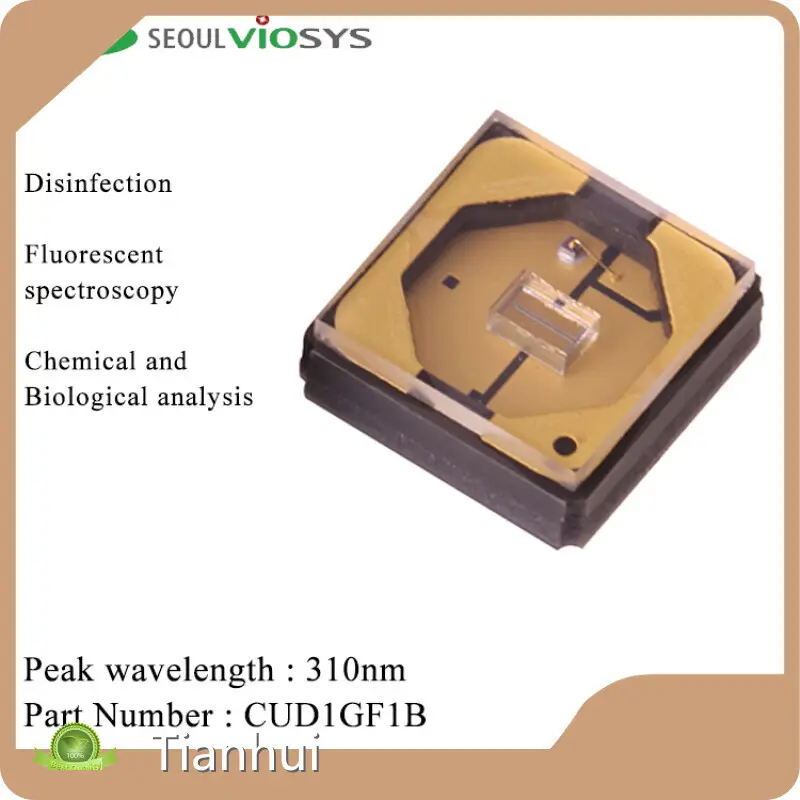

Seoul Viosys CUD1GF1B is a deep ultraviolet light emitting diode with peak emission wavelengths from 305nm to 315nm.

The UVC LED chip is sealed in ceramic packages including an optical transparent window.

It incorporates state of the art SMD design and low thermal resistance. This advanced technology ensures effective sterilization for air and water.



CUD1GF1B is designed for air and water sterilization and tools including chemical and biological analysis in that spectral range. Experience the power of clean and safe environments with this reliable and high-performance product.



Application

这是一段描述

Air And Water Sterilization

Fluorescent Spectroscopy

Chemical and Biological Analysis



Parameters

这是一段描述

Item	Specifications
Model	CUD1GF1B
Rated voltage	5~7V
UVC radiation flux	6mW
UVC Wavelength	305nm led~315nm led
Input current	100mA
Input power	0.5~0.7W
Storage temperature	-40℃-100℃

Remarks

这是一段描述

• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.

• Radiation flux（ Φ e) Measurement tolerance ± 10%.

• The measurement tolerance of forward voltage (VF) is ± 3%.



Packaging method (reference standard data)

这是一段描述



Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Advantages

· Tianhui svc 365nm uv led is fabricated from optimum raw material supplied from top-grade vendors.

· Comprehensive quality control is carried out to ensure the product meets with all related quality standards.

· Zhuhai Tianhui Electronic Co., Ltd.'s employees are committed to providing exceptional service that is unique and distinct from all others.

Company Features

· Tianhui now is a competitive company in providing one-stop solution about svc 365nm uv led for clients.

· Due to our market expanding strategy and strong performance, we have acquired trust and developed long-term partnerships in North America, South East Asia, and Europe.

· Zhuhai Tianhui Electronic Co., Ltd.'s global manufacturing, sales and marketing personnel are keenly focused on meeting our customer’s product needs. Get price!

Application of the Product

svc 365nm uv led, one of Tianhui's main products, is deeply favored by customers. With wide application, it can be applied to different industries and fields.

Tianhui always focuses on meeting customers' needs. We are dedicated to providing customers with comprehensive and quality solutions.
