Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Tianhui Led Uva Uvb 5~7Vsuppliers
UV radiation flux:
6/16mW
Consumption Power (W):
0.5~0.7W
Input Voltage:
5~7V
Input power:
0.5~0.7W
Model:
CUD(x)GF1B
Product details of the led uva uvb
Product Overview
It is our distinguished design team that our led uva uvb are made to be so attractive. This product excels at meeting and exceeding quality standards. The led uva uvb developed by our company can play a role in various fields. Customer interactions in Zhuhai Tianhui Electronic Co., Ltd. are more personal, professional and effective.
Product Introduction
More detailed information about led uva uvb will be shown below for you.

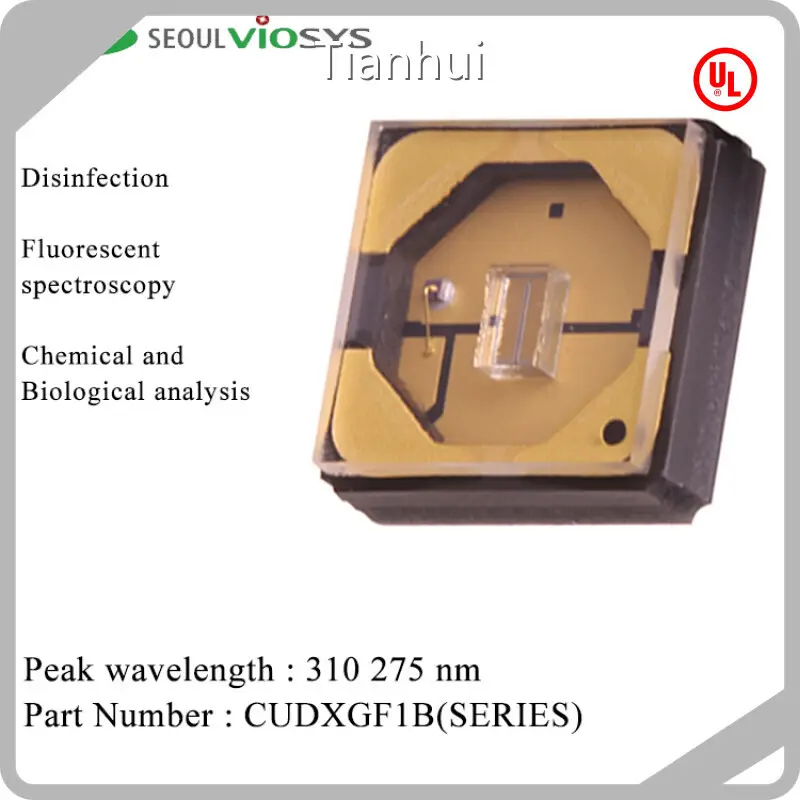

The CUD(x)GF1B series are deep UV lamps. LEDs with peak emission wavelengths from 270nm to 278nm.
The LED is encapsulated in a ceramic package including an optically clear window.
It combines advanced SMD design with low thermal resistance.
The CUD(x)GF1B series is designed for air and water. Sterilization and tools, including chemical and biological analysis in this spectral range.
Application
| Disinfection | Fluorescent Spectroscopy | Chemical and Biological Analysis |
Parameters
Item | Specifications |
Model | CUD(x)GF1B |
Rated voltage | 5~7V |
UV radiation flux | 6/16mW |
UV Wavelength | 270~310nm |
Input current | 100mA |
Input power | 0.5~0.7W |
Storage temperature | -40℃-100℃ |
Remarks
• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.
• Radiation flux（ Φ e) Measurement tolerance ± 10%.
• The measurement tolerance of forward voltage (VF) is ± 3%.
Packaging method (reference standard data)
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
