Description
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Description

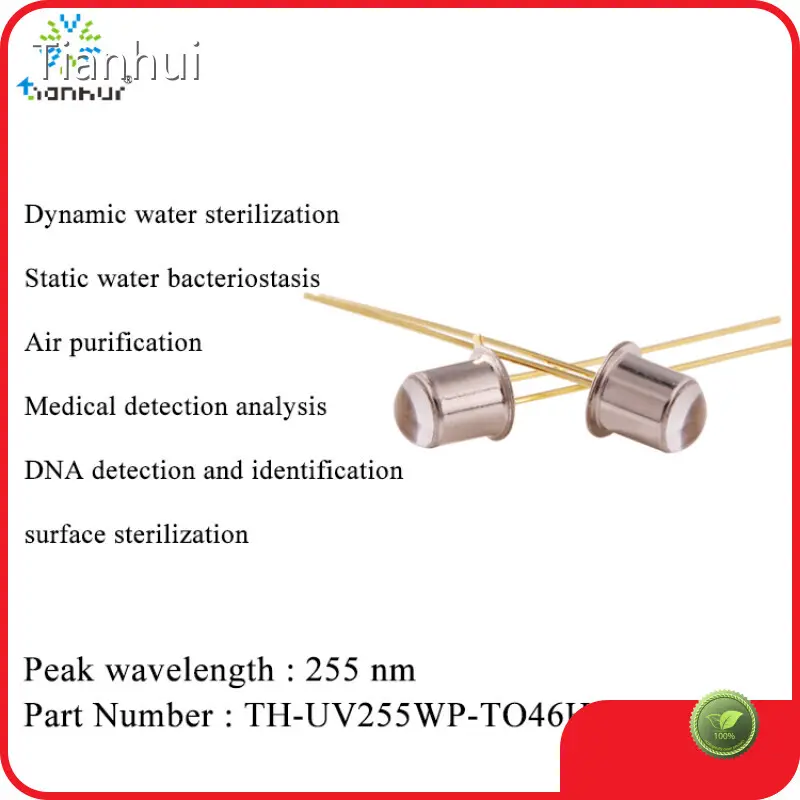

TH-UV255WP-TO46H
250~260NM uVC LED
Disinfection/Fluorescent Spectroscopy/
Chemical and Biological Analysis
Application
Disinfection | Fluorescent Spectroscopy | Chemical and Biological Analysis |
Parameters
Item | Specifications |
Model | TH-UV255WP-TO46H |
Rated voltage | 4.8~7V |
UVC radiation flux | 0.5~2.5mW |
UVC Wavelength | 250~260nm |
Input current | 20mA |
Input power | 0.1-0.14W |
Working temperature | -10℃-85℃ |
Storage temperature | -40℃-100℃ |
Remarks
• Peak wavelength( λ p) The measurement tolerance is ± 3nm.
• Radiation flux( Φ e) Measurement tolerance ± 10%.
• The measurement tolerance of forward voltage (VF) is ± 3%.
Usage method
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Advantages
· The production of Tianhui led curing system is based on the lean production principle.
· Customers can count on Tianhui for product performance.
· The product provides a snug fit. It is designed to give the utmost safety to people's belongings, allowing them to fearlessly travel.
Company Features
· Zhuhai Tianhui Electronic Co., Ltd. has occupied most part of the market relying on the professionalism of R&D, design, manufacture, and supply of led curing system.
· We have continued to make a significant investment in production facilities. This allows us to manufacture products smoothly from concept to completion whilst also ensuring that we can serve the needs of our customers.
· Zhuhai Tianhui Electronic Co., Ltd. is committed to creating a one-stop service for customers. Please contact us!
Application of the Product
Tianhui's led curing system can be used in different fields.
Guided by the actual needs of customers, Tianhui provides customers with comprehensive, perfect and high-quality solutions based on the interests of customers.
