Description
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Tianhui High End Curing Led From China for Disinfect
UV Wavelength:
255nm 265nm 27nm 285nm 295nm 305nm 315nm340nm
Rated voltage:
3.6~7V
Minimum order quantity:
10
Color:
UV
Brand:
TH
| Items | Condition | Min. | Typ. | Max. | Unit |
| Forward Current | - | - | 20 | - | mA |
| Forward Voltage | IF=20mA | 3.6 | - | 7 | V |
| Optical Power Output | IF=20mA | 0.5 | 1.1 | 2.5 | mW |
| Wavelength | IF=20mA | 250 | 255 | 260 | nm |
| 260 | 265 | 270 | nm | ||
| 270 | 275 | 280 | nm | ||
| 280 | 285 | 290 | nm | ||
| 290 | 295 | 300 | nm | ||
| 300 | 305 | 310 | nm | ||
| 300 | 310 | 315 | nm | ||
| 335 | 340 | 350 | nm | ||
| Viewing Angle | IF=20mA | - | 7.5 | - | Deg |

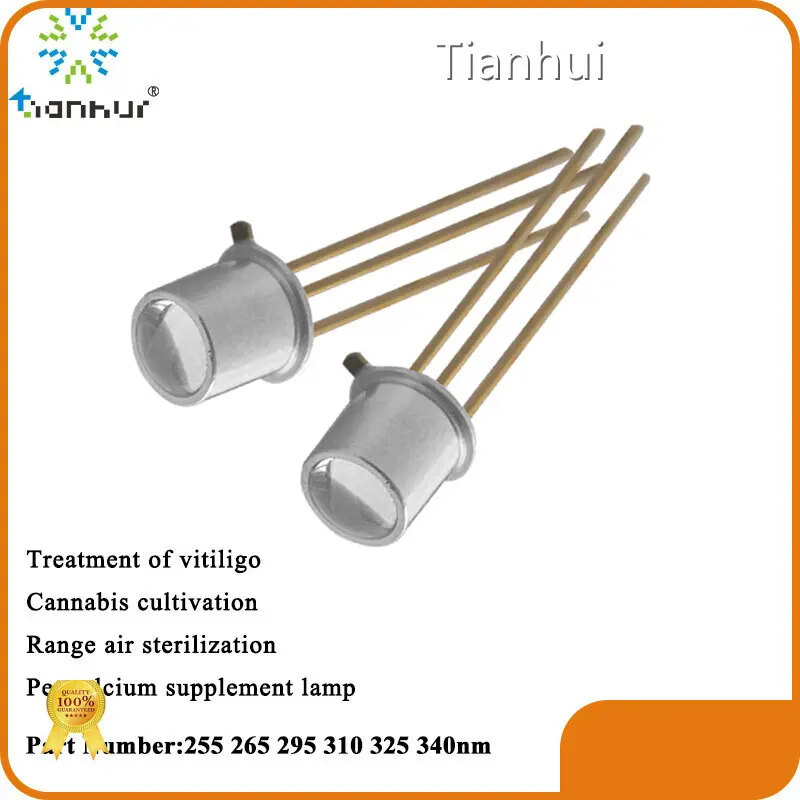

Tianhui TO46 340nm UVA LED is a light source used for medical testing, mainly for blood analysis and other aspects. This LED light source has a wavelength of 340 nanometers and belongs to the ultraviolet A-band. The A-band ultraviolet light has a longer wavelength and lower energy, making it suitable for certain medical applications.
In the field of medicine, blood analysis is one of the most important detection methods. By analyzing blood samples, important information about the patient's health status can be obtained, such as red blood cell count, white blood cell count, hemoglobin content, etc. As a light source, Tianhui TO46 340nm UVA LED can provide sufficient ultraviolet A light to stimulate specific components or markers in the blood, thereby assisting medical workers in blood analysis.
There are some advantages to using Tianhui TO46 340nm UVA LED for blood analysis. Firstly, ultraviolet A light can penetrate blood samples and interact with certain components within them. Secondly, the Tianhui TO46 340nm UVA LED has a shorter response time and longer lifespan, providing a stable and reliable light source. In addition, the design of the TO46 packaging makes it more compact and easy to integrate into medical devices.
In summary, Tianhui TO46 340nm UVA LED, as a medical testing light source, can be used in fields such as blood analysis. It provides stable ultraviolet A light for stimulating and detecting specific components in the blood, providing important blood analysis data for medical workers.
Zhuhai Tianhui Electronic Co., Ltd. was founded in 2002 . This is a production oriented and high technology company integrated research and development, production, sales and solution providing of UV LEDs, which is specialized in doing UV LED packaging and providing UV LED solutions of finished products for various UV LED applications.
Tianhui electric has been engaging in UV LED package with full production series and stable quality and reliability as well as competitive prices. The products include UVA, UVB, UVC from short wavelength to long wavelength and complete UV LED specifications from small power to high power.
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Advantages
· Premium raw materials: the raw materials of Tianhui curing led are well selected and strictly analyzed by our quality control member. They compare with the data through high-intensity testing experiments and then select the best materials.
· curing led is made from excellent materials and is free of harmful substances and odor. It is excellent in stability and durability and is effective in resistance to wind, earthquake, high temperature, and corrosion. It is safer, more reliable and eco-friendly than other similar products.
· Except for providing better protection for the merchandise, it always gets the attention of clients. And that's the reasons why one need to use this product for their brands.
Company Features
· Zhuhai Tianhui Electronic Co., Ltd. has become the leading multinational manufacturer of curing led.
· The large production base greatly increases our production capacity.
· We obligated to meet the quality standards as per the customer demands.
Application of the Product
The curing led of Tianhui can be used in many industries.
Tianhui has established a professional technical team. They can provide customers with targeted processes and solutions. Based on this, the problems of customers can be better solved.
