Tianhui Brand Uvc Module for Bottle Factory

Company Advantages

· All the components of Tianhui uvc module for bottle are constantly tested by our engineers and technicians. These tests include accelerated life testing of materials, stress measurement and fatigue testing of fans, and performance qualifications of pumps and motors.

· The product has the characteristics of breathability. Its design lets the air circulate freely and keep the feet dry and fresh.

· The use of this product is one way to save the environment. It helps the environment by cutting down on greenhouse gases emitted into the air.

Description

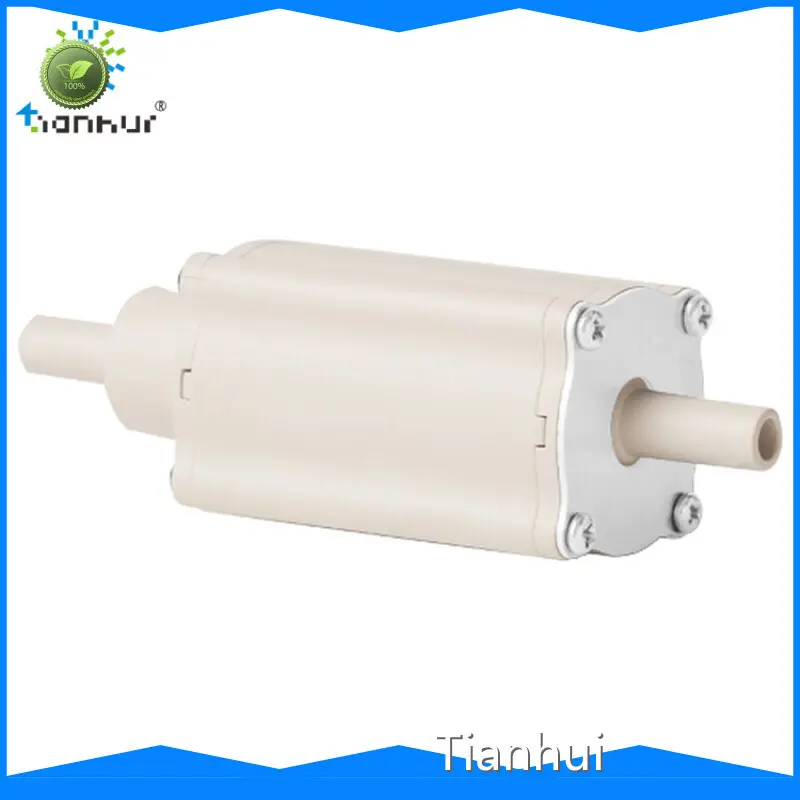

TH-UVC-PA04 volume is small, the
selected material is environmentally safe and meets the requirements of drinking water and food contact. The
module relies on water flow to
dissipate heat, and has its own water flow switch to prevent burnout due to water cut. The module is suitable for installation in the middle section of the
waterway.

Feature

• Reference standard: QB/T 4827-
2015

• UVC LED (270-280nm)

• Dry burn protection-Built-in water flow switch to prevent dry burning
without water

• Small size, suitable for installation in various environments

• Environmental friendly

• Compliant with RoHS and Reach

Application

• Smart toilet

• Drinking machine

• Ice maker

• Under the kitchen water purifier

• Air humidifier

• Pet water dispenser

• Tea bar machine

Item	Specifications	Note
Part Number	TH-UVC-PA04
Connector of Water Inlet	Φ6.5 (2/8 inch tube)	Normal pipe or with Skidproof stripe
Connector of Water Outlet	Φ6.5 (2/8 inch tube)	Normal pipe or with Skidproof stripe
Rated Voltage	DC 12V	Customizable
UVC Radiant Power	40-150mW	Appropriate for 0.6-3LPM
UVC Wavelength	270~280nm
Sterilization Rate	≥99.99% (Escherichia Coli)	Max. 3LPM
Input Current	100mA	DC12V, 50mW Module
Input Power	1.2W	DC12V, 50mW Module
Waterproof Level of Outer Shell	IP67
Appropriate Water Pressure	≤0.4MPa	Optional
Cables	Customization	Length can be customized
Connector	Customization	Can be customized
LED Lifespan	10,000-25,000 hours	According to the LED model
Insulation and Voltage Resistance	DC500 V,1min@10mA, leakage current
	30Lx30Wx62H (mm)
Net Weight	74±5g
Working Water Flow Rate	0.4L/min	The module doesn't work if the flow rate less then 0.4L/MIN
Appropriate Water Temperature	4℃-40℃
Storage Temperature	-40℃-85℃

Remarks
• The peak wavelength (λp) measurement tolerance is ±3nm.
• The measurement tolerance of radiant flux (Φe) is ±10%.
• The measurement tolerance of forward voltage (Vf) is ±3%.

Company Features

· Zhuhai Tianhui Electronic Co., Ltd. develops, manufactures and markets uvc module for bottle for many years. We are going to provide more innovative products to meet market trends.

· Our company has won many awards, some of which are voted by our clients. It’s the best kind of recognition for the company to know that our clients really do appreciate our going the extra mile, enough to cast their personal vote for us as one of the best manufacturers of uvc module for bottle. Our company has won many awards. To win these awards, our company was measured on test calls to assess the quality of service, effective processing, clarity of communication and uvc module for bottle market knowledge.

· We keep a watchful eye on the environmental impact we caused. To achieve sustainable development, we strive hard to reduce energy waste and pollution during the production processes.

Product Details

Our company starts from the whole and excels in detail in the production of uvc module for bottle. So our products have better performance in the following aspects.

Application of the Product

Tianhui's uvc module for bottle can be used in many industries.

In the early stage, we conduct a communication survey to gain an in-depth understanding of the customer's problems. Therefore, we can develop solutions that best suit the customers based on the results of the communication survey.

Product Comparison

Compared with similar products, our uvc module for bottle's outstanding advantages are as follows.

Enterprise Advantages

We firmly believe that talents are the most important treasure for the company. To lay a solid foundation for our development, we actively gather resources from all parties, to form an experienced and skilled production team with dedication.

Adhering to the service concept of 'customer is superior, service is first-class', our company is guided by the actual needs of consumers and wholeheartedly provides sincere service for consumers.

Tianhui will continue to follow the business philosophy of 'survive by quality, gain market by reputation, develop by innovation'. To better develop our company, we also carry forward the enterprise spirit of 'self-improvement, innovation and development, cooperation and win-win'. We sincerely provide quality products and services for new and old customers and now we are looking forward to cooperating with you and creating brilliance!

After years of struggle and development, our company now has the leading base hardware scale in China.

Tianhui's high-quality products take a considerable share in both domestic and foreign markets.
