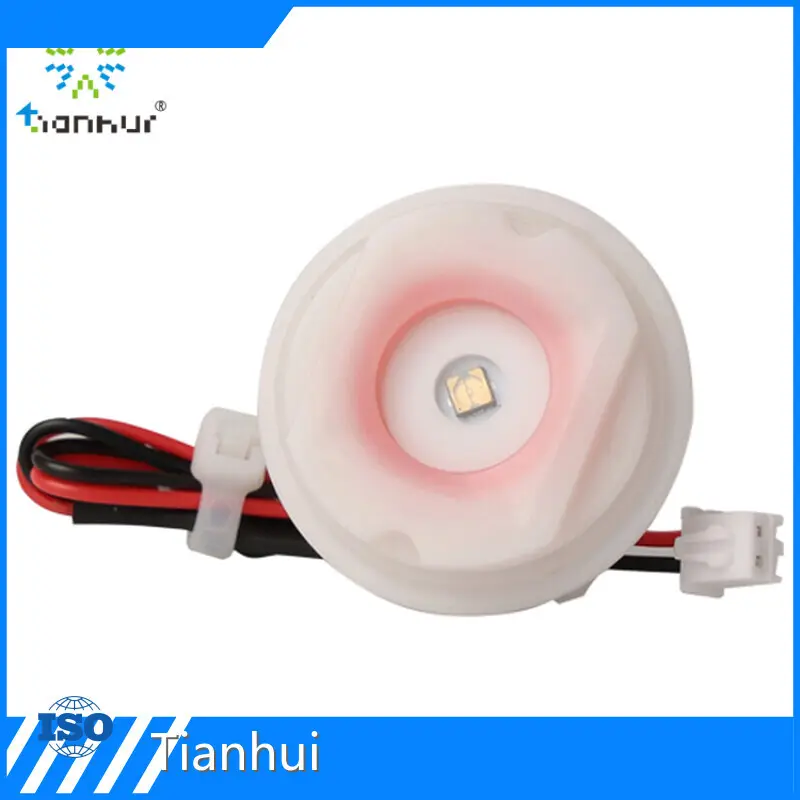

Tianhui Brand 500±10mm 40mA far Uvc Lamp Modules 1
Tianhui Brand 500±10mm 40mA far Uvc Lamp Modules 2
Tianhui Brand 500±10mm 40mA far Uvc Lamp Modules 3
Tianhui Brand 500±10mm 40mA far Uvc Lamp Modules 4
Tianhui Brand 500±10mm 40mA far Uvc Lamp Modules 5
Tianhui Brand 500±10mm 40mA far Uvc Lamp Modules 1
Tianhui Brand 500±10mm 40mA far Uvc Lamp Modules 2
Tianhui Brand 500±10mm 40mA far Uvc Lamp Modules 3
Tianhui Brand 500±10mm 40mA far Uvc Lamp Modules 4
Tianhui Brand 500±10mm 40mA far Uvc Lamp Modules 5

Tianhui Brand 500±10mm 40mA far Uvc Lamp Modules

Terminals:
XH2.54,White
Wire rod:
500±10mm
UV Wavelength:
260-280nm
Rated voltage:
DC 12Vor DC24V
Input current:
40mA
Inquiry

Description

TH-UVC-C01 It is a static UVC LED bacteriostasis module for air and liquid bacteriostasis. It is suitable for closed cavity structure with water tank.



It can be installed at the top, side wall and bottom. The light emitting surface meets the waterproof requirements of IP65. Even if it is installed at the bottom of the water tank, there is no need to worry about water leakage.



The wavelength range of UVC LED used is 260-280nm, which has excellent and efficient sterilization and disinfection effect. The surface is made of UV high permeability quartz glass and UV reflector, which can improve the effective utilization of UVC and significantly improve the sterilization effect.



All materials meet the environmental protection requirements of ROHS and reach, and all water related parts meet the requirements of food safety and water batch.

Application

Drinking machine Ice machine Air humidifier Air purifier
Aromatherapy machinePet water dispenser Dishwasher

Parameters

Item

Specifications

Remark

Model

TH-UVC-C01

-

Opening Hole size

27.3±0.3mm

Round hole

Rated voltage

DC 12Vor DC24V

Customizable

UVC radiation flux

4-6mW

-

UVC Wavelength

260-280nm

-

Input current

40mA

According to LED selection

Input power

0.2-0.4W

According to LED selection

Waterproof grade

IP65

The polished surface is fully waterproof

Wire rod

500±10mm

Line length can be customized

Terminals

XH2.54, White

Terminals can be customized

Lamp bead life

10,000-25,000 hours

According to LED selection

Dielectric Strength

DC500 V,1min@10mA, Leakage current

Size

φ38 x 19.6 mm

Net weight

26±5g

Working temperature

-25℃-40℃

-

Storage temperature

-40℃-85℃

-

Remarks

• Peak wavelength( λ p) The measurement tolerance is ± 3nm.

• Radiation flux( Φ e) Measurement tolerance ± 10%.

• The measurement tolerance of forward voltage (VF) is ± 3%.

Overall dimension

• Module size - φ38 x 19.6 (Diameter x height )

• Tolerance ±0.5mm

Usage method

Packaging method (reference standard data)

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
