Description
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Company Advantages
· The Tianhui365nm uv led is designed involve of latest design trends and concepts.
· The life cycle of this product has been greatly extended.
· Tianhui also provides installation service for customers.
Description

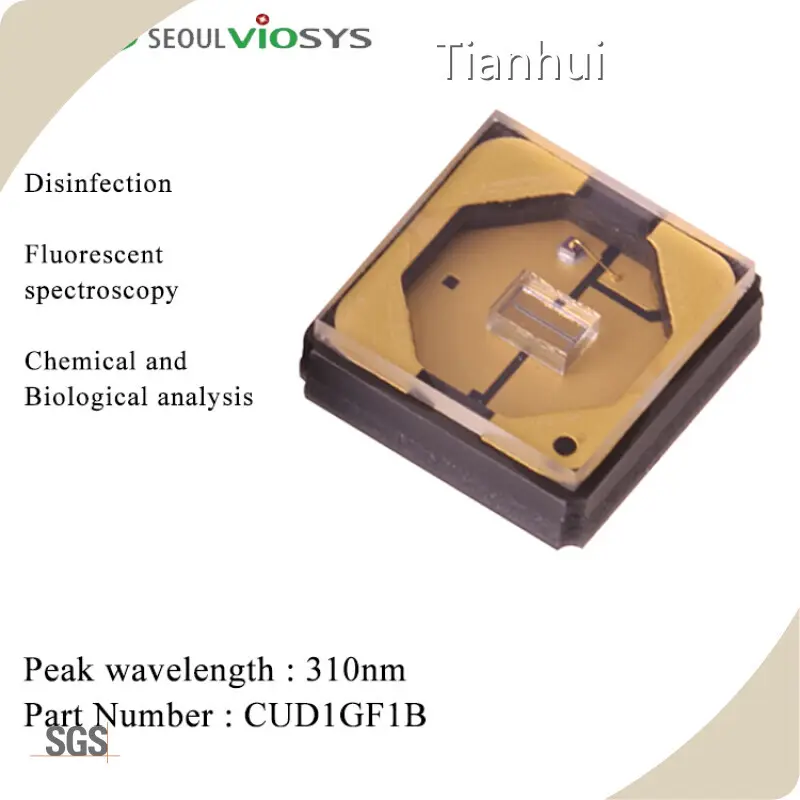

CUD1GF1B is a deep ultraviolet light emitting diode with peak emission wavelengths from 305nm to 315nm.
The LED is sealed in Ceramic packages including an optical transparent window.
It incorporates state of the art SMD design and low thermal resistance.
CUD1GF1B is designed for air and water sterilization and tools including chemical and biological analysis in that spectral range.
Application
Disinfection | Fluorescent Spectroscopy | Chemical and Biological Analysis |
Parameters
Item |
Specifications |
Model |
CUD1GF1B |
Rated voltage |
5~7V |
UVC radiation flux |
6mW |
UVC Wavelength |
304~315nm |
Input current |
100mA |
Input power |
0.5~0.7W |
Storage temperature |
-40℃-100℃ |
Remarks
• Peak wavelength( λ p) The measurement tolerance is ± 3nm.
• Radiation flux( Φ e) Measurement tolerance ± 10%.
• The measurement tolerance of forward voltage (VF) is ± 3%.
Packaging method (reference standard data)
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Features
· Zhuhai Tianhui Electronic Co., Ltd. is one of the leading designers, manufacturers, and providers of 365nm uv led. We have accumulated years of production experience.
· Our company has strong technical force, with modern production technology and equipment.
· 365nm uv led serves as an impetus to help the realization of Tianhui' market goal. Check it!
Product Comparison
Supported by advanced technology, our 365nm uv led has a greater breakthrough in the comprehensive competitiveness of the products, as shown in the following aspects.
Enterprise Advantages
Our company has not only a technical team with excellent professional knowledge, but also a business team with strong business capabilities. Thus, we guarantee that our products have high technical value and sufficient market supply.
We established a full set of specifications of the customer service system to provide customers with one-stop services, including details information giving and consultation, return and exchange of products. We solve various needs of customers, so as to improve customer's satisfaction and support for our company.
Our company always adheres to the business philosophy of 'customer first, serve sincerely', and we advocate the spirit of 'seeking truth and being pragmatic, progressing and advancing, developing with the times'. We strengthen communication with customers, and keep our commitment to customers. Moreover, we try our best to provide customers with quality products and personalized service.
After the official establishment in our company has continuously explored and developed for years. Now, we have accumulated a large amount of management experience to guide our daily business activities.
Our products are sold all over the country and are well received by users.
