Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Tianhui 280nm Uv Sterilization
UV Wavelength:
340~350nm
Rated voltage:
3.4-5.0V
Led Power:
20-60mW
Product name:

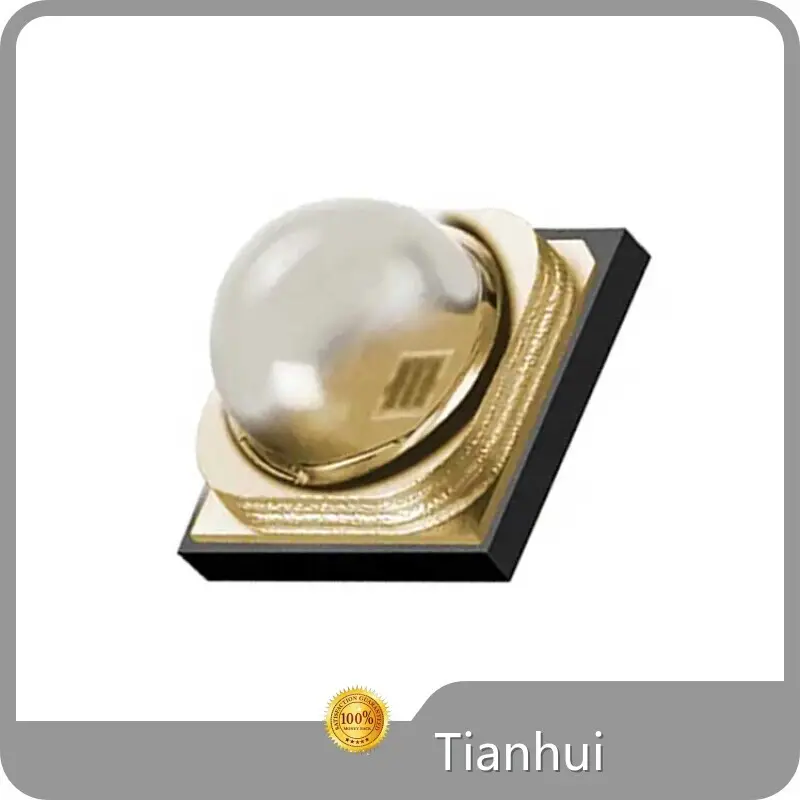

TH-UV340T1WPS-3535H-60
Company Advantages
· Top-quality details perfectly shown on Tianhui 280nm uv.
· The product is fabricated under strict quality control and its quality is stable enough.
· Zhuhai Tianhui Electronic Co., Ltd. has the perfect service quality and rigorous attitude of continuous improvement on 280nm uv.
UV-LED 340 nm to 350 nm
Spectroscopy for Medical & Scientific applicationPeak wavelength
Product characteristics
The emission peak is 335-350nm and matched with the sensor
Good linearity and spot of light output
The operating temperature range is -20 ° C to 60 ° C
Efficient output optical power and good stability
Fast response speed
High reliability TO46 packaging with good heat dissipation
Compliant with ROHS standards
UVA ultraviolet lamp refers to a general term for long wavelength ultraviolet lamps with a wavelength of 320-400nm. In addition to fixed ultraviolet lamps, UVA ultraviolet lamps also include 340nm ultraviolet medical testing, water testing, air testing, and blood testing. UVA ultraviolet lamps, as long wavelength ultraviolet lamps, have the characteristic of strong penetration. It is widely used in industries such as industry, Criminal investigation, minerals, aquaculture and medical treatment. Today we will discuss the application of ultraviolet 340nm light sources.
Seoul Viosys SVC Ultraviolet UVA UV-LED 340 nm to 350 nm For Blood Analysis Phototherapy Spectroscopy
for Medical & Blood analysis and testing & Scientific application & Water detection & Air detection......
| Parameter | Min. | Typ. | Max. | Unit |
| Peak Wavelength | 340 | - | 350 | nm |
| Radiant Flux | 20 | - | 60 | mW |
| Forward Voltage | 3.4 | 4.3 | 5.0 | V |
| Spectrum Half Width | - | 12 | - | nm |
| View Angle | - | 60 | - | deg. |
Zhuhai Tianhui Electronic Co., Ltd. was founded in 2002 . This is a production oriented and high technology company integrated research and development, production, sales and solution providing of UV LEDs, which is specialized in doing UV LED packaging and providing UV LED solutions of finished products for various UV LED applications.
Tianhui electric has been engaging in UV LED package with full production series and stable quality and reliability as well as competitive prices. The products include UVA, UVB, UVC from short wavelength to long wavelength and complete UV LED specifications from small power to high power.
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Features
· Zhuhai Tianhui Electronic Co., Ltd. is a new type of 280nm uv manufacturer integrating R&D, production and sales.
· Zhuhai Tianhui Electronic Co., Ltd. has highly qualified professionals for manufacturing 280nm uv.
· We put emphasis on customers. We ensure that all aspects of our company will put the customers' satisfaction first.
Product Details
Compared with ordinary products, Tianhui's 280nm uv has the following advantages in details
Application of the Product
Tianhui's 280nm uv can be applied to different fields.
Tianhui is dedicated to providing professional, efficient and economical solutions for customers, so as to meet customers' needs to the greatest extent.
Enterprise Advantages
Tianhui has a group of quality professionals, which provides strong support for corporate development.
Tianhui runs the business in good faith and strives to provide quality services for customers.
With the tenet of 'customer first, reputation first', we insist on the policy of higher standards, higher quality and higher efficiency to truly manage with love and work with sincerity.
Tianhui was built in Having explored and innovated for years, we are now a leading enterprise in the industry with advanced technology and excellent service.
Tianhui takes a proactive approach to 'Internet +' thinking in the business management. We combine E-commerce with offline franchise business mode, which contributes to the annual increment of sales volume and increasingly wide sales range.
