Tianhui 280 Nm Uv 270-280nmwith Good Price

Lamp bead life:

10,000-25,000 Hours

UV Wavelength:

270-280nm

Rated voltage:

DC 12V/24V

Brand:

Tianhui

Model:

TH-UVC-F27

Inquiry

Product details of the 280 nm uv

Product Description

Tianhui 280 nm uv is produced by modern assembly line. The perfect quality control system ensures that customers' demands on quality are fully met. Zhuhai Tianhui Electronic Co., Ltd. acts swiftly and flexibly.

Tianhui 280 Nm Uv 270-280nmwith Good Price 7

Description

Tianhui 280 Nm Uv 270-280nmwith Good Price 8

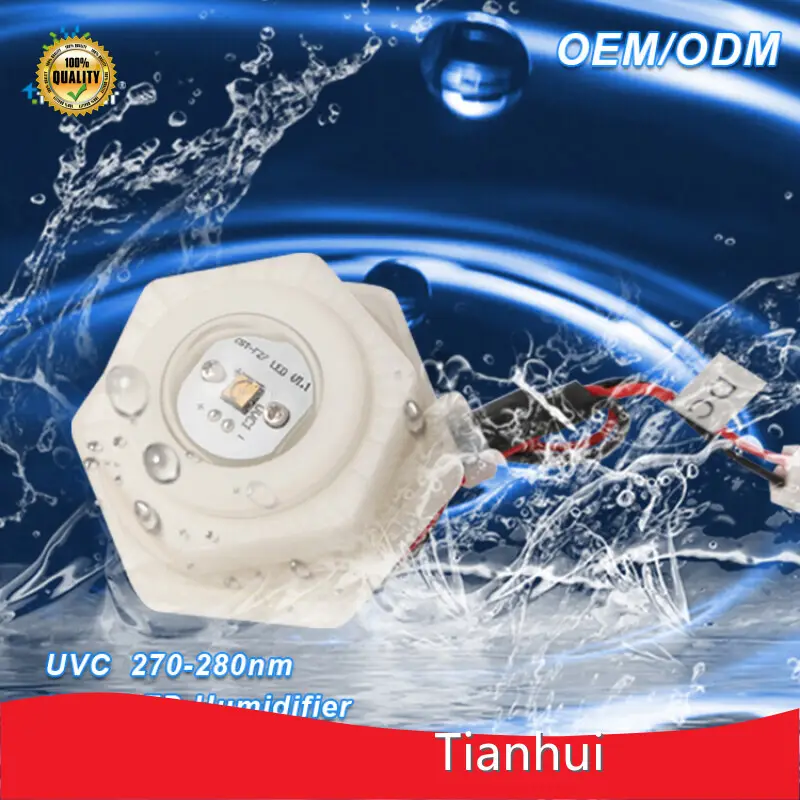

TH-UVC-F27 is a static sterilizer applied to air and water sterilization UVC LED sterilization module. It is especially suitable for closed with water tank spatial structure. It can be installed on the top, side wall and bottom of the water tank, with light output the surface meets the waterproof requirements of IP68. The wavelength range of UVC LED used is 270-280nm.

It has excellent and efficient sterilization and disinfection effect. High permeability quartz glass is used the cover is equipped with reasonable optical design to avoid sterilization dead corners as far as possible, Achieve ideal sterilization effect. All materials meet the environmental protection requirements of ROHS and reach.

All water related parts meet the requirements of food safety and water batch

Application

Tianhui 280 Nm Uv 270-280nmwith Good Price 9

Drinking machine	Pet water dispenser	Air humidifier
Dishwasher	Air Purifier	Ice machine

Parameters

Item	Specifications	Remark
Model	TH-UVC-F27	-
Opening Hole size	27.3±0.3mm	Round hole
Rated voltage	DC 12Vor DC24V	Customizable
UVC radiation flux	4-6mW	-
UVC Wavelength	260-280nm	-
Input current	40mA	According to LED selection
Input power	0.2-0.4W	According to LED selection
Waterproof grade	IP65	The polished surface is fully waterproof
Wire rod	500±10mm	Line length can be customized
Terminals	XH2.54, White	Terminals can be customized
Lamp bead life	10,000-25,000 hours	According to LED selection
Dielectric Strength	DC500 V,1min@10mA, Leakage current
Size	φ38 x 19.6 mm
Net weight	26±5g
Working temperature	-25℃-40℃	-
Storage temperature	-40℃-85℃	-

Remarks

• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.

• Radiation flux（ Φ e) Measurement tolerance ± 10%.

• The measurement tolerance of forward voltage (VF) is ± 3%.

Overall dimension

• Module size - φ38 x 19.6 (Diameter x height )

• Tolerance ±0.5mm

Tianhui 280 Nm Uv 270-280nmwith Good Price 10

Usage method

Tianhui 280 Nm Uv 270-280nmwith Good Price 11

Packaging method (reference standard data)

Tianhui 280 Nm Uv 270-280nmwith Good Price 12

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
