Tianhui 000-25 Uvc Module for Bottle Tianhui Brand

Product details of the uvc module for bottle

Quick Overview

Zhuhai Tianhui Electronic Co., Ltd. produce high quality uvc module for bottle with sophisticated design and fine finish. We use the guaranteed raw materials we source for trusted suppliers to guarantee the quality of this product. The uvc module for bottle developed by Tianhui is widely used in industry. With so many advantages, the product is considered to have a wide range of market applications.

Product Description

Compared with other similar products in the market, Tianhui's uvc module for bottle is provided with the following outstanding advantages.

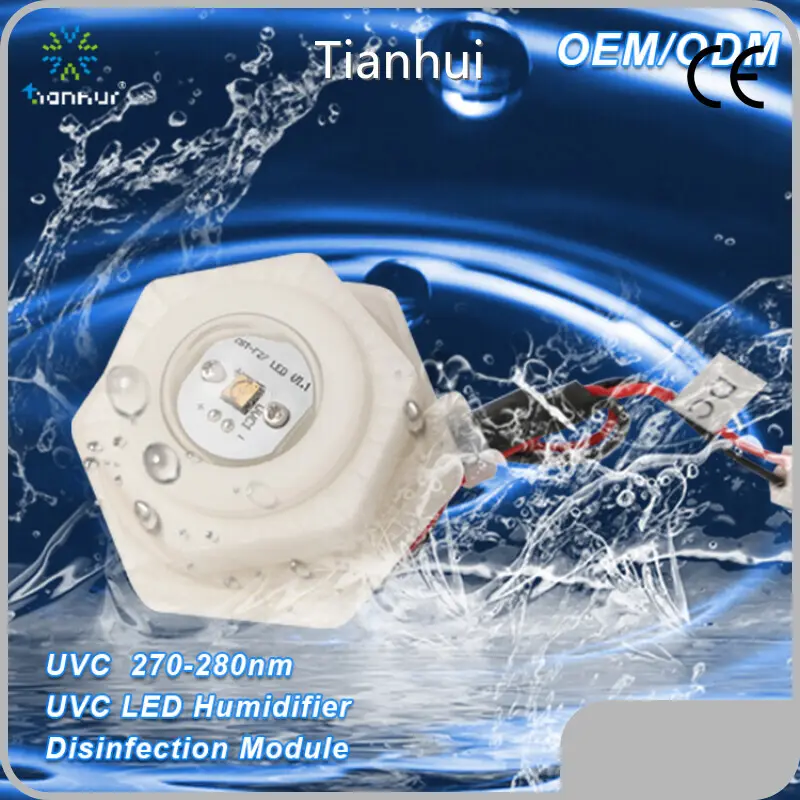

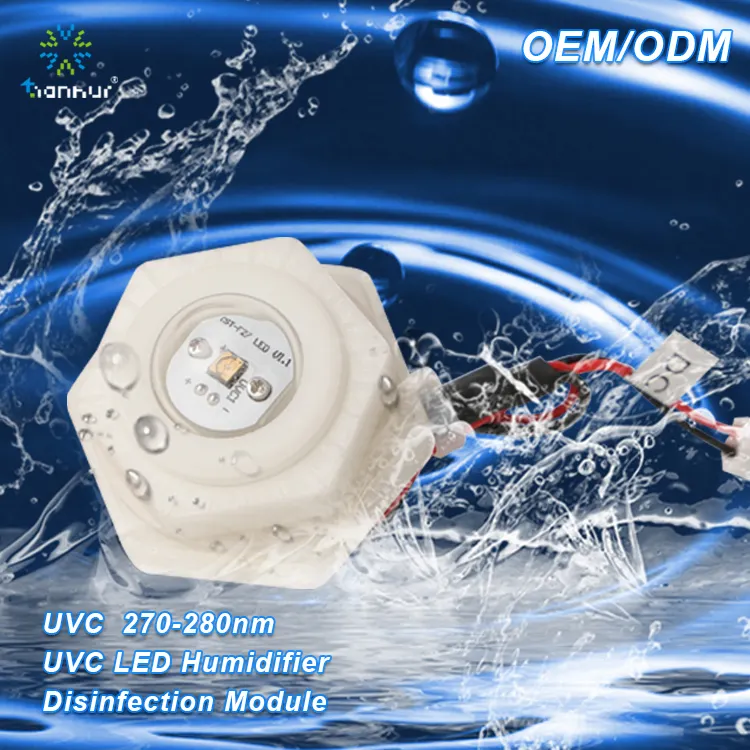

TH-UVC-F27 is a static sterilizer applied to air and water sterilization UVC LED sterilization module. It is especially suitable for closed with water tank spatial structure. It can be installed on the top, side wall and bottom of the water tank, with light output the surface meets the waterproof requirements of IP68. The wavelength range of UVC LED used is 270-280nm.

It has excellent and efficient sterilization and disinfection effect. High permeability quartz glass is used the cover is equipped with reasonable optical design to avoid sterilization dead corners as far as possible, Achieve ideal sterilization effect. All materials meet the environmental protection requirements of ROHS and reach.

All water related parts meet the requirements of food safety and water batch

Application

这是一段描述

Drinking machine	Pet water dispenser	Air humidifier
Dishwasher	Air Purifier	Ice machine

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UVC-F27	-
Opening Hole size	27.3±0.3mm	Round hole
Rated voltage	DC 12Vor DC24V	Customizable
UVC radiation flux	4-6mW	-
UVC Wavelength	260-280nm	-
Input current	40mA	According to LED selection
Input power	0.2-0.4W	According to LED selection
Waterproof grade	IP65	The polished surface is fully waterproof
Wire rod	500±10mm	Line length can be customized
Terminals	XH2.54, White	Terminals can be customized
Lamp bead life	10,000-25,000 hours	According to LED selection
Dielectric Strength	DC500 V,1min@10mA, Leakage current
Size	φ38 x 19.6 mm
Net weight	26±5g
Working temperature	-25℃-40℃	-
Storage temperature	-40℃-85℃	-

Remarks

这是一段描述

• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.

• Radiation flux（ Φ e) Measurement tolerance ± 10%.

• The measurement tolerance of forward voltage (VF) is ± 3%.

Overall dimension

这是一段描述

• Module size - φ38 x 19.6 (Diameter x height )

• Tolerance ±0.5mm

Usage method

这是一段描述

Packaging method (reference standard data)

这是一段描述

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
