TH-UVC-CM01M 000 Hours Tianhui Brand Uvc Led Module Factory

Lamp bead life:
10,000 Hours
Waterproof grade:
IP60
UV Wavelength:
260~280nm
Input current:
63mA~125mA
Model:
TH-UVC-CM01M
Inquiry

Product details of the uvc led module


Product Information

The design of Tianhui uvc led module focuses on the technique and function. The competitive edges of the product are as follows: long service life, good performance, and exceptional quality. Zhuhai Tianhui Electronic Co., Ltd. has excellent service with unique design, fast delivery and abundant product lines.

Description

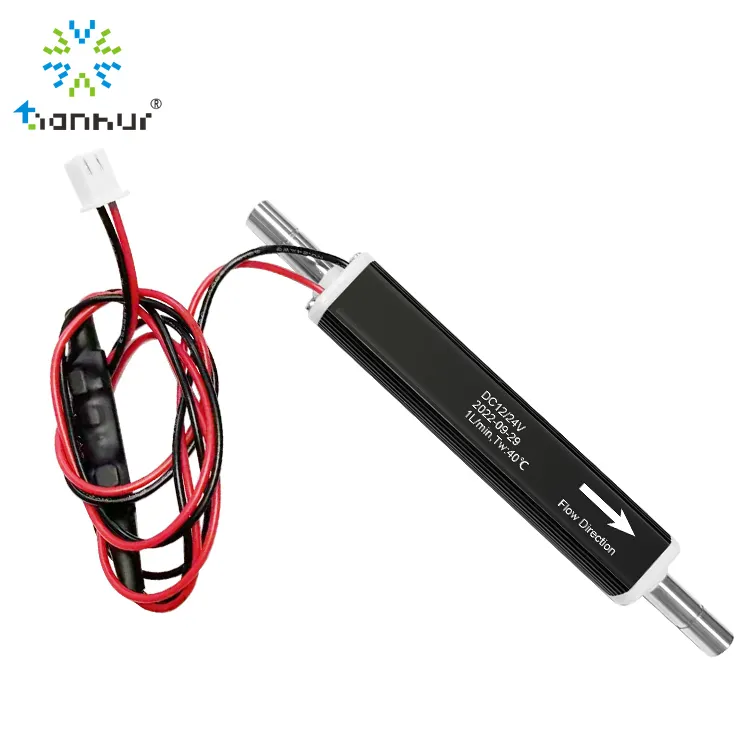

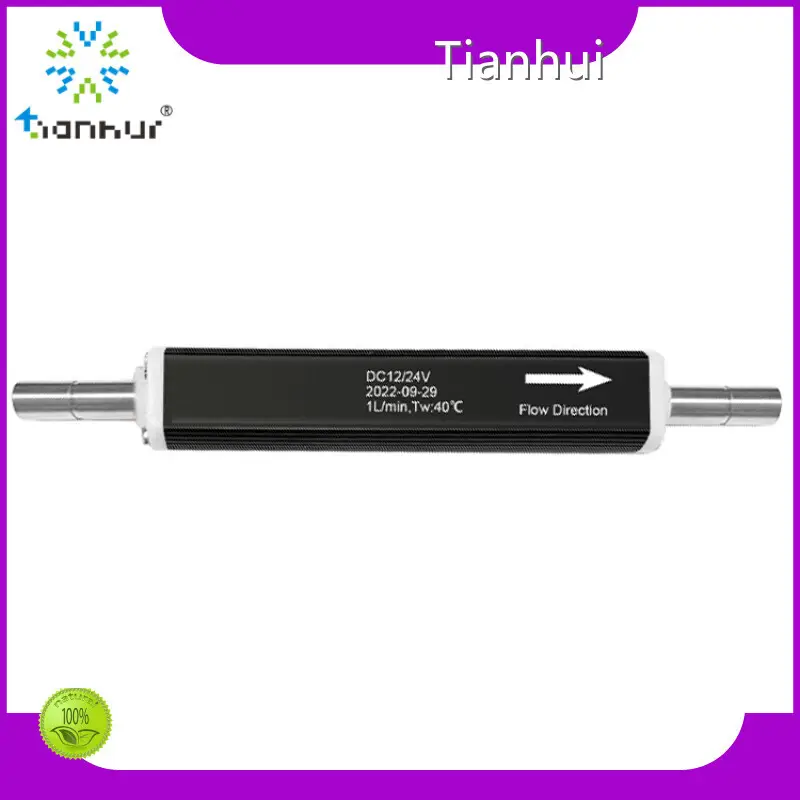

TH-UVC-CM01M is a UVC LED over-current water killing device

Bacterial module. Small size, environmental protection and safety of selected materials drinking water and food contact requirements.

The wavelength range of the UVC LED used is 260- 280nm, with excellent and efficient sterilization effect.

Inside UVC high reflectivity cavity can effectively improve the utilization of UV light. So as to significantly improve the bactericidal effec

Application

Drinking machine Ice machine Air humidifier Air purifier
Aromatherapy machinePet water dispenser Dishwasher

Parameters

Item

Specifications

Remark

Model

TH-UVC-CM01M

-

Opening Hole size

-

-

Rated voltage

DC 12V or DC 24V

-

UVC radiation flux

35~45mW

1LPM ( Can fix 2LPM )

UVC Wavelength

260-280nm

-

Input current

125mA@12V

63mA@24V

Input power

1.5W

-

Waterproof grade

IP60

-

Wire rod

UL1007 24AWG

Customizable

Terminals

XH2.54, White

Terminals can be customized

Lamp bead life

10,000 Hours

According LED

Dielectric Strength

DC500 V,1min@10mA, Input current

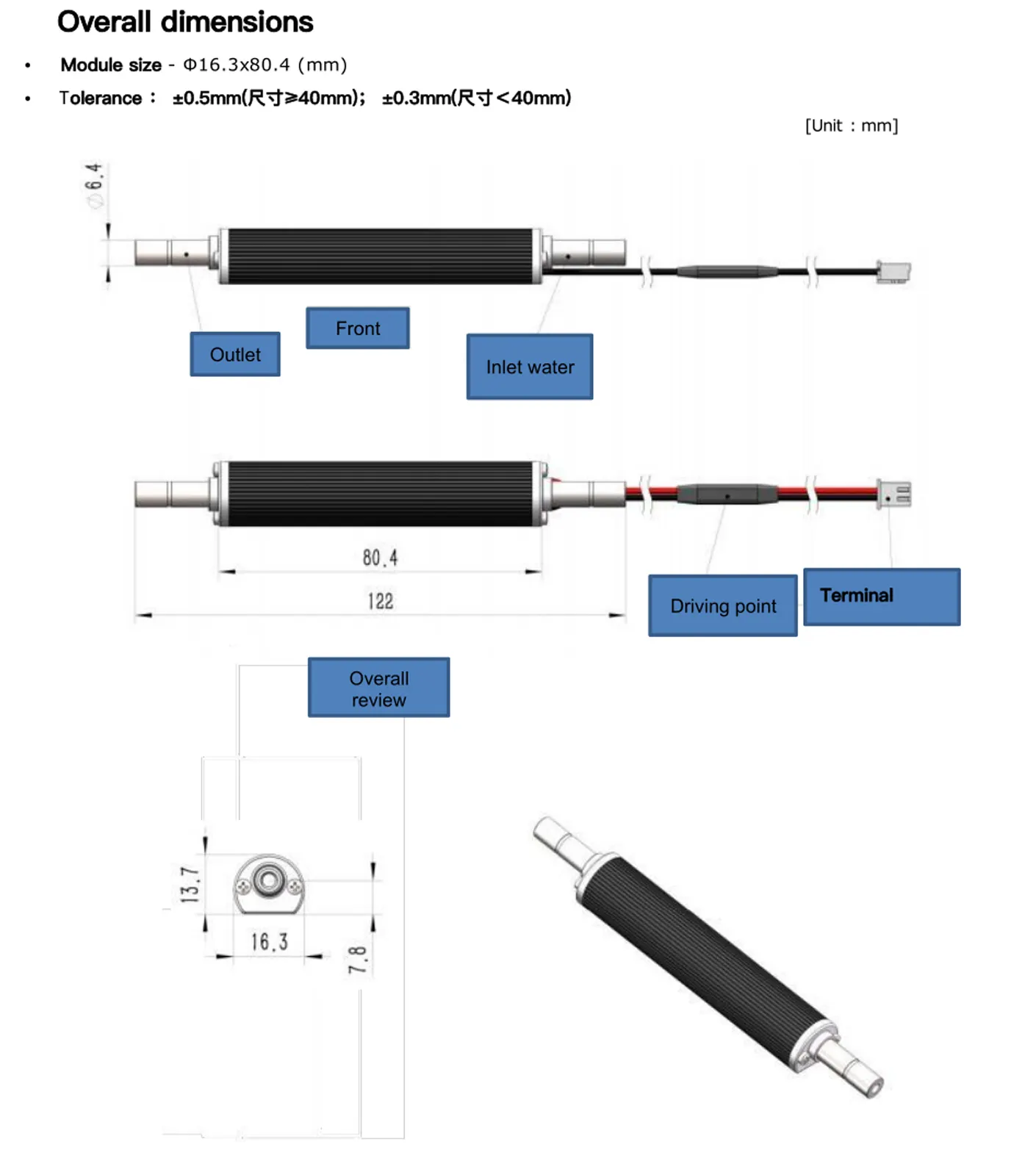

Size

Φ16.3x80.4 (mm)

Net weight

28g±3g

Applicable water temperature

4~40℃

-

Storage temperature

-40℃-85℃

-

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
