Sterilization Svc 365nm Uv Led 40~150mW by Tianhui

Company Advantages

· Tianhui svc 365nm uv led is produced in a safe and clean environment.

· This product is tested by our quality controllers to assure its high performance at clients.

· Ensuring good service in Tianhui plays an important role in the development of it.

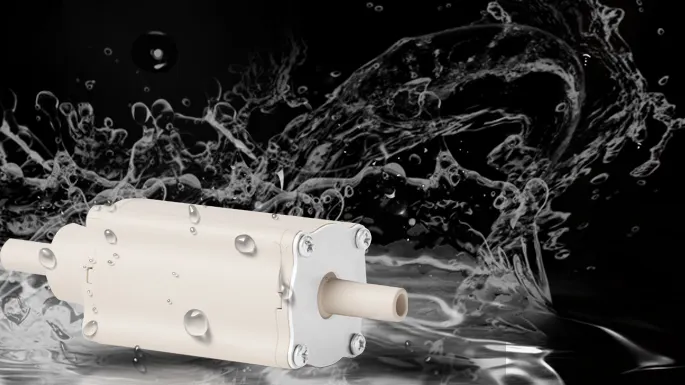

TH-UVC-PA04 is a overcuttent UVC LED water disinfection module. The circuit's driver board is built into the module's interior to save space. The UVC LED module relies on water flow to dissipate heat and comes with a water flow switch to prevent burnout due to water cutoff. The module is suitable for installation in the middle section of the water circuit.

The UVC LEDs used have a wavelength range of 270-280nm UV LED and have excellent and efficient sterilization effects. The internal UVC high reflectivity cavity can effectively improve the utilization of UV light, thus significantly enhancing the sterilization effect. With extensive industry experience, our 270nm 275nm 280nm UVC LED module for flowing water UV disinfection water treatment guarantees effective and reliable sterilization.

UVC sterilization is an effective treatment for the diverse microorganisms that exist in the environment. Use UV light for sterilizing water, use UV light for sterilizing water, enjoy safe, pure, and germ-free water every time. Immediate investment and health!



Application

这是一段描述

Drinking machine	Ice machine	Air humidifier
Air purifier	Pet water dispenser	Dishwasher



Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UVC-DEM04	-
Rated voltage	DC 12V	Customizable
UVC radiation flux	≥5mW	-
UVC Wavelength	270-280nm uv led	-
Input current	50±10mA	According to the lamp bead selection
Input power	0.6W	-
Waterproof grade	IP67	-
Wire rod	200±10mm	Customizable
Terminals	XHB2.54，2Pin，yellow	Customizable
Lamp bead life	>10,000 hours	-
Dielectric Strength	DC500 V,1min@10mA, Leakage current
Working temperature	-25℃-40℃	-
Storage temperature	-40℃-85℃	-



Remarks

这是一段描述

Peak wavelength（ λ p) The measurement tolerance is ±3nm.

Radiant flux（ Φ e) Measurement tolerance±10%.

The measurement tolerance of forward voltage (Vf) is±3%.

Overall dimension

这是一段描述



Packaging method (reference standard data)

这是一段描述

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Features

· Since its establishment, Zhuhai Tianhui Electronic Co., Ltd. has continuously produced and updated svc 365nm uv led and other products to meet the needs of different markets.

· The factory is lawfully granted with a production certificate. This means that what the factory produces are safe and non-harmful to people. The factory will do its best to implement national industrial policies to protect the rights and interests of the majority of consumers to the utmost extent. We have established a large customer base. Our customers have been cooperating with us for many years. What they appreciate are our top quality products and reliable assistance to make all kinds of modifications according to their specific requirements. Lawfull granted with a production certificate, the company is allowed to manufacture and sell products to the public by the China Administration for Industry and Commerce. This certificate is directly related to public safety, human health, and life and property security, which means customers can be assured that what we produce and sell are safe and secure.

· Zhuhai Tianhui Electronic Co., Ltd. will actively expand and extend the industrial chain. Check now!

Product Comparison

Compared with other products in the same category, svc 365nm uv led has the following competitive advantages.
