OEM Uv Led 300nm Tianhui 6.5V

Product details of the uv led 300nm

Product Description

Tianhui has been equipped with professional team to design more attractive uv led 300nm. This product is presented to customers after proper inspections. The R & D investment on uv led 300nm has occupied certain proportion in Zhuhai Tianhui Electronic Co., Ltd..

The Seoul Viosys 305nm 310nm 315nm LED provides effective air and water sterilization. With advanced deep ultraviolet technology, it ensures thorough and efficient purification, safeguarding against harmful bacteria and viruses.

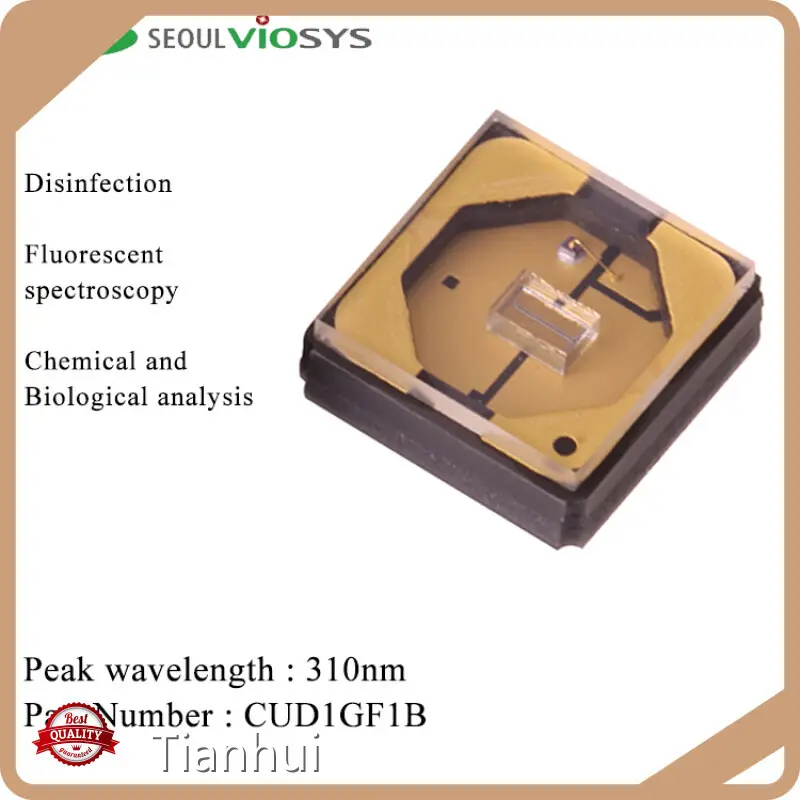

Seoul Viosys CUD1GF1B is a deep ultraviolet light emitting diode with peak emission wavelengths from 305nm to 315nm.

The UVC LED chip is sealed in ceramic packages including an optical transparent window.

It incorporates state of the art SMD design and low thermal resistance. This advanced technology ensures effective sterilization for air and water.



CUD1GF1B is designed for air and water sterilization and tools including chemical and biological analysis in that spectral range. Experience the power of clean and safe environments with this reliable and high-performance product.



Application

这是一段描述

Air And Water Sterilization

Fluorescent Spectroscopy

Chemical and Biological Analysis



Parameters

这是一段描述

Item	Specifications
Model	CUD1GF1B
Rated voltage	5~7V
UVC radiation flux	6mW
UVC Wavelength	305nm led~315nm led
Input current	100mA
Input power	0.5~0.7W
Storage temperature	-40℃-100℃

Remarks

这是一段描述

• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.

• Radiation flux（ Φ e) Measurement tolerance ± 10%.

• The measurement tolerance of forward voltage (VF) is ± 3%.



Packaging method (reference standard data)

这是一段描述



Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Feature

• During the development for years, Tianhui has established a good reputation in the industry.
• Tianhui has a sound organizational structure, an excellent incentive mechanism, and a comfortable working environment. All this attracts a group of quality talents to form a mature development team.
• Tianhui is located in a position that provides easy traffic condition, complete functional facilities and the superior comprehensive surroundings. All that creates advantages for the efficient transportation.
• Our company's products are sold well in the domestic market. And they are also exported to Southeast Asia, Central Asia, Europe and the United States as well as other countries and regions, gaining affection from overseas customers.
Dear customer, if you are interested in our UV LED Module, UV LED System, UV LED Diode, please call us. Tianhui will provide you with quality and professional services!
