Multiple use options
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
New 270 Nm Led 270 Nm Led Company
UV Wavelength:
365~375nm
UV radiation flux:
40~60mW / 80~100mW
Minimum order quantity:
10
Color:
UV
Brand:
Tianhui
Company Advantages
· 270 nm led is independently designed by Tianhui.
· Professional testing allows 270 nm led to be optimal.
· In the industry, the domestic market share of Zhuhai Tianhui Electronic Co., Ltd. has always topped the list.

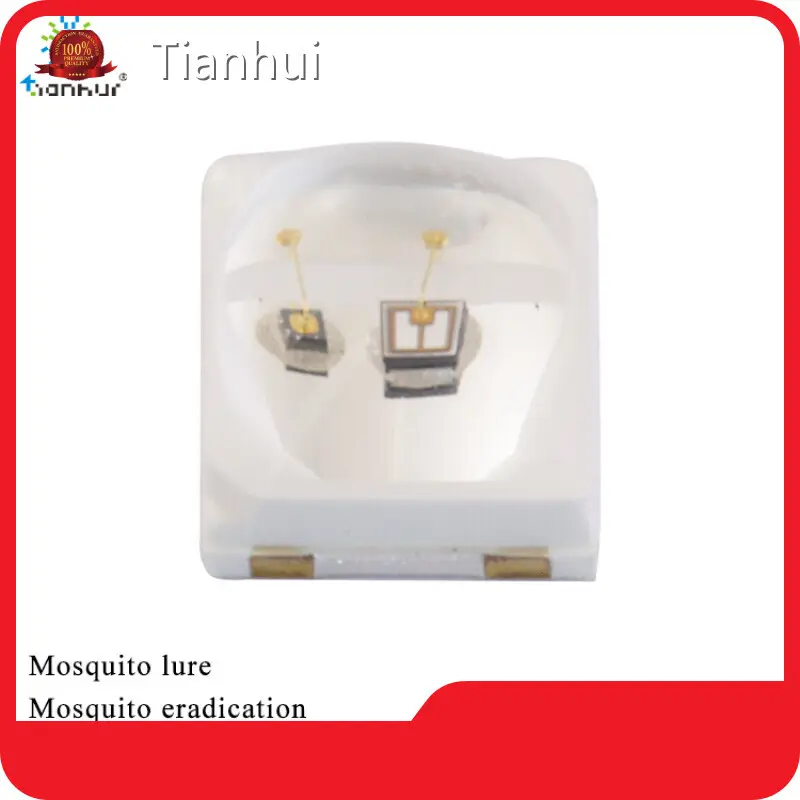

UV LED 365~375nm UVA LED Beads Series for Mosquito Lure Mosquito Eradication
| Items | Condition | Min. | Typ. | Max. | Unit |
| Forward Current | - | - | 60 | - | mA |
| Forward Voltage | IF=60mA | 3 | 3.5 | 4 | V |
| Radiant Flux | IF=60mA | 40 | - | 60 | mW |
| Peak Wavelength | IF=60mA | 365 | - | 375 | nm |
| Viewing Angle | IF=60mA | - | 120 | - | deg. |
| Spectrum Half Width | IF=60mA | - | 12 | - | nm |
| Themal Resistance | IF=60mA | - | 8.4 | - | ℃/W |
| Items | Condition | Min. | Typ. | Max. | Unit |
| Forward Current | - | - | 100 | - | mA |
| Forward Voltage | IF=100mA | 3 | 3.6 | 4 | V |
| Radiant Flux | IF=100mA | 80 | - | 100 | mW |
| Peak Wavelength | IF=100mA | 365 | - | 375 | nm |
| Viewing Angle | IF=100mA | - | 120 | - | deg. |
| Spectrum Half Width | IF=100mA | - | 12 | - | nm |
| Themal Resistance | IF=100mA | - | 8.4 | - | ℃/W |
UVA ultraviolet rays conform to the phototaxis response curve of insects and can be used to lure insects
The mosquito trap lamp emits blue light. The mosquito trap lamp uses a blue purple tube, and the light emitted by the tube belongs to the UVA in ultraviolet light, with the wavelength of the light being the key, ranging from 355 to 370 nanometers. Suggest choosing a stronger luminosity
apply
Do not place them in the same place for a long time. It is best to place the mosquito trap lamp above the knee height. Usually, a small stool can be used, but it should not exceed 180 centimeters, as this is the range where mosquitoes often fly, and a secluded place is the best choice. It is best to change the placement location frequently, and hidden corners and under the table are the best places.
Due to mosquitoes' preference for acidic substances, adding a little water and vinegar to the tray of the mosquito trap can increase its effectiveness. Using skincare products such as sheep oil and Chevrolet can also increase mosquito attraction.
Regularly clean mosquito traps and keep them clean, and mosquitoes usually do not approach their companions' bodies when they see them.
When using mosquito traps, other indoor light sources should be turned off. Because mosquitoes are disturbed, they cannot feel the light source of the mosquito trap lamp, greatly reducing the mosquito catching effect. Similarly, using mosquito traps during the day may result in poorer results.
Bedroom
Kitchen
Living Room
Garden/Deck
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Features
· Zhuhai Tianhui Electronic Co., Ltd. is regarded as one of the preeminent enterprise in manufacturing 270 nm led.
· Our workshop has a clear and well-defined production management system. This system has benefited us in many aspects, such as assurance on the quality of the raw materials, early identification of problems that might occur, and avoidance of additional production costs.
· As a responsible manufacturing company, we take a close interest in environmental projects in the communities where we're based. We have taken a lead in encouraging people to recycle and choose reusable materials such as chopsticks and mugs.
Application of the Product
Tianhui's 270 nm led can be used in many industries.
In addition to providing high-quality products, we also provide effective solutions based on the actual conditions and the needs of different customers.
