Description
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Led Uv 365nm 10w Tianhui,1A
UV Wavelength:
365-420nm
UV radiation flux:
0.9~1.1W
Input current:
1A
Brand:
Seoul Viosys, SVC
Model:
CUN（X）GF1A

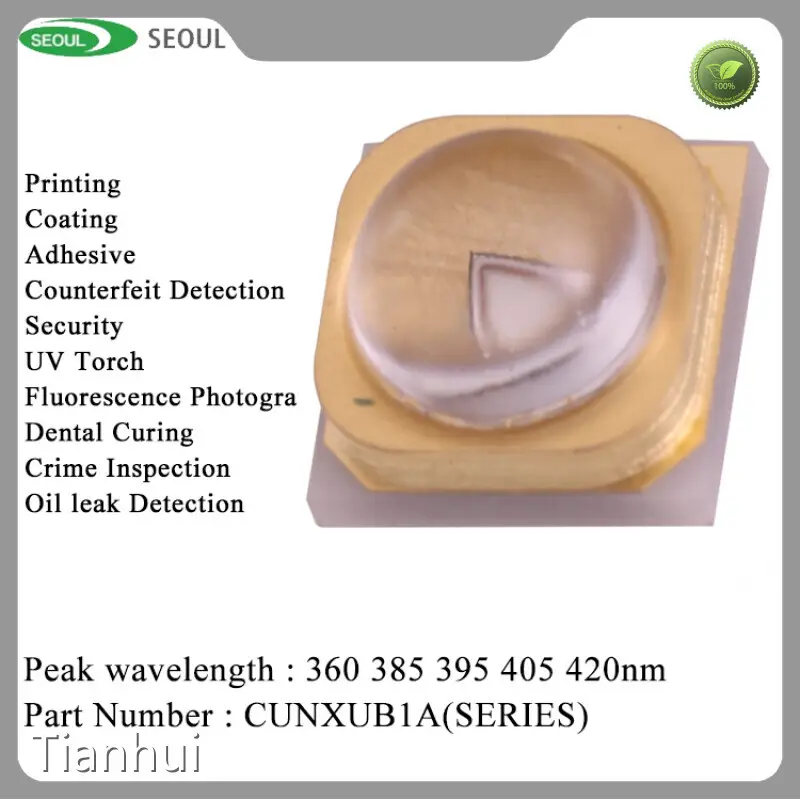

High power UV LED series designed for high current operation, narrow radiation angles and high power output applications.
It combines advanced SMD design and low thermal resistance materials.
The CU3737 is an ideal UV light source for curing, printing and inspection applications.
Application
| Printing | Dental Curing | UV Curing |
| Crime Inspection | Oil Leak Detection | Fluorescence Photography |
Parameters
Item | Specifications |
Model | CUN(x)UB1A series |
Forward Voltage | 360~370nm:3.7V 380~410nm:3.5V 415~425nm:3.6V |
UVA radiation flux | 360~370nm:0.9W 380~410nm:1.1W 415~425nm:1.0W |
UVA Wavelength | 360~370nm 380~410nm 415~425nm |
Input current | 700mA |
Storage temperature | -40℃~100℃ |
Remarks
• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.
• Radiation flux（ Φ e) Measurement tolerance ± 10%.
• The measurement tolerance of forward voltage (VF) is ± 3%.
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Advantages
· led uv 365nm 10w wins good reputation for its selected materials and well-made features.
· The product is durable and functions very well during its long service life.
· The product brings long-term sustainable benefits to customers due to its incomparable growth prospects.
Company Features
· Zhuhai Tianhui Electronic Co., Ltd. has been the preferred choice in the Chinese market. We stand out for providing high-quality led uv 365nm 10w.
· We possess an advanced and well-established infrastructure. It is equipped with all the necessary facilities needed for better manufacture and supply of products and services.
· Zhuhai Tianhui Electronic Co., Ltd. is dedicated to provide customers with cost-effective products and convenient technical support. Inquire now!
Application of the Product
Tianhui's led uv 365nm 10w can be used in a variety of industries.
Tianhui insists on providing customers with one-stop and complete solution from the customer's perspective.
