Description
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Led 400nm 10 1.85W/2.15W/2.1W/2.05W
UV radiation flux:
1.85W/2.15W/2.1W/2.05W
Minimum order quantity:
10
Input Voltage:
3.5V/3.6V/3.7V
Input current:
1A
Model:
CUN(x)6A1G

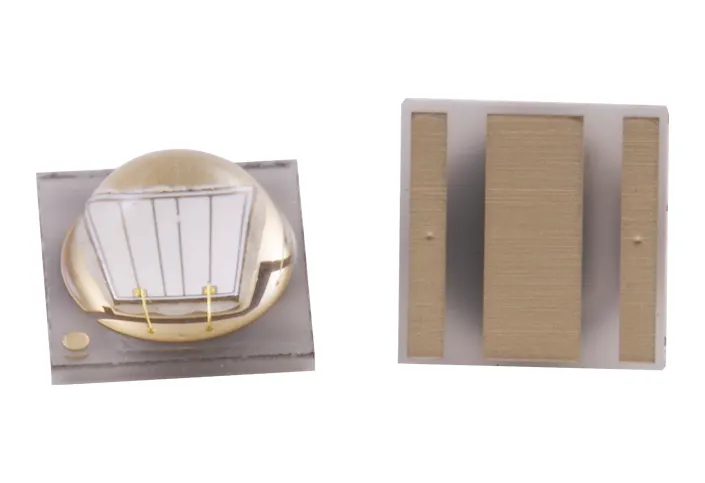

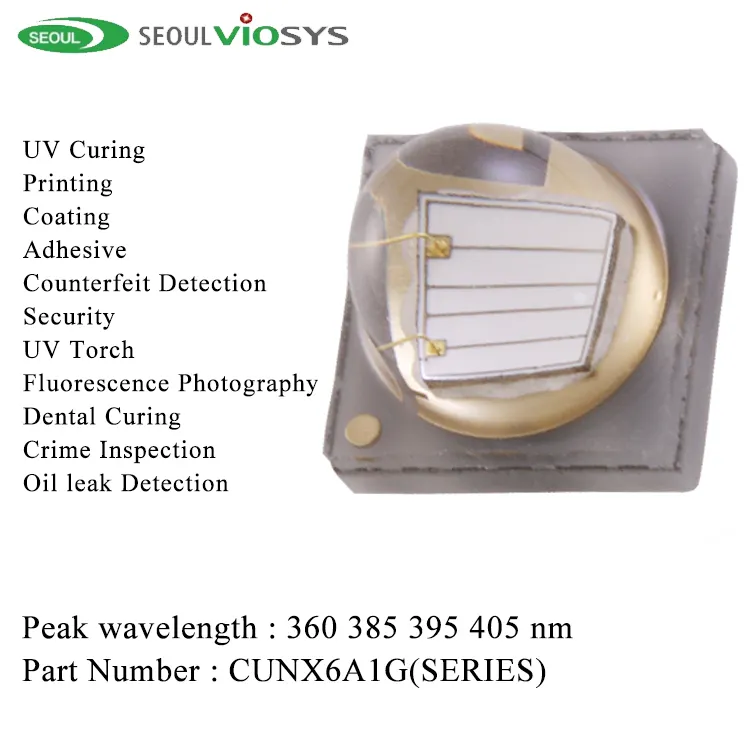

Product details of the led 400nm
Product Overview
led 400nm is checked against customers' chosen specifications to meet a range of requirements including passing international standards of the destination market. The product has undergone strict tests according to international quality standards. Zhuhai Tianhui Electronic Co., Ltd. has professional front-line workers who have dozen of year's working experience to meet different clients' requirement.
Product Introduction
Our led 400nm is more competitive than similar products, as shown in the following aspects.
The High Power UV LED chip series is designed for high current operation and high power output applications.
It incorporates an advanced SMD design.
The Z5 NUV UV LED chip is the ideal UV light source for curing, UV Led printing and inspection applications. Ideal UV light source for inspection applications.
Application
| UV LED Printing | Dental Curing | UV LED Curing |
| Crime Inspection | Oil Leak Detection | Fluorescence Photography |
Parameters
Item | Specifications |
Model | Cun(x)6A1G Series |
Rated voltage | 3.5-3.8V |
UVA radiation flux | 1.85-2.1W |
UVA Wavelength | 360~370nm 380~390nm 390~400nm 400~410nm |
Input current | 1A |
Input power | 1760-2360mW |
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Introduction
Since establishment, Zhuhai Tianhui Electronic Co., Ltd. has been a leader in the led 400nm industry. Zhuhai Tianhui Electronic Co., Ltd. has the strong technical strength and ability of researching and developing led 400nm by ourselves. All products are supplied with reasonable prices and high quality. Ask online!
If you are interested, please contact customer service staff for consultation!
