Led 365nm Uv Tianhui Brand 0.5~0.7W 6mW

Company Advantages

· We manufacture Tianhui led 365nm uv using high-grade materials sourced from reliable vendors.

· This product is ensured by our QC team who conducts a stringent quality check process.

· The product promotes relief of worker fatigue and stress because it makes work easier and requires less skill intervention.

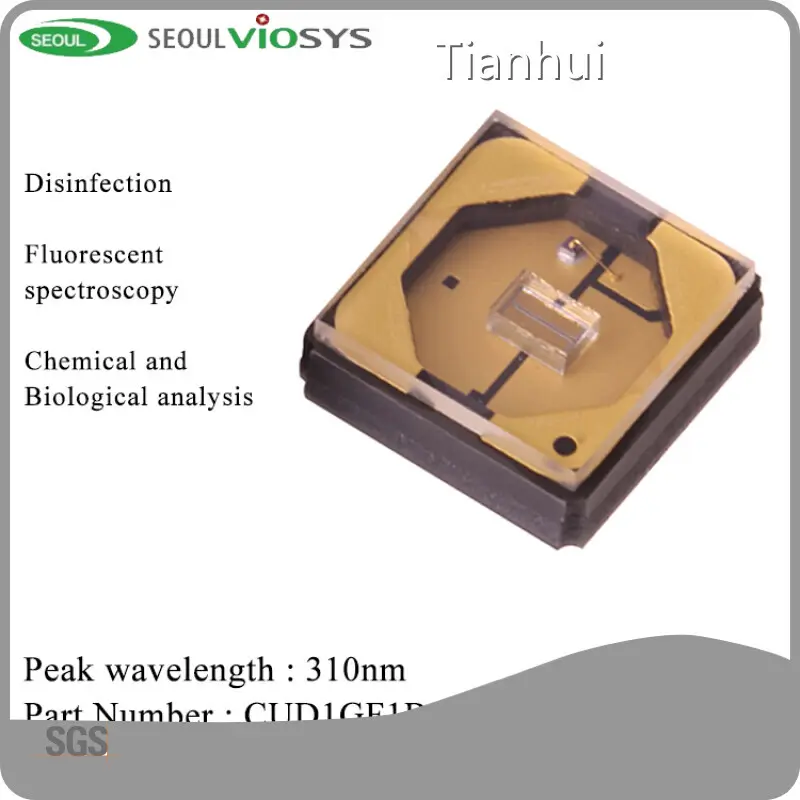

CUD1GF1B is a deep ultraviolet light emitting diode with peak emission wavelengths from 305nm to 315nm.

The LED is sealed in Ceramic packages including an optical transparent window.

It incorporates state of the art SMD design and low thermal resistance.

CUD1GF1B is designed for air and water sterilization and tools including chemical and biological analysis in that spectral range.

Application

这是一段描述

Disinfection

Fluorescent Spectroscopy

Chemical and Biological Analysis

Parameters

这是一段描述

Item	Specifications
Model	CUD1GF1B
Rated voltage	5~7V
UVC radiation flux	6mW
UVC Wavelength	304~315nm
Input current	100mA
Input power	0.5~0.7W
Storage temperature	-40℃-100℃

Remarks

这是一段描述

• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.

• Radiation flux（ Φ e) Measurement tolerance ± 10%.

• The measurement tolerance of forward voltage (VF) is ± 3%.

Packaging method (reference standard data)

这是一段描述

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Features

· Zhuhai Tianhui Electronic Co., Ltd. concentrates on the research, production and sell of high performance led 365nm uv.

· Zhuhai Tianhui Electronic Co., Ltd. has realized independent innovation on led 365nm uv. Zhuhai Tianhui Electronic Co., Ltd. upgrades itself through the extensive deployment of advanced technologies and applications.

· Customer satisfaction is the business goal of Zhuhai Tianhui Electronic Co., Ltd.. Contact us!

Product Details

In order to know led 365nm uv better, Tianhui will show you the specific details in the following section.

Application of the Product

Tianhui's led 365nm uv has been widely used in many industries.

We work hard to develop solutions that best meet the needs of our customers based on their actual situation, so as to help each customer succeed.

Product Comparison

Tianhui's led 365nm uv has better performances, as shown below.

Enterprise Advantages

Our company works closely with a number of major raw material suppliers and advanced units at home and abroad to establish a benign commercial supply chain, which provides a reassurance for our company in terms of raw materials and technology.

Tianhui insists on the principle to be active, prompt, and thoughtful. We are dedicated to providing professional and efficient services for customers.

We insist on keeping up with the pace of the times, and advocating the business philosophy of 'honest and people-oriented'.

Our company was founded in After the continuous development for years, we have broken through various difficulties, accumulated rich experience and achieved excellent results. Now, we take a high position in the industry.

Tianhui has diversified sales channels, including traditional supermarkets, regular chain stores, and E-commerce. This helps to expand the sales range continuously.
